GO Ball Valves ANSI 150# 3 Way BLS3FA

SKU: BLS3L4FA-L

GO Ball Valves ANSI 150# 3 Way BLS3FA

$356.00 AUD
$356.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Size
Body Material

Other payment options

View full details
GO Ball Valves ANSI 150# 3 Way BLS3FA - GO Industrial - BLS3L4FA - L

GO Ball Valves ANSI 150# 3 Way BLS3FA

From $253.00 AUD
From $253.00 AUD
Save $0
Sold out

Details

Typical applications include water treatment, chemical, marine, petrochemical and general industry.

GO Ball Valves ANSI 150# 3 Way BLS3FA

Overview

High performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

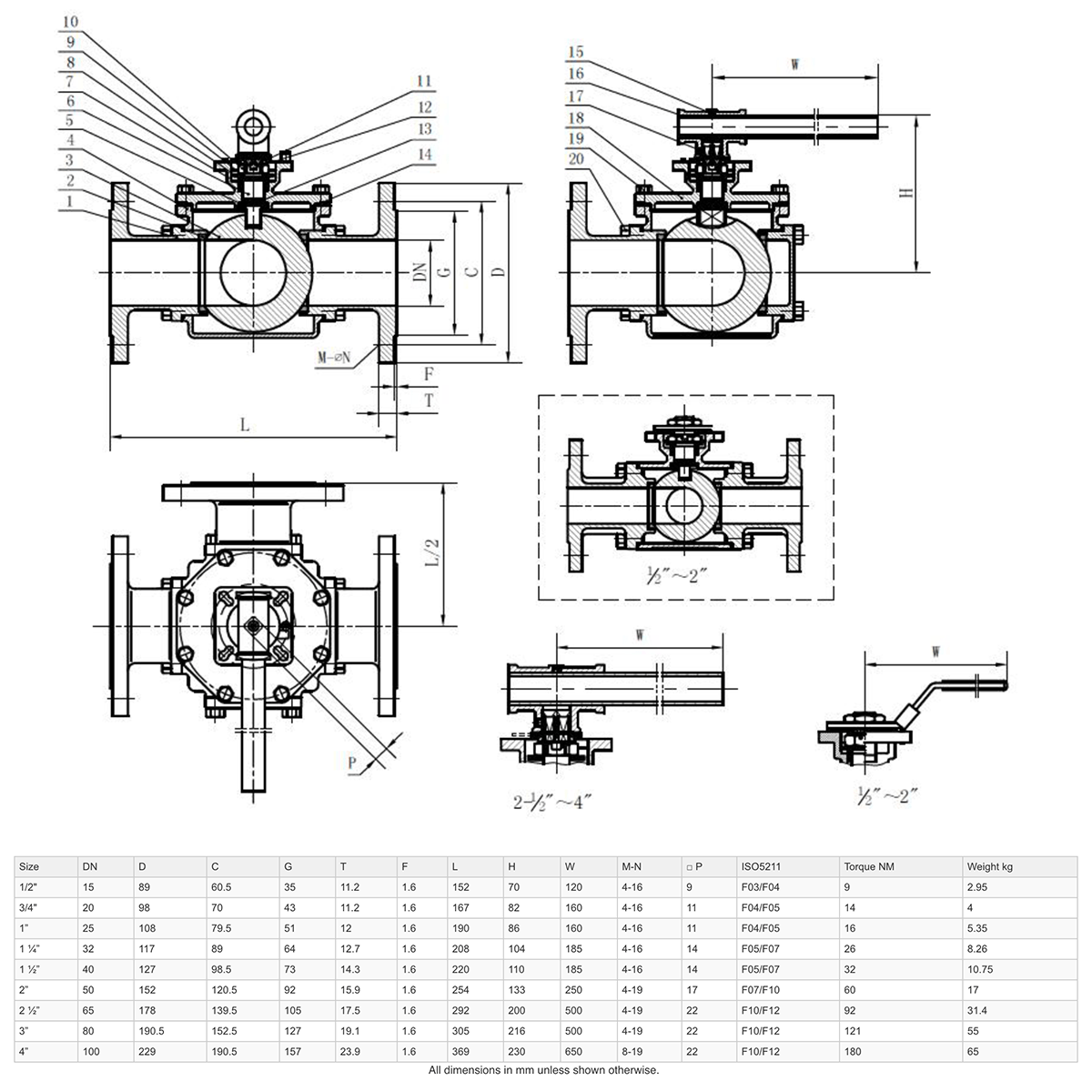

Specifications

316 SS 3 way, L port ball valve, with Lever Operation.ANSI 150 Flange, RTFE seat, FKM seals, live loaded packing150 lb pressure range, media temp -20°C to 180°C.ISO5211 Mounting Pad F03/F04, 9mm sq.drive.

  • Size 15mm to 100mm
  • Body 316 Stainless Steel
  • Seat RPTFE
  • Pressure 20 BAR @ ambient
  • Temperature -10°C to 180°C
  • Actuation Lever
    • Model DN (mm) L port CV T port CV (Through) T port CV (Branch) Media Pressure Media Temperature
    BLS3L4FA-L-RT 15 6 10 5 Vacuum to 20 BAR 20°C to 180°C
    BLS3L5FA-L-RT 20 15 21 13 Vacuum to 20 BAR 20°C to 180°C
    BLS3L6FA-L-RT 25 27 36 22 Vacuum to 20 BAR 20°C to 180°C
    BLS3L7FA-L-RT 32 28 58 25 Vacuum to 20 BAR 20°C to 180°C
    BLS3L8FA-L-RT 40 65 90 55 Vacuum to 20 BAR 20°C to 180°C
    BLS3L9FA-L-RT 50 120 175 100 Vacuum to 20 BAR 20°C to 180°C
    BLS3L10FA-L-RT 65 175 235 149 Vacuum to 20 BAR 20°C to 180°C
    BLS3L11FA-L-RT 80 300 450 270 Vacuum to 20 BAR 20°C to 180°C
    BLS3L12FA-L-RT 100 353 800 475 Vacuum to 20 BAR 20°C to 180°C
