GO Ball Valve ANSI 150# 3 Way 1/2" to 4" BLS3FA Range
SKU: BLS3L4FA-L
$356

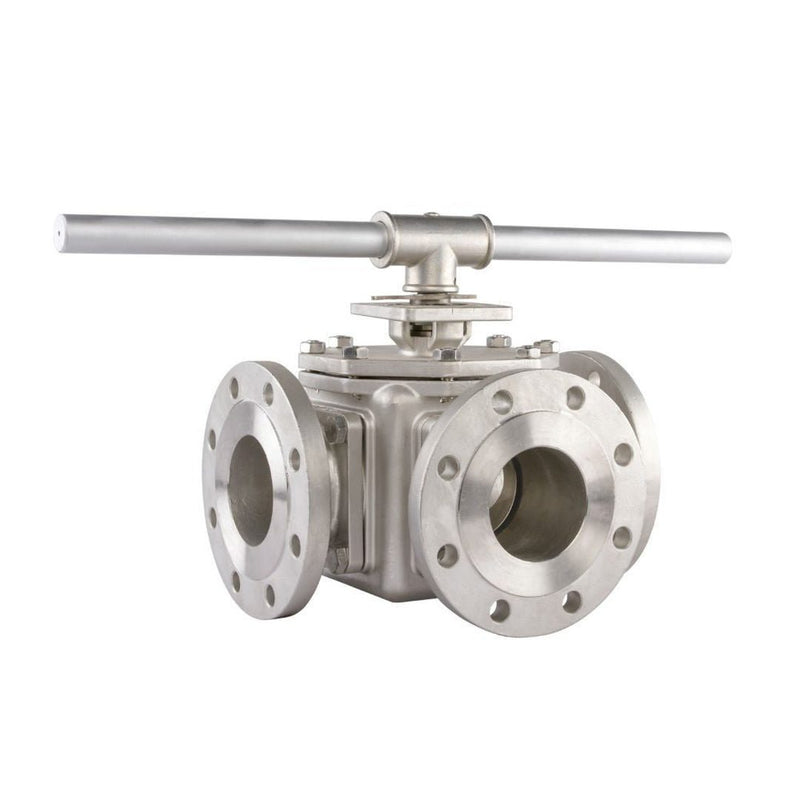

GO Ball Valve ANSI 150# 3 Way 1/2" to 4" BLS3FA Range
High performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C.
Typical applications include water treatment, chemical, marine, petrochemical and general industry.
- Size 15mm to 100mm
- Body 316 Stainless Steel
- Seat RPTFE
- Pressure 20 BAR @ ambient
- Temperature -10°C to 180°C
- Actuation Lever
316 SS 3 way, L port ball valve, with Lever Operation.ANSI 150 Flange, RTFE seat, FKM seals, live loaded packing150 lb pressure range, media temp -20°C to 180°C.ISO5211 Mounting Pad F03/F04, 9mm sq.drive.
| Model | DN (mm) | L port CV | T port CV (Through) | T port CV (Branch) | Media Pressure | Media Temperature |
|---|---|---|---|---|---|---|
| BLS3L4FA-L-RT | 15 | 6 | 10 | 5 | Vacuum to 20 BAR | 20°C to 180°C |
| BLS3L5FA-L-RT | 20 | 15 | 21 | 13 | Vacuum to 20 BAR | 20°C to 180°C |
| BLS3L6FA-L-RT | 25 | 27 | 36 | 22 | Vacuum to 20 BAR | 20°C to 180°C |
| BLS3L7FA-L-RT | 32 | 28 | 58 | 25 | Vacuum to 20 BAR | 20°C to 180°C |
| BLS3L8FA-L-RT | 40 | 65 | 90 | 55 | Vacuum to 20 BAR | 20°C to 180°C |
| BLS3L9FA-L-RT | 50 | 120 | 175 | 100 | Vacuum to 20 BAR | 20°C to 180°C |
| BLS3L10FA-L-RT | 65 | 175 | 235 | 149 | Vacuum to 20 BAR | 20°C to 180°C |
| BLS3L11FA-L-RT | 80 | 300 | 450 | 270 | Vacuum to 20 BAR | 20°C to 180°C |
| BLS3L12FA-L-RT | 100 | 353 | 800 | 475 | Vacuum to 20 BAR | 20°C to 180°C |
