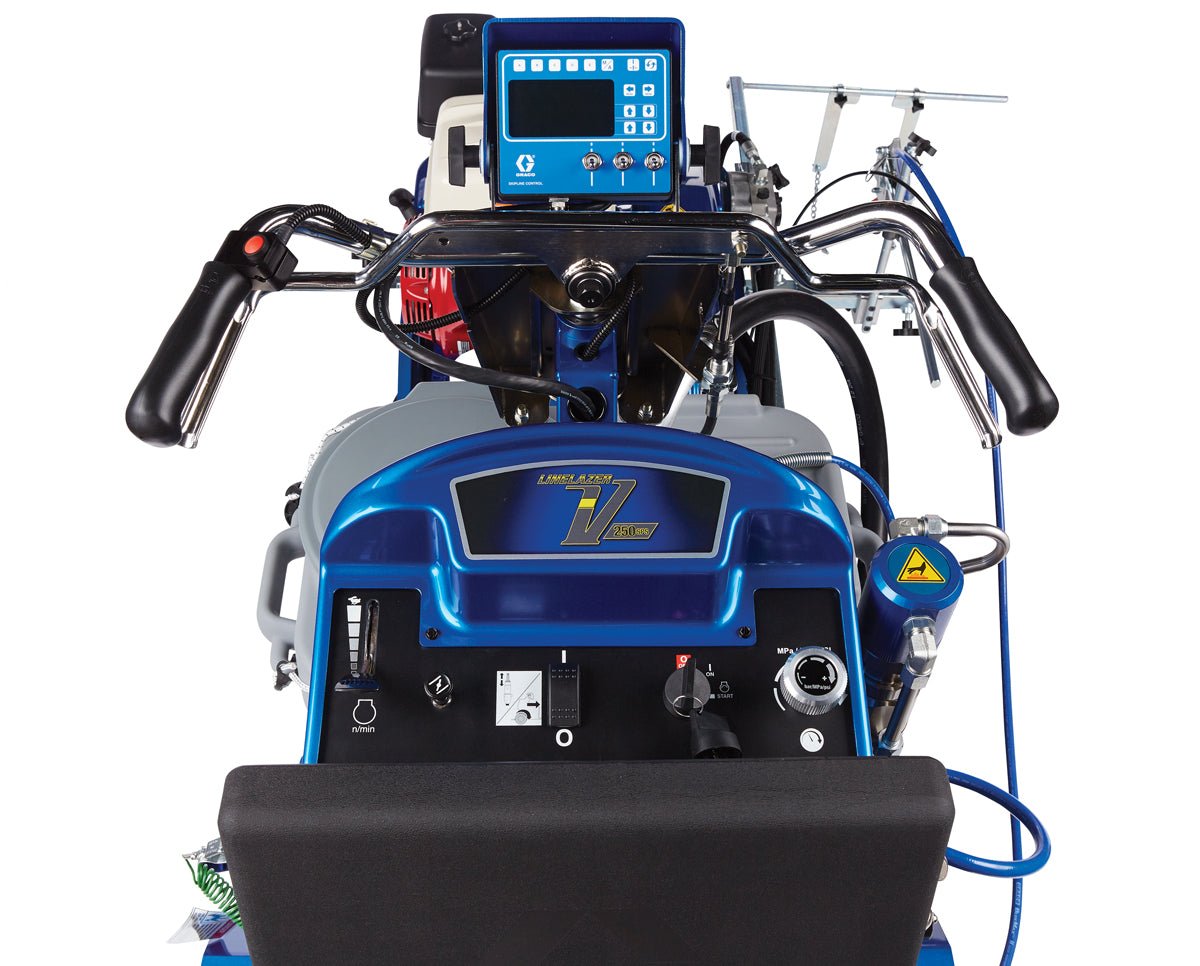

GRACO LineLazer V 250SPS Airless Line Marker Self Propelled Range

SKU: 17H467

$34,557

The Basics

With exclusive automatic paint guns and hydraulic power, the LineLazer V 250SPS HP Automatic Series is a self-propelled system that is ideal for large, heavy-duty line striping jobs including parking lots and road jobs.

The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

  • Self-Propelled Line Marking System
  • The LineLazer IV 250SPS is a stand-on line marking solution for improved visibility and razor sharp lines.
  • High performance striping with the exclusive automatic paint guns makes the LineLazer V 250SPS the preferred line marker for professional contractors who demand hydraulic power.
  • This line marker is ideal for large, heavy-duty line line marking jobs including parking lots and road jobs

HP Automatic Series Features:

  • Automatic Paint Gun System
    • Automatically Stripe Skip-Lines
    • Reduce operator fatigue — push button line production
    • Quality solenoid driven system
  • Remote Mount Control Box
    • Striping Information At-A-Glance
    • Simple to use and easy to see in all conditions
  • 25-Gallon Paint Hopper
    • Less Refilling
    • Extended striping time with large capacity hopper
  • Honda® GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • Electric Start
    • Fast starting
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
  • Front or Rear Gun Mount
    • Straighter long lines
    • Use up to six guns
  • Self-Centering Front Wheel
    • Simple operation
    • Foam-filled, three-wheel design for stability
  • Easy Handlebar Adjustment
  • Additional Features
    • Endurance Chromex Pump
    • High-Efficiency Hydraulic Motor
    • High-Capacity Cooling System
    • Easy Out Pump Filter
    • Flex Plus Guns

HP Reflective Series Includes All HP Automatic Series Features PLUS:

  • EZ Bead Pressurised System
    • Innovative bead tank with unmatched performance
    • Provides perfect bead embedment
    • Air valves to dial in starts and stops
    • Installed and ready to go
    • Dual Bead Tanks hold up to 240 lbs of beads (120 lbs each


COMPATIBLE SURFACESPavement, Turf
ENGINE BRANDHonda
ENGINE MODELGX390
FUEL TANK CAPACITY (GAL)1.4
FUEL TANK CAPACITY (L)5.3
GUN ACTIVATIONAutomatic
HOPPER VOLUME CAPACITY (GAL)25
HOPPER VOLUME CAPACITY (L)95
INCLUDESFlex Plus Gun (2), LineLazer RAC 5 321 Spray Tip (2), LineLazer RAC 5 425 Spray Tip (2), LineLazer RAC 5 627 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft (3.7 m) BlueMax II Airless Hose, 3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL 4 oz (118 mL)
MAXIMUM FLOW RATE (GPM)2.5
MAXIMUM FLOW RATE (L/MIN)9.5
MAXIMUM OPERATING SPEED (KM/H)16.1
MAXIMUM OPERATING SPEED (MPH)10
MAXIMUM SOUND PRESSURE LEVEL (DB(A))89.1
MAXIMUM SPEED (RPM)3600
MAXIMUM TIP SIZE (CM)0.0991
MAXIMUM TIP SIZE (IN)0.039
MAXIMUM TIP SIZE (MM)0.9906
MAXIMUM WORKING PRESSURE (BAR)227
MAXIMUM WORKING PRESSURE (KPA)2270
MAXIMUM WORKING PRESSURE (PSI)3300
MODELLineLazer V
NUMBER OF COLORSOne Color
NUMBER OF GUNS2
NUMBER OF HOPPERS1
NUMBER OF PUMPS1
OVERALL HEIGHT (CM)128.3
OVERALL HEIGHT (IN)50.5
OVERALL HEIGHT (MM)1282.7000
OVERALL LENGTH (CM)186.7
OVERALL LENGTH (IN)73.5
OVERALL LENGTH (MM)1866.9
OVERALL WIDTH (CM)83.8
OVERALL WIDTH (IN)33
OVERALL WIDTH (MM)838.2000
POWER RATING (HP)13
POWER RATING (KW)9.69
PUMP TYPEEndurance
SERIES250SPS
COMPATIBLE MATERIALRoad-Marking Paint
WEIGHT (KG)302
WEIGHT (LB)666
TYPESelf-Propelled Line Striper
POWER SOURCEGas Hydraulic
