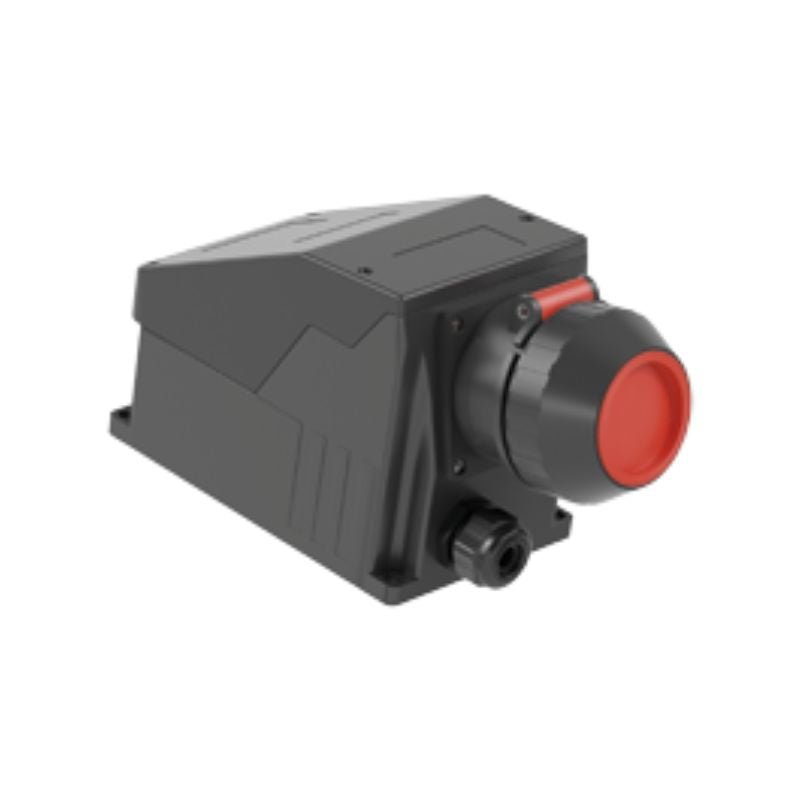

PEPPERL+FUCHS PS16-440600 4 Pole in Red Socket 16A
SKU: PF-70125592PEPPERL+FUCHS PS16-440600 4 Pole in Red Socket 16A
Regular price
$1,367.00 AUD
Sale price
$1,367.00 AUD
Regular price
Unit price
per
Inclusive of GST.
Shipping calculated at checkout.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
Other payment options
Pepperl+Fuchs PS16-440600 4 Pole in Red Socket 16A
Overview
- Ex de and Ex t certified
- Glass-fiber reinforced polyester (GRP) enclosure
- Full equipment certified
- Installation in Zone 1, Zone 2, Zone 21 and Zone 22
- Degree of protection IP66
- Degree of protection ensured by means of bayonet catch
- Low insertion force
- Self-cleaning lamellar contacts
Specifications
| Electrical specifications | ||
|---|---|---|
| Operating voltage | 380 ... 415 V | |
| Operating current | 16 A max. | |
| Terminal capacity | ||
| Main terminals capacity | 2.5 mm2 | |
| Main terminals torque | 2.5 Nm | |
| Supply frequency | 50/60 Hz | |
| Function | socket | |
| Usage category | AC3: 415 V AC - 16 A | |
| Number of poles | 4 | |
| Color coding according to IEC 60309 | red | |
| Protective contact position according to IEC 60309 | 6 h | |
| Mechanical specifications | ||
| Cable type | non-armored cables | |
| Cover fixing | ||
| Screws | M4 | |
| Number | 4 | |
| Tightening torque | 2.5 Nm | |
| Degree of protection | IP66 | |
| Cable entry | ||
| Number of cable entries | 2x M25 1x Cable gland , 1x Stopping Plug |
|
| Cable entry face B | ||
| M25 clamping range | 8 ... 17 mm | |
| Material | ||
| Housing | carbon loaded, antistatic glass-fiber reinforced polyester (GRP) | |
| Finish | inherent color black | |
| Mass | 1.2 kg | |
| Dimensions | ||
| External dimension (A) | 176 mm | |
| External dimension (B) | 123 mm | |
| External dimension (C) | 147 mm | |
| Mounting holes distance (G) | 163 mm | |
| Mounting holes distance (H) | 106 mm | |
| Mounting holes diameter (J) | 6 mm | |
| Maximum external dimension (K) | 241 mm | |
