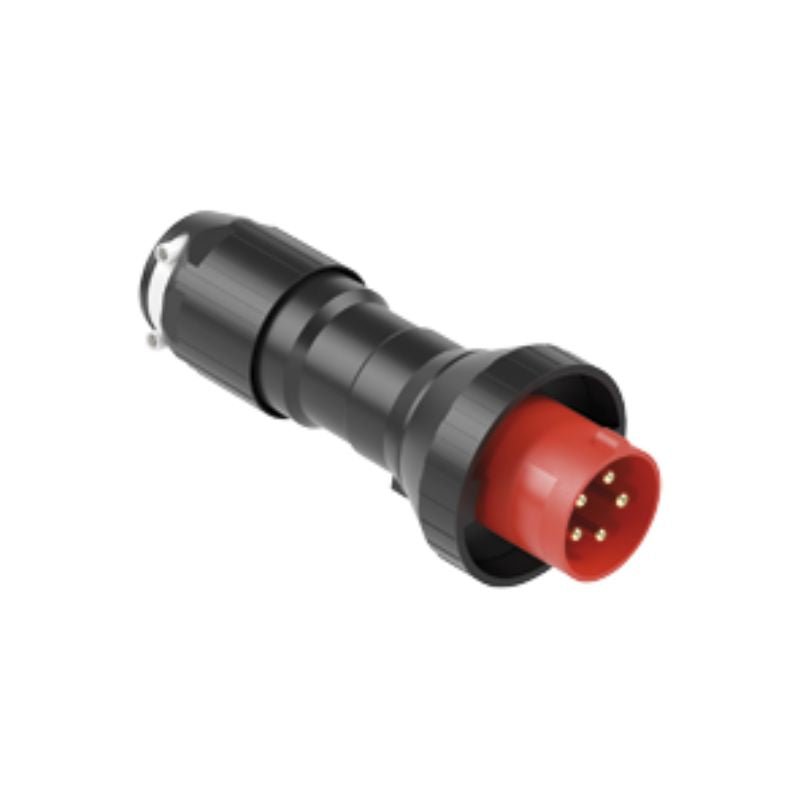

Pepperl+Fuchs Socket PS32-740600 Plug 32A, 4 pole in Red
  • Pepperl+Fuchs Socket PS32-740600 Plug 32A, 4 pole in Red
1 1

PEPPERL+FUCHS PS32-740600 4 Pole in Red Socket Plug 32A

SKU: PF-70125603

PEPPERL+FUCHS PS32-740600 4 Pole in Red Socket Plug 32A

$513.00 AUD
$513.00 AUD
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

Pepperl+Fuchs PS32-740600 4 Pole in Red Socket Plug 32A

Overview

  • Ex de and Ex t certified
  • Polyamide
  • Full equipment certified
  • Installation in Zone 1, Zone 2, Zone 21 and Zone 22
  • Degree of protection IP66
  • Degree of protection ensured when plugged into socket and secured by means of bayonet catch
  • Low insertion force
  • GO Manual Pepperl Fuchs Socket PS32-740600 Plug 32A 4 pole in Red
  • GO Data Sheet Pepperl Fuchs Socket PS32-740600 Plug 32A 4 pole in Red
  • GO Certificates Declaration Pepperl Fuchs Socket PS32-740600 Plug 32A 4 pole in Red 1
  • GO Certificates Declaration Pepperl Fuchs Socket PS32-740600 Plug 32A 4 pole in Red 2
  • GO Certificates Declaration Pepperl Fuchs Socket PS32-740600 Plug 32A 4 pole in Red 3

Specifications

Electrical specifications
Operating voltage 380 ... 415 V
Operating current 32 A max.
Terminal capacity
Main terminals capacity 6 mm2
Main terminals torque 0.8 Nm
Supply frequency 50/60 Hz
Function plug
Usage category AC3: 415 V AC - 32 A
Number of poles 4
Color coding according to IEC 60309 red
Protective contact position according to IEC 60309 6 h
Mechanical specifications
Cable type non-armored cables
Clamping range (D) 10 ... 28 mm
Degree of protection IP66
Material
Housing Polyamide (PA)
Finish inherent color black
Mass 0.7 kg
Dimensions
Diameter (D) 101 mm
Total length (L) 232 mm
