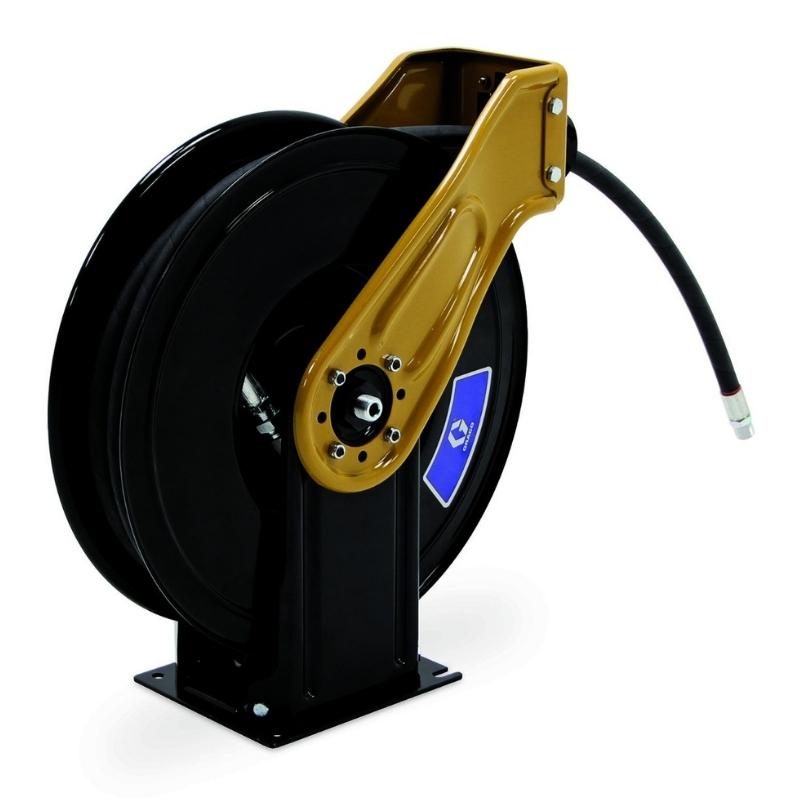

GRACO XDX 20 Hose Reels 15m 3/8" for Grease

SKU: XDH55A

GRACO XDX 20 Hose Reels 15m 3/8" for Grease

$2,490.00 AUD
$2,490.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Arm Color

Other payment options

View full details
GRACO XDX 20 Hose Reels 15m 3/8

GRACO XDX 20 Hose Reels 15m 3/8" for Grease

$2,490.00 AUD
$2,490.00 AUD
Save $0
Sold out

Details

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

Typical Applications:

  • Heavy-duty truck dealers
  • Fleet maintenance
  • Mining maintenance
  • Public works garage
  • Construction vehicle maintenance
  • Heavy-duty mobile service trucks
  • Mining
  • Lube trucks

Compatible For:

  • Grease

Features

  • Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)
  • Durable Finish - Baked-on enamel finish protects reel from corrosion
  • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications

    • Graco XDX 20 Hose Reels 15m 3/8" for Grease

    Overview

    Graco’s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • GO Manual Graco SDX XDX Hose Reels 3A8626EN-D
    • GO Data Sheet Graco XDX Series Hose Reels Data Sheet

    Specifications

    COLOR White, Blue Metallic, Black, Yellow
    HOSE INSIDE DIAMETER (IN) 3/8
    HOSE INSIDE DIAMETER (MM) 9.525
    HOSE LENGTH (FT) 50
    HOSE LENGTH (M) 15
    INLET SIZE (IN) 1/2
    INLET SIZE (MM) 12.7
    INLET THREAD TYPE NPSM
    MAXIMUM TEMPERATURE (°C) 93
    MAXIMUM TEMPERATURE (°F) 200
    MAXIMUM WORKING PRESSURE (PSI) 4800
    MINIMUM TEMPERATURE (°C) -40
    MINIMUM TEMPERATURE (°F) -40
    MOUNT LOCATION Truck Mount, Bench Mount
    OUTLET SIZE (IN) 1/4
    OUTLET SIZE (MM) 6.35
    OVERALL HEIGHT (IN) 25.2
    OVERALL HEIGHT (MM) 640
    OVERALL LENGTH (IN) 21
    OVERALL LENGTH (MM) 533
    OVERALL WIDTH (IN) 7.5
    OVERALL WIDTH (MM) 191
    SERIES 20
    WETTED PARTS Zinc-Plated Steel, Polyurethane, Steel
    APPLICATION Grease
    TYPE Spring-Rewind Reel
    RECOMMENDED ENVIRONMENT Indoor, Outdoor
    FRAME TYPE Dual Pedestal
    REEL THREAD TYPE NPT
    INLET THREAD GENDER Male
    OUTLET THREAD GENDER Male
    RECOMMENDED FLUID TYPE Grease
    HOSE REEL TYPE Reel with Hose
    MODEL XDX

      Features

    • Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
    • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
    • Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)
    • Durable Finish - Baked-on enamel finish protects reel from corrosion
    • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications
