GRACO XDX 20 Hose Reels 15m 3/8" for Grease
Regular price
$2,310.00 AUD
Sale price
$2,310.00 AUD
Regular price
Unit price
per
Save $0
Sold out
Features

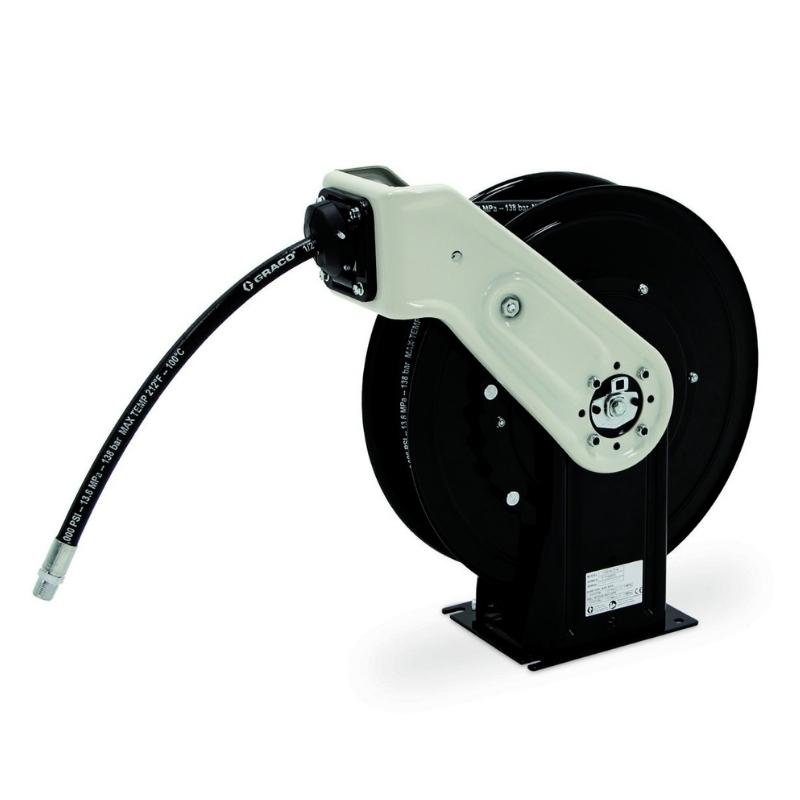

Graco XDX 20 Hose Reels 15m 3/8" for Grease
Overview
Graco’s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications.
- Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)
- Durable Finish - Baked-on enamel finish protects reel from corrosion
- Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications
Specifications
| COLOR | White, Blue Metallic, Black, Yellow |
| HOSE INSIDE DIAMETER (IN) | 3/8 |
| HOSE INSIDE DIAMETER (MM) | 9.525 |
| HOSE LENGTH (FT) | 50 |
| HOSE LENGTH (M) | 15 |
| INLET SIZE (IN) | 1/2 |
| INLET SIZE (MM) | 12.7 |
| INLET THREAD TYPE | NPSM |
| MAXIMUM TEMPERATURE (°C) | 93 |
| MAXIMUM TEMPERATURE (°F) | 200 |
| MAXIMUM WORKING PRESSURE (PSI) | 4800 |
| MINIMUM TEMPERATURE (°C) | -40 |
| MINIMUM TEMPERATURE (°F) | -40 |
| MOUNT LOCATION | Truck Mount, Bench Mount |
| OUTLET SIZE (IN) | 1/4 |
| OUTLET SIZE (MM) | 6.35 |
| OVERALL HEIGHT (IN) | 25.2 |
| OVERALL HEIGHT (MM) | 640 |
| OVERALL LENGTH (IN) | 21 |
| OVERALL LENGTH (MM) | 533 |
| OVERALL WIDTH (IN) | 7.5 |
| OVERALL WIDTH (MM) | 191 |
| SERIES | 20 |
| WETTED PARTS | Zinc-Plated Steel, Polyurethane, Steel |
| APPLICATION | Grease |
| TYPE | Spring-Rewind Reel |
| RECOMMENDED ENVIRONMENT | Indoor, Outdoor |
| FRAME TYPE | Dual Pedestal |
| REEL THREAD TYPE | NPT |
| INLET THREAD GENDER | Male |
| OUTLET THREAD GENDER | Male |
| RECOMMENDED FLUID TYPE | Grease |
| HOSE REEL TYPE | Reel with Hose |
| MODEL | XDX |
