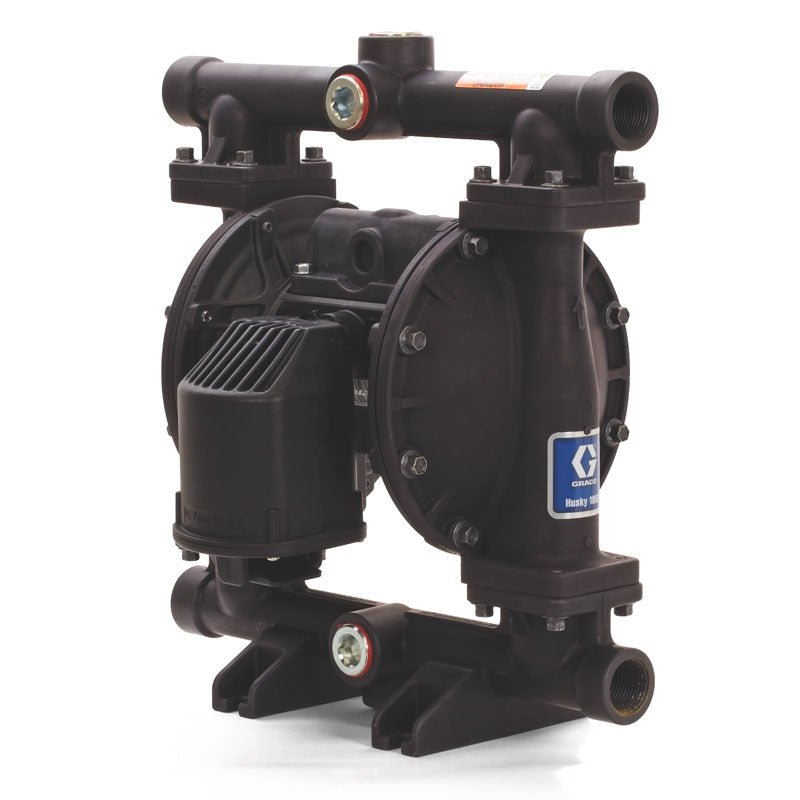

GRACO Husky 1050 Series Air-Operated Double Diaphragm Pump

SKU: 647648

GRACO Husky 1050 Series Air-Operated Double Diaphragm Pump

$2,850.00 AUD
$2,850.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.

Other payment options

View full details
GRACO Husky 1050 Series Air - Operated Double Diaphragm Pump - GO Industrial - 647648

GRACO Husky 1050 Series Air-Operated Double Diaphragm Pump

$2,850.00 AUD
$2,850.00 AUD
Save $0
Sold out

Features

  • Longer Diaphragm Life - Up to 5x longer diaphragm life for less maintenance and downtime
  • Modular Air Valve - Stall-free, low pulsation operation provides smooth and rapid changeover
  • One-Piece Centre Section - Eliminates air leaks for more efficient operation
  • Four Bolt Joint Design - Bolted design provides even sealing pressure for leak-free operation
  • Multiple Ports - Increased number of ports for installation flexibility
  • 30% more efficient than the market leader
  • 20% increase in fluid flow compared to the Husky 1040

    • Optional Features

  • DataTrak™ - Runaway protection and tracks material usage
  • Pulse Output - Cycle count capability
  • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation

    • Graco Husky 1050 Series Air-Operated Double Diaphragm Pump

    Overview

    Graco Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece centre section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

    Compatible Use:

    • Fuel Dispensing

        Shipping & Returns

        Our network of warehouses Australia-wide enables us to
        deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

        All returns must be pre-approved to ensure replacement and / or refund.

        Shipping & Returns

        Our network of warehouses Australia-wide enables us to
        deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

        All returns must be pre-approved to ensure replacement and / or refund.

        Warranty

        Read our complete warranty terms & conditions here.

        Warranty

        Read our complete warranty terms & conditions here.

        Secure Payment

        All our online payment methods are secured.

        Secure Payment

        All our online payment methods are secured.

        Specifications

        TYPE Pneumatic Diaphragm Pump
        AIR EXHAUST PORT SIZE (IN) 3/4
        AIR EXHAUST PORT THREAD GENDER Female
        AIR EXHAUST PORT THREAD TYPE NPT
        AIR INLET SIZE (IN) 1/2
        AIR INLET THREAD GENDER Female
        AIR INLET THREAD TYPE NPT
        APPLICATION Industrial
        BALL MATERIAL Acetal
        CENTER SECTION MATERIAL Aluminum
        COMPATIBLE MATERIAL Fuel
        DIAPHRAGM MATERIAL TPE (Hytrel)
        FLUID INLET SIZE (CM) 2.54
        FLUID INLET SIZE (IN) 1
        FLUID INLET SIZE (MM) 25.4
        FLUID INLET THREAD GENDER Female
        FLUID INLET THREAD TYPE NPT
        FLUID OUTLET SIZE (CM) 2.54
        FLUID OUTLET SIZE (IN) 1
        FLUID OUTLET SIZE (MM) 25.4
        FLUID OUTLET THREAD GENDER Female
        FLUID OUTLET THREAD TYPE NPT
        FLUID SECTION MATERIAL Aluminum
        FOR USE WITH Fuel Transfer
        MANIFOLD O-RING MATERIAL None
        MATERIAL Aluminum
        MAXIMUM AIR CONSUMPTION (SCFM) 25
        MAXIMUM AIR PRESSURE (BAR) 3.5
        MAXIMUM AIR PRESSURE (KPA) 350
        MAXIMUM AIR PRESSURE (PSI) 50
        MAXIMUM CYCLE RATE (CPM) 280
        MAXIMUM FLOW RATE (GPM) 38
        MAXIMUM FLOW RATE (L/MIN) 144
        MAXIMUM FLUID PRESSURE (BAR) 3.5
        MAXIMUM FLUID PRESSURE (KPA) 350
        MAXIMUM FLUID PRESSURE (PSI) 50
        MAXIMUM SOLID SIZE (CM) 0.3175
        MAXIMUM SOLID SIZE (IN) 0.125
        MAXIMUM SOLID SIZE (MM) 3.175
        MODEL Husky
        OVERALL HEIGHT (IN) 15.9
        POWER SOURCE Air
        PUMP RATIO 1:1
        SEAT MATERIAL TPE (Hytrel)
        SERIES 1050
        STANDARDS MET UL
        WEIGHT (LB) 23
        WETTED MATERIAL Aluminum, TPC-ET, Acetal, PTFE, Buna-N
        MAXIMUM FLUID PRESSURE (MPA) 0.35
        MAXIMUM AIR PRESSURE (MPA) 0.35
        CONNECTION TYPE Threaded

          Features

        • Longer Diaphragm Life - Up to 5x longer diaphragm life for less maintenance and downtime
        • Modular Air Valve - Stall-free, low pulsation operation provides smooth and rapid changeover
        • One-Piece Centre Section - Eliminates air leaks for more efficient operation
        • Four Bolt Joint Design - Bolted design provides even sealing pressure for leak-free operation
        • Multiple Ports - Increased number of ports for installation flexibility
        • 30% more efficient than the market leader
        • 20% increase in fluid flow compared to the Husky 1040

          • Optional Features

        • DataTrak™ - Runaway protection and tracks material usage
        • Pulse Output - Cycle count capability
        • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
