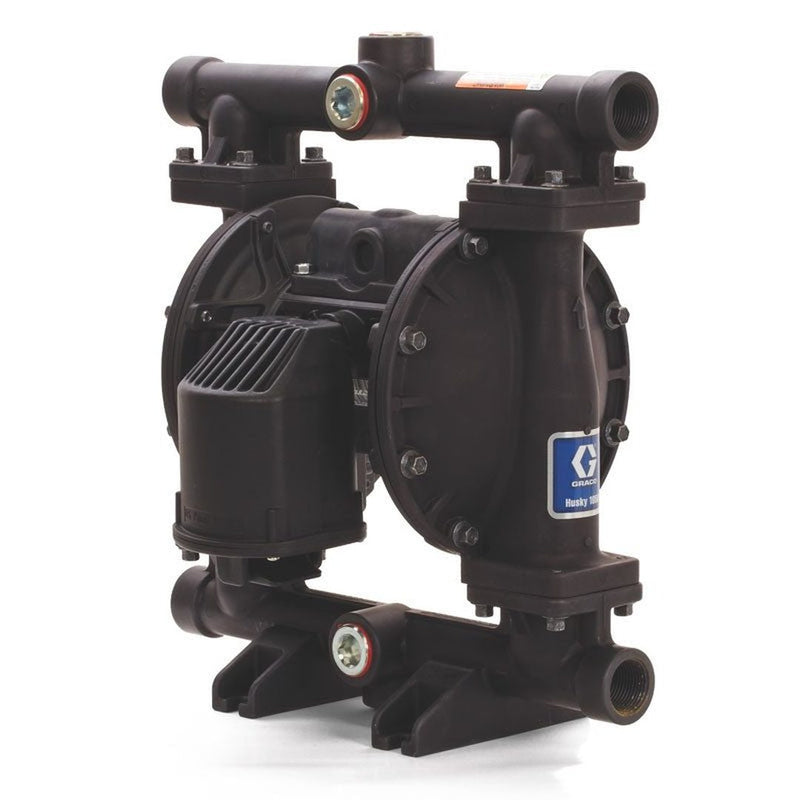

GRACO Husky 1050 Series Air-Operated Double Diaphragm Pump

SKU: 647648

GRACO Husky 1050 Series Air-Operated Double Diaphragm Pump

$2,541.00 AUD
$2,541.00 AUD
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

Graco Husky 1050 Series Air-Operated Double Diaphragm Pump

Overview

Graco Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece centre section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

Compatible Use:

  • Fuel Dispensing

      Specifications

      TYPE Pneumatic Diaphragm Pump
      AIR EXHAUST PORT SIZE (IN) 3/4
      AIR EXHAUST PORT THREAD GENDER Female
      AIR EXHAUST PORT THREAD TYPE NPT
      AIR INLET SIZE (IN) 1/2
      AIR INLET THREAD GENDER Female
      AIR INLET THREAD TYPE NPT
      APPLICATION Industrial
      BALL MATERIAL Acetal
      CENTER SECTION MATERIAL Aluminum
      COMPATIBLE MATERIAL Fuel
      DIAPHRAGM MATERIAL TPE (Hytrel)
      FLUID INLET SIZE (CM) 2.54
      FLUID INLET SIZE (IN) 1
      FLUID INLET SIZE (MM) 25.4
      FLUID INLET THREAD GENDER Female
      FLUID INLET THREAD TYPE NPT
      FLUID OUTLET SIZE (CM) 2.54
      FLUID OUTLET SIZE (IN) 1
      FLUID OUTLET SIZE (MM) 25.4
      FLUID OUTLET THREAD GENDER Female
      FLUID OUTLET THREAD TYPE NPT
      FLUID SECTION MATERIAL Aluminum
      FOR USE WITH 燃料输送, 燃料移送, Fuel Transfer, Transferencia de combustible, 연료 이송
      MANIFOLD O-RING MATERIAL None
      MATERIAL Aluminum
      MAXIMUM AIR CONSUMPTION (SCFM) 25
      MAXIMUM AIR PRESSURE (BAR) 3.5
      MAXIMUM AIR PRESSURE (KPA) 350
      MAXIMUM AIR PRESSURE (PSI) 50
      MAXIMUM CYCLE RATE (CPM) 280
      MAXIMUM FLOW RATE (GPM) 38
      MAXIMUM FLOW RATE (L/MIN) 144
      MAXIMUM FLUID PRESSURE (BAR) 3.5
      MAXIMUM FLUID PRESSURE (KPA) 350
      MAXIMUM FLUID PRESSURE (PSI) 50
      MAXIMUM SOLID SIZE (CM) 0.3175
      MAXIMUM SOLID SIZE (IN) 0.125
      MAXIMUM SOLID SIZE (MM) 3.175
      MODEL Husky
      OVERALL HEIGHT (IN) 15.9
      POWER SOURCE Air
      PUMP RATIO 1:1
      SEAT MATERIAL TPE (Hytrel)
      SERIES 1050
      STANDARDS MET UL
      WEIGHT (LB) 23
      WETTED MATERIAL Aluminum, TPC-ET, Acetal, PTFE, Buna-N
      MAXIMUM FLUID PRESSURE (MPA) 0.35
      MAXIMUM AIR PRESSURE (MPA) 0.35
      CONNECTION TYPE Threaded

        Features

      • Longer Diaphragm Life - Up to 5x longer diaphragm life for less maintenance and downtime
      • Modular Air Valve - Stall-free, low pulsation operation provides smooth and rapid changeover
      • One-Piece Centre Section - Eliminates air leaks for more efficient operation
      • Four Bolt Joint Design - Bolted design provides even sealing pressure for leak-free operation
      • Multiple Ports - Increased number of ports for installation flexibility
      • 30% more efficient than the market leader
      • 20% increase in fluid flow compared to the Husky 1040

        • Optional Features

      • DataTrak™ - Runaway protection and tracks material usage
      • Pulse Output - Cycle count capability
      • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
