GO KGSDA 316 Stainless Knifegate Valves Actuated Double Acting Pneumatic

SKU: KGSDAM-50

GO KGSDA 316 Stainless Knifegate Valves Actuated Double Acting Pneumatic

$1,111.00 AUD
$1,111.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Size
Seat Material

Other payment options

View full details
GO KGSDA 316 Stainless Knifegate Valves Actuated Double Acting Pneumatic - GO Industrial - KGSDAM - 50

GO KGSDA 316 Stainless Knifegate Valves Actuated Double Acting Pneumatic

From $1,111.00 AUD
From $1,111.00 AUD
Save $0
Sold out

Details

Available Options Include:

  • Cone Deflector
  • Extension Shaft
  • Seat Materials EPDM, PTFE, FKM

GO KGSDA 316 Stainless Knifegate Valves Actuated Double Acting Pneumatic

Overview

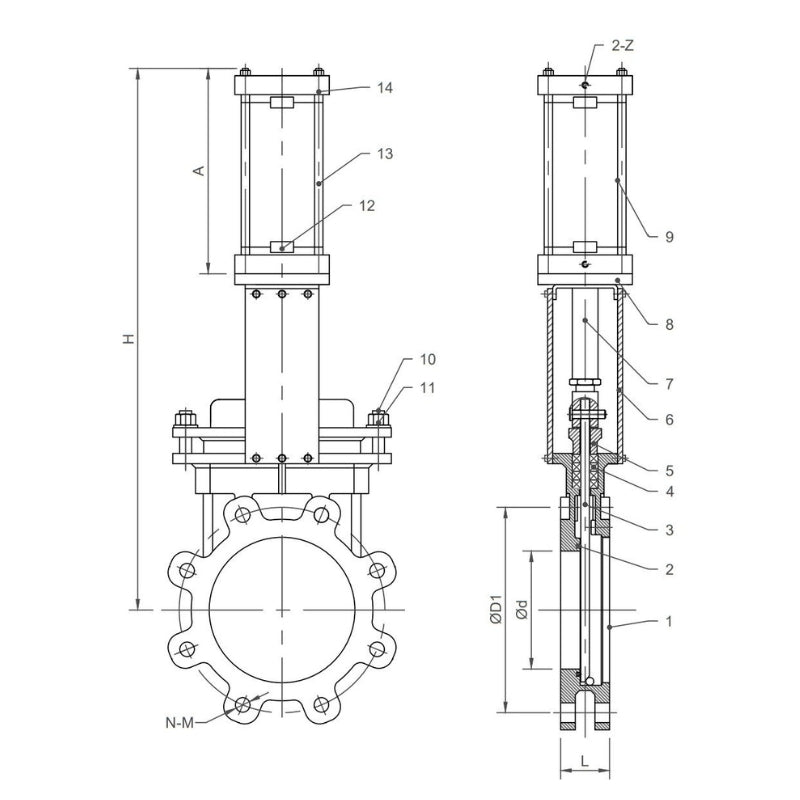

316 Stainless Steel lugged knife gate valve with 316 stainless steel body and gate. Operated by a double acting pneumatic actuator and suitable for up to 10 BAR media pressure. Great for slurries, effluent and sewerage treatment plants. Suits table E flanges. Unique design allows for a long life and low maintenance once installed. Other flanges available upon request. Available in resilient seat (NBR) and metal seat. Designed in accordance with MSS SP-81. Limit switches are an optional extra (shown for mounting reference only).

          Shipping & Returns

          Our network of warehouses Australia-wide enables us to
          deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

          All returns must be pre-approved to ensure replacement and / or refund.

          Shipping & Returns

          Our network of warehouses Australia-wide enables us to
          deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

          All returns must be pre-approved to ensure replacement and / or refund.

          Warranty

          Read our complete warranty terms & conditions here.

          Warranty

          Read our complete warranty terms & conditions here.

          Secure Payment

          All our online payment methods are secured.

          Secure Payment

          All our online payment methods are secured.

          Specifications

        • Size 50mm to 600mm
        • Body 316 Stainless Steel
        • Seat Metal or NBR
        • Gate 316 Stainless Steel
        • Pressure 10 BAR
        • Actuation Double Acting Pneumatic
          • Model Size (mm) Pressure Range Media Temperature Weight (kg) Cylinder Port Size
          KGSDA*-50 50 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 7 3/8"
          KGSDA*-65 65 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 8 3/8"
          KGSDA*-80 80 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 13 1/2"
          KGSDA*-100 100 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 15 1/2"
          KGSDA*-125 125 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 23 1/2"
          KGSDA*-150 150 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 35 1/2"
          KGSDA*-200 200 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 45 1/2"
          KGSDA*-250 250 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 75 1/2"
          KGSDA*-300 300 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 115 1/2"
          KGSDA*-350 350 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 169 1/2"
          KGSDA*-400 400 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 295 1/2"
          KGSDA*-450 450 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 390 1/2"
          KGSDA*-500 500 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 340 1/2"
          KGSDA*-600 600 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 460 1/2"

          *Insert N for NBR or M for Metal seats. Sizes up to 2400 available upon request.
