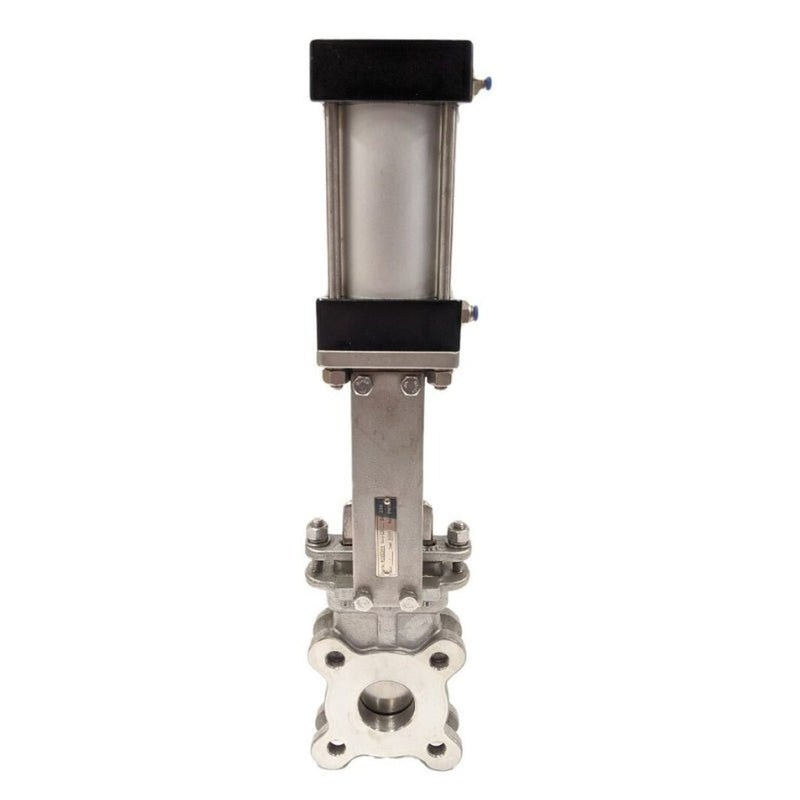

GO Knifegate Valve Actuated Double Acting Pneumatic 316 Stainless KGSDA Range

SKU: KGSDAM-50

GO Knifegate Valve Actuated Double Acting Pneumatic 316 Stainless KGSDA Range

$1,111.00 AUD
$1,111.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Size
Seat Material

Other payment options

The Basics

316 Stainless Steel lugged knife gate valve with 316 stainless steel body and gate. Operated by a double acting pneumatic actuator and suitable for up to 10 BAR media pressure. Great for slurries, effluent and sewerage treatment plants. Suits table E flanges. Unique design allows for a long life and low maintenance once installed. Other flanges available upon request. Available in resilient seat (NBR) and metal seat. Designed in accordance with MSS SP-81. Limit switches are an optional extra (shown for mounting reference only).

            Available options include;

            • Cone Deflector
            • Extension Shaft
            • Seat Materials EPDM, PTFE, FKM



            Model Size (mm) Pressure Range Media Temperature Weight (kg) Cylinder Port Size
            KGSDA*-50 50 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 7 3/8"
            KGSDA*-65 65 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 8 3/8"
            KGSDA*-80 80 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 13 1/2"
            KGSDA*-100 100 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 15 1/2"
            KGSDA*-125 125 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 23 1/2"
            KGSDA*-150 150 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 35 1/2"
            KGSDA*-200 200 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 45 1/2"
            KGSDA*-250 250 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 75 1/2"
            KGSDA*-300 300 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 115 1/2"
            KGSDA*-350 350 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 169 1/2"
            KGSDA*-400 400 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 295 1/2"
            KGSDA*-450 450 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 390 1/2"
            KGSDA*-500 500 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 340 1/2"
            KGSDA*-600 600 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 460 1/2"

            *Insert N for NBR or M for Metal seats. Sizes up to 2400 available upon request.

            • Size 50mm to 600mm
            • Body 316 Stainless Steel
            • Seat Metal or NBR
            • Gate 316 Stainless Steel
            • Pressure 10 BAR
            • Actuation Double Acting Pneumatic
