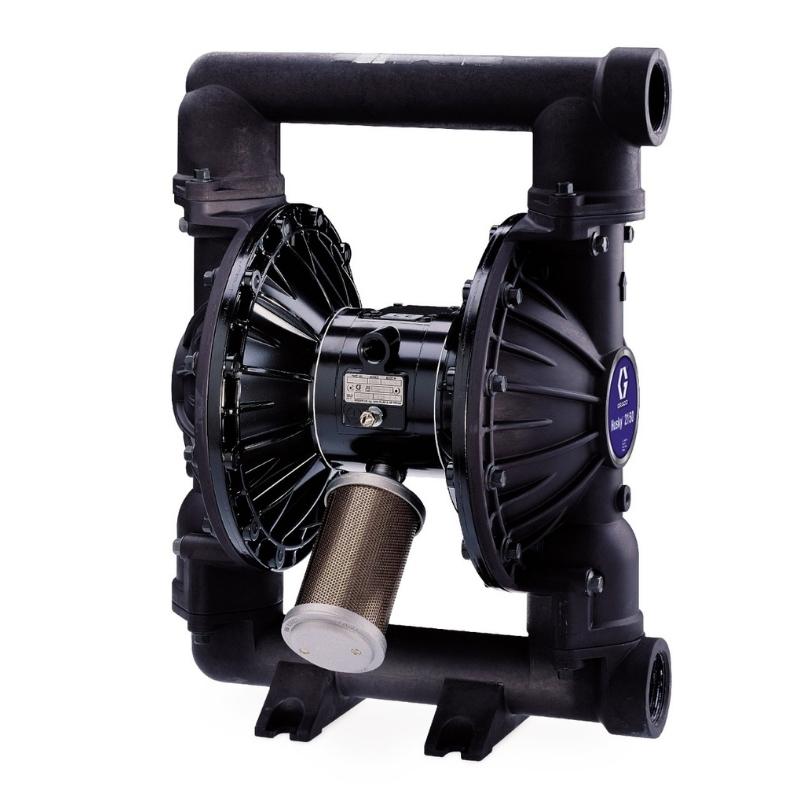

GRACO Husky 2150 AL Air-Operated Double Diaphragm Metal Pumps

SKU: DF3525

GRACO Husky 2150 AL Air-Operated Double Diaphragm Metal Pumps

$4,650.00 AUD
$4,650.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Models

Other payment options

View full details
GRACO Husky 2150 AL Air - Operated Double Diaphragm Metal Pumps - GO Industrial - DF3525

GRACO Husky 2150 AL Air-Operated Double Diaphragm Metal Pumps

From $4,650.00 AUD
From $4,650.00 AUD
Save $0
Sold out

Features

  • Rugged construction. Resists corrosion for reliable performance and long life
  • Heavy-duty design. Offers long life, increased productivity and lower overall cost of ownership
  • Flow rates up to 300 gpm (1135 lpm)
  • Lube-free for cleaner operation
  • DataTrak™ available to prevent pump runaway and track material usage

Choose from a wide selection of materials to handle numerous applications, including corrosive and abrasive fluid transfer.

Applicable for:

  • Paints, stains, coatings, inks and dyes
  • Chemicals
  • Acids
  • Corrosive and abrasive fluids
  • Lubricants
  • Ceramic glazes
  • Sludge, slurry, and waste fluid
  • Soaps, detergents, and solvents

Model List

  • DF3525: Husky 2150 AL Air Operated Double Diaphragm Metal Pump, TPE/AC
  • DFC525: Husky 2150 AL Air Operated Double Diaphragm Metal Pump, TPE/AC
  • DF3GGG: Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, GE Seats, GE Balls & GE Diaphragm
  • DFCGGG: Husky 2150 AL Air Operated Double Diaphragm Metal Pump
  • DFC311: Husky 2150 AL 2 in. (51 mm) BSP, SS Seats, PTFE Balls, PTFE Diaphragm
  • DFD311: Husky 2150 AL 2 in. (51 mm) BSP, SS Seats, PTFE Balls, PTFE Diaphragm

Features

  • Overall improved efficiency (up to 40% more efficient)
  • Highest fluid flow rate in its class
  • Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
  • Expanded material offering to handle endless applications
  • Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
  • 2 in. (51 mm) ANSI end-porting
  • Fluid flow up to 150 gpm (568 lpm)
  • Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
  • Lube-free operation
  • Epoxy-coated air section for tough environmental conditions

    • Graco Husky 2150 AL Air-Operated Double Diaphragm Metal Pumps

    Overview

    The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      • 308368EN-ZAZ Graco HuskyTM 2150 Air-Operated Diaphragm Pumps Parts List
      • 308550EN-ZAM Graco Husky 2150 Air-Operated Diaphragm Pumps Manual
      • Graco Husky 2150 Pumps Data Sheet
      • GO Data Sheet Graco Husky 1050

      Specifications

      Technical Specifications SKU DF3525 SKU DFC525
      TYPE Pneumatic Diaphragm Pump Pneumatic Diaphragm Pump
      AIR INLET SIZE (IN) 1/2 1/2
      AIR INLET THREAD GENDER Female Female
      AIR INLET THREAD TYPE NPT NPT
      APPLICATION Industrial Industrial
      BALL MATERIAL Acetal Acetal
      CENTER SECTION MATERIAL Aluminum Aluminum
      COMPATIBLE MATERIAL Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer
      DIAPHRAGM MATERIAL TPE TPE
      FLUID INLET SIZE (CM) 5.08 5.08
      FLUID INLET SIZE (IN) 2 2
      FLUID INLET SIZE (MM) 50.8 50.8
      FLUID INLET THREAD GENDER Female
      FLUID INLET THREAD TYPE NPT BSPT
      FLUID OUTLET SIZE (CM) 5.08 5.08
      FLUID OUTLET SIZE (IN) 2 2
      FLUID OUTLET SIZE (MM) 50.8 50.8
      FLUID OUTLET THREAD GENDER Female
      FLUID OUTLET THREAD TYPE NPT BSPT
      FLUID SECTION MATERIAL Aluminum Aluminum
      MANIFOLD CONFIGURATION End Port End Port
      MATERIAL Aluminum Aluminum
      MAXIMUM AIR CONSUMPTION (SCFM) 175 175
      MAXIMUM AIR PRESSURE (BAR) 8.27 8.27
      MAXIMUM AIR PRESSURE (KPA) 827 827
      MAXIMUM AIR PRESSURE (PSI) 120 120
      MAXIMUM CYCLE RATE (CPM) 145 145
      MAXIMUM FLOW RATE (GPM) 150 150
      MAXIMUM FLOW RATE (L/MIN) 568 568
      MAXIMUM FLUID PRESSURE (BAR) 8.27 8.27
      MAXIMUM FLUID PRESSURE (KPA) 827 827
      MAXIMUM FLUID PRESSURE (PSI) 120 120
      MAXIMUM OPERATING TEMPERATURE (°C) 66 66
      MAXIMUM OPERATING TEMPERATURE (°F) 150 150
      MAXIMUM SOLID SIZE (CM) 0.635 0.635
      MAXIMUM SOLID SIZE (IN) 0.25 0.25
      MAXIMUM SOLID SIZE (MM) 6.35 6.35
      MODEL Husky Husky
      POWER SOURCE Air Air
      SEAT MATERIAL TPE TPE
      SERIES 2150 2150
      MAXIMUM FLUID PRESSURE (MPA) 0.827 0.827
      MAXIMUM AIR PRESSURE (MPA) 0.827 0.827
      CONNECTION TYPE Threaded Threaded
      DIAPHRAGM COMPATIBLE MATERIAL TPE TPE


      Technical Specifications SKU DF3GGG SKU DFCGGG
      TYPE Pneumatic Diaphragm Pump Pneumatic Diaphragm Pump
      AIR EXHAUST PORT SIZE (IN) 3/4 -
      AIR EXHAUST PORT THREAD GENDER Female -
      AIR EXHAUST PORT THREAD TYPE NPT -
      AIR INLET SIZE (IN) 1/2 1/2
      AIR INLET THREAD GENDER Female Female
      AIR INLET THREAD TYPE NPT NPT
      APPLICATION Industrial Industrial
      BALL MATERIAL Geolast Geolast
      CENTER SECTION MATERIAL Aluminum Aluminum
      COMPATIBLE MATERIAL Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer
      DIAPHRAGM MATERIAL Geolast Geolast
      FLUID INLET SIZE (CM) 5.08 5.08
      FLUID INLET SIZE (IN) 2 2
      FLUID INLET SIZE (MM) 50.8 50.8
      FLUID INLET THREAD GENDER Female -
      FLUID INLET THREAD TYPE NPT BSPT
      FLUID OUTLET SIZE (CM) 5.08 5.08
      FLUID OUTLET SIZE (IN) 2 2
      FLUID OUTLET SIZE (MM) 50.8 50.8
      FLUID OUTLET THREAD GENDER Female -
      FLUID OUTLET THREAD TYPE NPT BSPT
      FLUID SECTION MATERIAL Aluminum Aluminum
      MANIFOLD CONFIGURATION End Port End Port
      MANIFOLD O-RING MATERIAL PTFE PTFE
      MATERIAL Aluminum Aluminum
      MAXIMUM AIR CONSUMPTION (SCFM) 175 175
      MAXIMUM AIR PRESSURE (BAR) 8 8.27
      MAXIMUM AIR PRESSURE (KPA) 800 827
      MAXIMUM AIR PRESSURE (PSI) 120 120
      MAXIMUM CYCLE RATE (CPM) 145 145
      MAXIMUM FLOW RATE (GPM) 150 150
      MAXIMUM FLOW RATE (L/MIN) 568 568
      MAXIMUM FLUID PRESSURE (BAR) 8 8.27
      MAXIMUM FLUID PRESSURE (KPA) 800 827
      MAXIMUM FLUID PRESSURE (PSI) 120 120
      MAXIMUM OPERATING TEMPERATURE (°C) 66 66
      MAXIMUM OPERATING TEMPERATURE (°F) 150 150
      MAXIMUM SOLID SIZE (CM) 0.635 0.635
      MAXIMUM SOLID SIZE (IN) 0.25 0.25
      MAXIMUM SOLID SIZE (MM) 6.35 6.35
      MODEL Husky Husky
      OVERALL HEIGHT (IN) 23.6 -
      POWER SOURCE Air Air
      SEAT MATERIAL Geolast Geolast
      SERIES 2150 2150
      WEIGHT (LB) 58 -
      WETTED MATERIAL Aluminum, Geolast, PTFE -
      MAXIMUM FLUID PRESSURE (MPA) 0.8 0.827
      MAXIMUM AIR PRESSURE (MPA) 0.8 0.827
      CONNECTION TYPE Threaded Threaded
      DIAPHRAGM COMPATIBLE Geolast Geolast

        Features

      • Overall improved efficiency (up to 40% more efficient)
      • Highest fluid flow rate in its class
      • Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
      • Expanded material offering to handle endless applications
      • Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
      • 2 in. (51 mm) ANSI end-porting
      • Fluid flow up to 150 gpm (568 lpm)
      • Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
      • Lube-free operation
      • Epoxy-coated air section for tough environmental conditions
