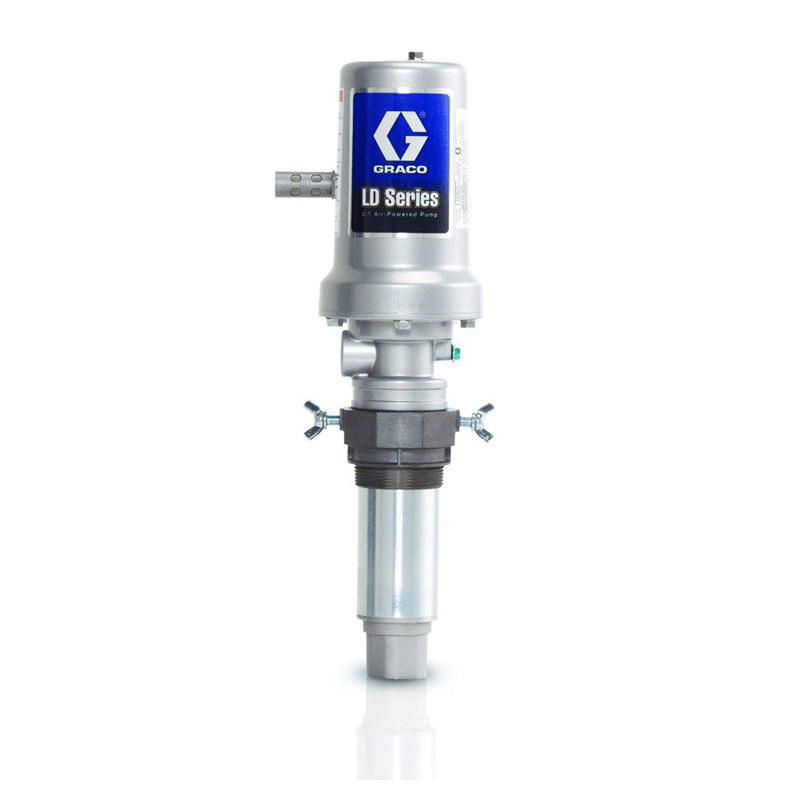

Graco LD Pump Kit 180kg Cart 50:1 24J056
Graco LD Pump 50:1 Air Driven Range
  • Graco LD Pump Kit 180kg Cart 50:1 24J056
  • Graco LD Pump 50:1 Air Driven Range
1 3

GRACO LD Pump Kit 50:1 Cart 180kg

SKU: 24J056

GRACO LD Pump Kit 50:1 Cart 180kg

$2,860.00 AUD
$2,860.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

View full details
Graco LD Pump Kit 180kg Cart 50:1 24J056

GRACO LD Pump Kit 50:1 Cart 180kg

$2,860.00 AUD
$2,860.00 AUD
Save $0
Sold out

Details

Only Graco can give you the field-proven performance found in the famous FireBall® pump for a solution that works as hard as you. Fast repairs, flexible configuration, industry leading warranty, and so many other field proven features are built-in—all at a competitive price.

Kit Includes:

  • GRACO 180kg grease pump (24G608)
  • GRACO Grease Gun (24H400)
  • GRACO Fluid grease hose kit (24H863),
  • GRACO 180kg Follower plate (24F903),
  • GRACO 180kg Drum cover (24F906),
  • GRACO Cart (24F915),
  • GRACO Z-swivel (24H614)

Pilot Valve

Patent-pending self cleaning design increases reliability in dirty air environments and minimises pressure drop with rapid changeovers for reduced stalling and smoother flow.

5 Year Warranty

Industry leading Graco factory 5 year warranty

Three Inch Air Motor

Provides more power to create better flow.

Adjustable Bung Adapter Included

Built-in slide adjustment with easy-set hand screws is easier to fit into more applications.

Engineered for Durability

Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.

NXT Air Valve

Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.

Modular Air Valve

Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.

Built-In Thermal Relief and Inlet Strainer

Built-in thermal relief (oil only) protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.

Graco LD Pump Kit 50:1 Cart 180kg

Overview

        Discover the Value of Graco LD™ Series Pumps.  Stay ahead of the competition with the latest product solution from Graco Lubrication—the LD Series Pump.

        The affordable and full featured LD is designed for lower volume applications and is available in 3:1 and 5:1 for oil and 50:1 for grease. These pumps are fine-tuned for a compact, flexible and still incredibly durable solution.



              Shipping & Returns

              Our network of warehouses Australia-wide enables us to
              deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

              All returns must be pre-approved to ensure replacement and / or refund.

              Shipping & Returns

              Our network of warehouses Australia-wide enables us to
              deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

              All returns must be pre-approved to ensure replacement and / or refund.

              Warranty

              Read our complete warranty terms & conditions here.

              Warranty

              Read our complete warranty terms & conditions here.

              Secure Payment

              All our online payment methods are secured.

              Secure Payment

              All our online payment methods are secured.

              • GO Data Sheet Graco LD Range
              • GO Manual Graco LD Packages
              • GO Manual Graco LD Range
              • GO Manual Graco LD Grease Repair

              Specifications

              LD Series Grease Models
              Maximum Fluid Working Pressure
              517 bar, 51.7 MPa
              Fluid Pressure Ratio
              50:1
              Air Operation Range
              1.37 to 10.3 bar, 0.137 to 1.03 MPa
              Air Consumption (at 100 psi)
              See performance curve in instruction manual 3A1334
              Pump Cycles per pound (cycles per kg)
              103 cycle/kg
              Maximum Recommended Pump Speed
              120 cycles/min
              Recommended Speed for Optimum Pump Life
              60 cycles/min or lower flow rate, 0.6 kg/min
              Wetted parts
              steel, brass, nitrile rubber, polyurethane, UHMWPE, acetal
              Sound Pressure Level, calculated at a distance of 1 meter from measurements taken per ISO 9614–2 @ 100 psi air pressure (6.89 bar, 0.68 MPa) and 20 cycles per minutes. Muffler 112933 can be ordered separately for reduced sound levels.
              72.9 dB(a)
              Sound Power Level, measured per ISO 9614–2 at 100 psi air pressure (6.89 bar, 0.68 MPa) and 20 cycles per minute. Muffler 112933 can be ordered separately for reduced sound levels.
              82.0 dB(a)
              Performance Curve
              See Chart in instruction manual 3A1334
              Approximate Weight
              35 lb drum – 5.1 kg, 120 lb drum – 6.8 kg, 400 lb drum – 7.7 kg
