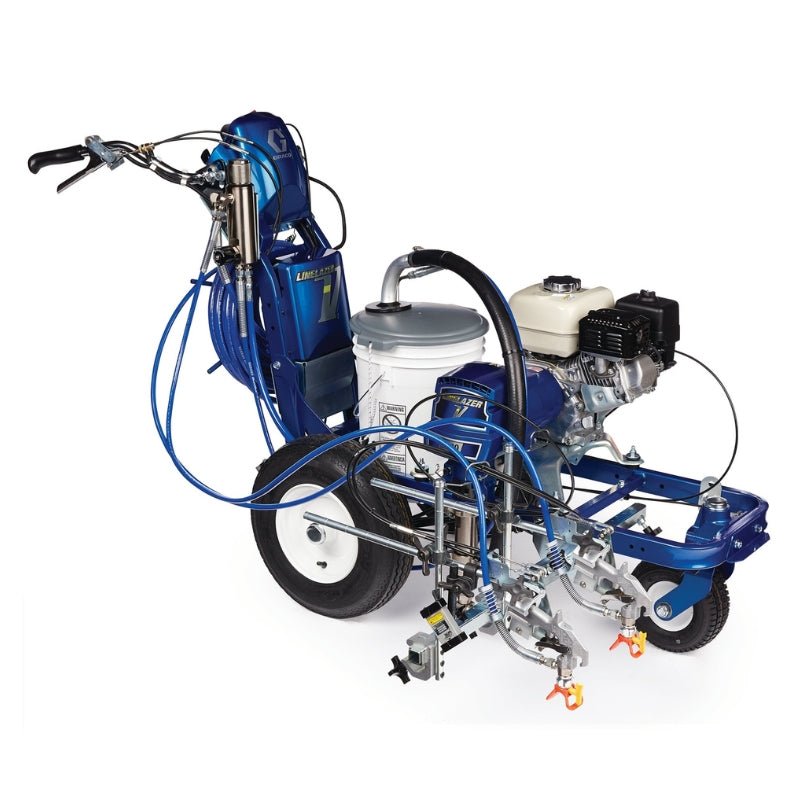

GRACO LineLazer V 5900 Automatic Series Airless Line Marker
SKU: 17H457GRACO LineLazer V 5900 Automatic Series Airless Line Marker
Regular price
$25,960.00 AUD
Sale price
$25,960.00 AUD
Regular price
Unit price
per
Save $0
Sold out
Inclusive of GST.
Shipping calculated at checkout.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
Other payment options
GRACO LineLazer V 5900 Automatic Series Airless Line Marker
Regular price
From $25,960.00 AUD
Sale price
$25,960.00
Regular price
Unit price
per
Sold out
Features
Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
Auto-Layout II
- Simplify Parking Lot Layout
- SmartControl measures while you walk and puts down pre-marks
- No need for measuring tape, string lines or aerosol cans
- Cuts your layout time in half
Live Look Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
J-Log System with USB Download
- Valuable Job Information
- Proof of job = More striping opportunities.
- USB download capability allows you to capture and save all job data
Honda GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
Easy Mark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
Dual Comfort Handlebar System
- Easy Handlebar Adjustment
Endurance Chromex Pump
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
Additional Features
- QuikSelect Gun Selector
- Easy Out Pump Filter
- LazerGuide 1700 Start/Stop Laser
Graco LineLazer V 5900 HP Automatic Series Airless Line Striper
Overview
When it’s time for 1 or 2-gun airless line striping performance with extra power, the LineLazer V 5900 HP Automatic Series striper is an excellent choice. These durable striping machines deliver higher performance and consistent lines for all your basic striping needs.
The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.
Specifications
| BEAD SYSTEM | Optional |
|---|---|
| COMPATIBLE SURFACES | Pavement, Turf |
| ENGINE BRAND | Honda |
| ENGINE MODEL | GX160 |
| FUEL TANK CAPACITY (GAL) | 0.95 |
| FUEL TANK CAPACITY (L) | 3.6 |
| GUN ACTIVATION | 1 Automatic & 1 Manual |
| INCLUDES | LazerGuide 1700, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 50 ft BlueMax II Airless Hose,, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL 4 oz |
| MAXIMUM FLOW RATE (GPM) | 1.6 |
| MAXIMUM FLOW RATE (L/MIN) | 6.06 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 87.1 |
| MAXIMUM TIP SIZE (CM) | 0.1092 |
| MAXIMUM TIP SIZE (IN) | 0.043 |
| MAXIMUM TIP SIZE (MM) | 1.092 |
| MAXIMUM WORKING PRESSURE (BAR) | 228 |
| MAXIMUM WORKING PRESSURE (KPA) | 22800 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MODEL | LineLazer V |
| NUMBER OF COLORS | One Color |
| NUMBER OF GUNS | 2 |
| NUMBER OF PUMPS | 1 |
| POWER RATING (HP) | 5.5 |
| POWER RATING (KW) | 4.1 |
| POWER RATING (W) | 4100 |
| PUMP TYPE | Endurance |
| SERIES | 5900 |
| COMPATIBLE MATERIAL | Road-Marking Paint |
| WEIGHT (KG) | 120.7 |
| WEIGHT (LB) | 266 |
| TYPE | Walk-Behind Line Striper |
| POWER SOURCE | Gas |
| PRODUCT SERIES | HP Automatic |
| ATTACHMENTS | LazerGuide 1700 |
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
- Simplify Parking Lot Layout
- SmartControl measures while you walk and puts down pre-marks
- No need for measuring tape, string lines or aerosol cans
- Cuts your layout time in half
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
- Valuable Job Information
- Proof of job = More striping opportunities.
- USB download capability allows you to capture and save all job data
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
- Easy Handlebar Adjustment
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
- QuikSelect Gun Selector
- Easy Out Pump Filter
- LazerGuide 1700 Start/Stop Laser
Features
Automatic Paint Gun System
Auto-Layout II
Live Look Display with SmartControl
J-Log System with USB Download
Honda GX Engine
Easy Mark Gun Adjustment System
EZ Align Wheel System
Dual Comfort Handlebar System
Endurance Chromex Pump
Additional Features
