GRACO Spray Gun AirPro - Syphon Feed

SKU: 289991

$452

GRACO Spray Gun AirPro - Syphon Feed

  • Advanced Air Spray Gun Technology
  • Manual air spray gun ideal for automotive, metal, wood, waterborne, high wear and adhesive applications


Ultimate Spraying Experience

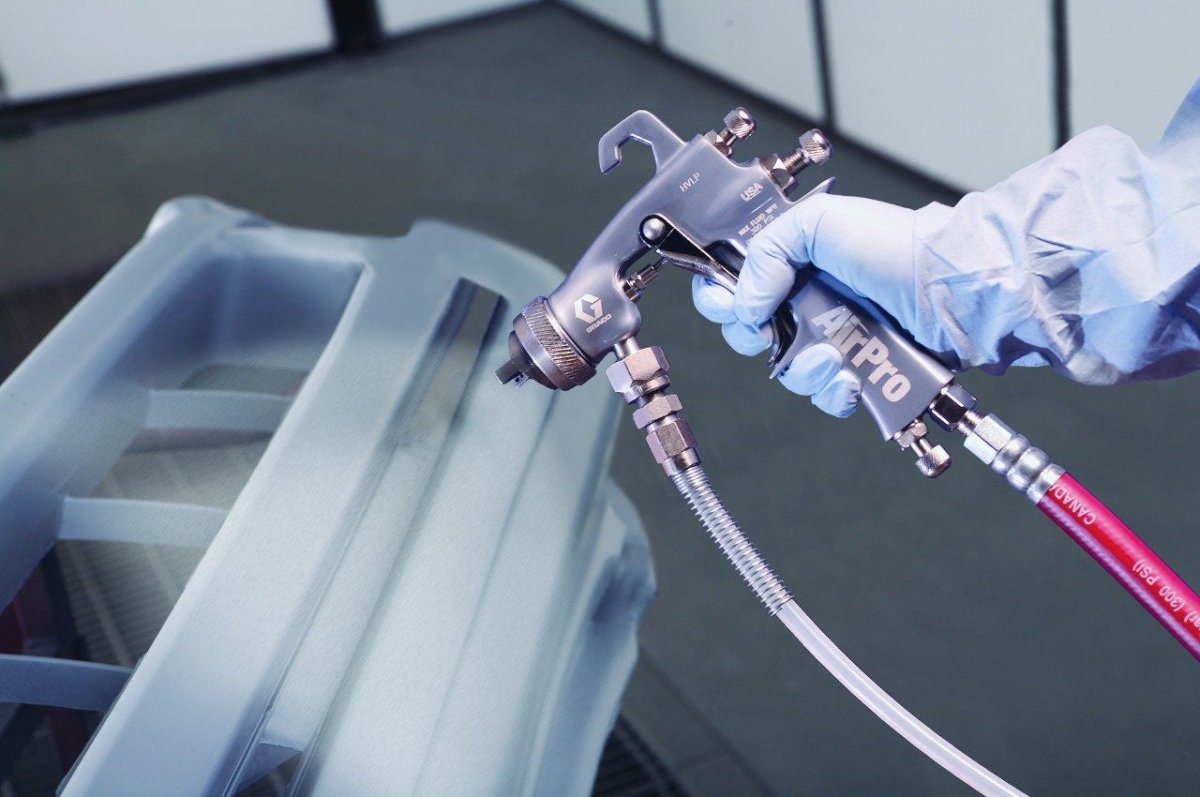

The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you’re a custom shop or a high volume manufacturing facility. Ideal for automotive, general metal, wood, waterborne, high wear and adhesive applications.

  • Even material distribution through the spray pattern for optimum coverage
  • Improved transfer efficiency through reduced air consumption
  • Uniform air flow through reduced air consumption
  • Enhanced atomisation through material-specific aircaps
DATA SHEET
DATA SHEET - PARTS FLYER
MANUAL - SYPHON FEED
MANUAL - GRAVITY FEED
MANUAL - PRESSURE FEED
VIDEO - PRODUCT OVERVIEW
VIDEO - SERVICE TEAR DOWN
VIDEO - SERVICE REBUILD

Specifications

Maximum Air Inlet Pressure
7.0 bar, 0.7 MPa
Maximum Fluid Inlet Pressure
21.0 bar, 2.1 MPa
Maximum HVLP/Compliant Inbound Air Pressure
Printed on air cap. See the AirPro Instructions-Parts manual.
Fluid and Air Operating Temperature Range
0–43°C
Air Inlet
1/4 npsm (R1/4–19)
Fluid Inlet
3/8 npsm (R3/8–19)
Weight
410 gm
Wetted Parts
303 stainless steel, 17–4 PH stainless steel, PEEK, UHMWPE, acetal
Noise Data
Conventional Spray Guns
Sound power at 43 psi (3.0 bar, 0.30 MPa)
88.82 dB(A)
Sound pressure at 43 psi (3.0 bar, 0.30 MPa)
78.91 dB(A)
HVLP Spray Guns
Sound power at 19 psi (1.3 bar, 0.13 MPa)
89.70 dB(A)
Sound pressure at 19 psi (1.3 bar, 0.13 MPa)
79.79 dB(A)
Compliant Spray Guns
Sound power at 29 psi (2.0 bar, 0.20 MPa)
87.47 dB(A)
Sound pressure at 29 psi (2.0 bar, 0.20 MPa)
77.56 dB(A)
