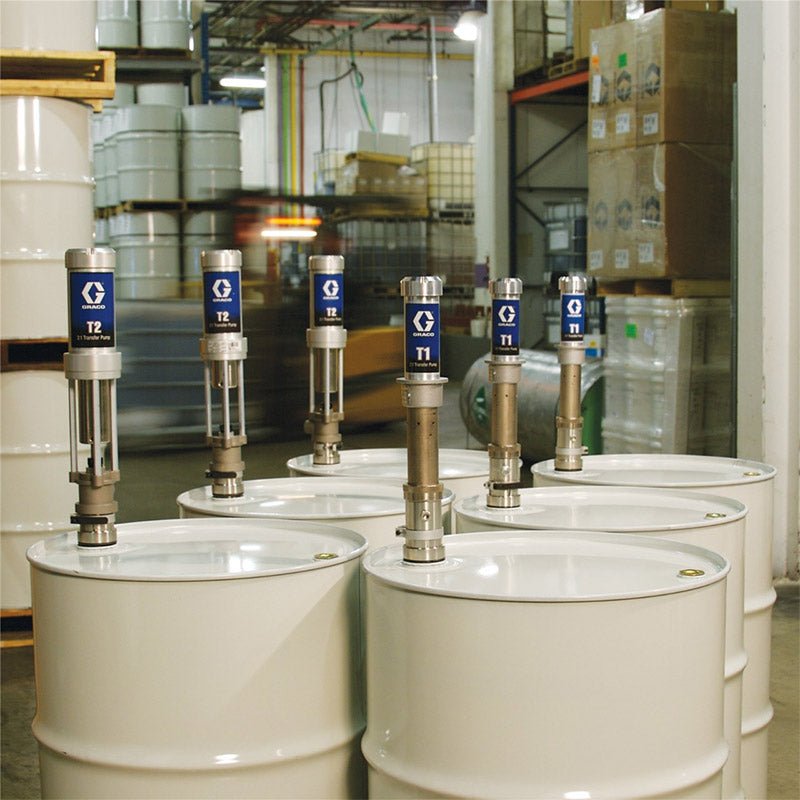

GRACO T1 and T2 Transfer Pumps

SKU: 256200

GRACO T1 and T2 Transfer Pumps

$3,210.00 AUD
$3,210.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Product

Other payment options

View full details
GRACO T1 and T2 Transfer Pumps - GO Industrial - 256200

GRACO T1 and T2 Transfer Pumps

From $3,210.00 AUD
From $3,210.00 AUD
Save $0
Sold out

Details

Product Range

Graco T1 Transfer Pump

  • 256200 - Graco T1 2:1 Transfer Pump
  • 247955 - Graco T1 2:1 Transfer Pump, air supply kit, 10 ft x 3/4 in (3 m x 19 mm) supply hose and fittings
  • 247956 - Graco T1 2:1 Transfer Pump and 10 ft x 3/4 in (3 m x 19 mm) supply hose
  • 312766 - Operation and repair manual

Graco T2 Transfer Pump

  • 295616 - Graco T2 2.25:1 Transfer Pump
  • 246081 - Graco T2 2.25:1 Transfer Pump, air supply kit, 10 ft x 3/4 in (3 m x 19 mm) supply hose and fittings
  • 246898 - Graco T2 2.25:1 Transfer Pump and 10 ft x 3/4 in (3 m x 19 mm) supply hose
  • 311882 - Operation and repair manual

Features

  • Provide consistent feed pressures and flow rates for dependable results
  • Lower pressure drops with higher viscosity materials at any ambient temperature
  • Designed and manufactured by the worldwide leader in pump technology
  • Longer lasting pump - designed for durability with less maintenance
  • Quick-release bung adapter for easy drum removal without interference from hose connections
  • Stainless steel wetted parts for corrosion-resistance
  • PTFE seals for improved performance and less maintenance

    • Graco T1 and T2 Transfer Pumps

    Overview

    • Transfer Pumps
    • Ideal for moving A and B materials to Reactor spray machines
    • Graco's family of transfer pumps maintain performance in any environment.
    • Transfer pumps are required to feed chemical to your Reactor spray machine or any other equipment requiring fluid transfer.
    • Consider your material viscosities, desired output rate, interior ceiling height of your rig, and available air pressure when choosing your ideal transfer pump.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • GO Data Sheet Graco T1 and T2 338788B t1.2
    • GO Manual Graco T1 312766EN-N
    • GO Manual Graco T2 311882EN-T

    Specifications

    Graco T1 2:1 Ratio Transfer Pump
    U.S.
    Metric
    Pressure ratio
    2.1
    Maximum fluid working pressure
    (2.5 MPa, 25 bar)
    Maximum air inlet pressure
    (1.2 MPa, 12 bar)
    Pump cycles per 1 gallon (3.8 liters)
    40
    Maximum recommended pump speed for continuous operation
    100 cycles per min (150 cycles per min. intermittent)
    Gallons (liters) per pump cycle
    0.095 liters
    Air consumption
    See Performance Chart on page 28.
    Maximum ambient temperature
    (50° C)
    Maximum fluid temperature
    (82° C)
    Wetted parts.
    Stainless Steel, PTFE, PEEK
    Fluid recirculation port
    3/8 npt(f)
    Air inlet port
    1/4 npt(f)
    Fluid outlet port
    1/2 npt(f)
    Weight
    (8.4 kg)
    Sound Pressure
    (0.55 MPa, 5.5 bar)
    Sound Power, per ISO 9614-2
    (0.55 MPa, 5.5 bar)

    Graco T2 2.25:1 Ratio Transfer Pump

    Maximum Fluid Working Pressure* 2.8MPa, 28 bar
    Pressure Ratio 2.25:1
    Max Output Flow (continuous) 20 lpm
    Max Output Flow (intermittent) 28 lpm
    Maximum Air inlet pressure 1.2 MPa, 12 bar
    Pump cycles per 1 gallon (3.8 liters) 15.9
    Maximum recommended pump speed for continuous operation 100 cycles per min (150 cycles per min intermittent)
    Gallons (liters) per pump cycle 0.24 l
    Air consumption See performance chart
    Maximum Ambient temperature 50° C
    Maximum Fluid Temperature 88° C
    Wetted parts Stainless Steel, PTFE
    Air Inlet Port 1/4 npt(f)
    Fluid Outlet Port 3/4 npt(f)
    Weight 9.5 kg
    Sound Pressure 88.7 dB(A) at 80 psi (.55 MPa, 5.5 bar)
    Sound Power, per ISO 9614-2 96.8 dB(A) at 80 psi (.55 MPa, 5.5 bar)

      Features

    • Provide consistent feed pressures and flow rates for dependable results
    • Lower pressure drops with higher viscosity materials at any ambient temperature
    • Designed and manufactured by the worldwide leader in pump technology
    • Longer lasting pump - designed for durability with less maintenance
    • Quick-release bung adapter for easy drum removal without interference from hose connections
    • Stainless steel wetted parts for corrosion-resistance
    • PTFE seals for improved performance and less maintenance
