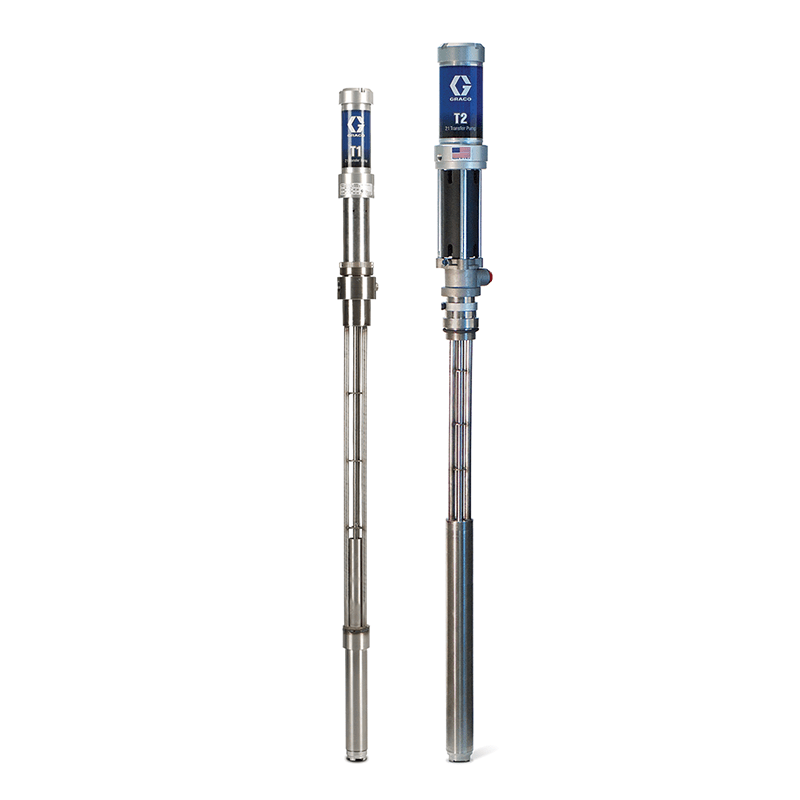

Graco T1 and T2 Transfer Pump Range

SKU: 256200

$2,164

Graco T1 and T2 Transfer Pump Range

  • Transfer Pumps
  • Ideal for moving A and B materials to Reactor spray machines
  • Graco's family of transfer pumps maintain performance in any environment.
  • Transfer pumps are required to feed chemical to your Reactor spray machine or any other equipment requiring fluid transfer.
  • Consider your material viscosities, desired output rate, interior ceiling height of your rig, and available air pressure when choosing your ideal transfer pump.

    Product Range

    Graco T1 Transfer Pump

    • 256200 - Graco T1 2:1 Transfer Pump
    • 247955 - Graco T1 2:1 Transfer Pump, air supply kit, 10 ft x 3/4 in (3 m x 19 mm) supply hose and fittings
    • 247956 - Graco T1 2:1 Transfer Pump and 10 ft x 3/4 in (3 m x 19 mm) supply hose
    • 312766 - Operation and repair manual

    Graco T2 Transfer Pump

    • 295616 - Graco T2 2.25:1 Transfer Pump
    • 246081 - Graco T2 2.25:1 Transfer Pump, air supply kit, 10 ft x 3/4 in (3 m x 19 mm) supply hose and fittings
    • 246898 - Graco T2 2.25:1 Transfer Pump and 10 ft x 3/4 in (3 m x 19 mm) supply hose
    • 311882 - Operation and repair manual

      Features

      • Provide consistent feed pressures and flow rates for dependable results
      • Lower pressure drops with higher viscosity materials at any ambient temperature
      • Designed and manufactured by the worldwide leader in pump technology
      • Longer lasting pump - designed for durability with less maintenance
      • Quick-release bung adapter for easy drum removal without interference from hose connections
      • Stainless steel wetted parts for corrosion-resistance
      • PTFE seals for improved performance and less maintenance

      Downloads

      Data Sheet
      Manual - T1
      Manual - T2

      Specifications

      Graco T1 2:1 Ratio Transfer Pump

      U.S.
      Metric
      Pressure ratio
      2.1
      Maximum fluid working pressure
      (2.5 MPa, 25 bar)
      Maximum air inlet pressure
      (1.2 MPa, 12 bar)
      Pump cycles per 1 gallon (3.8 liters)
      40
      Maximum recommended pump speed for continuous operation
      100 cycles per min (150 cycles per min. intermittent)
      Gallons (liters) per pump cycle
      0.095 liters
      Air consumption
      See Performance Chart on page 28.
      Maximum ambient temperature
      (50° C)
      Maximum fluid temperature
      (82° C)
      Wetted parts.
      Stainless Steel, PTFE, PEEK
      Fluid recirculation port
      3/8 npt(f)
      Air inlet port
      1/4 npt(f)
      Fluid outlet port
      1/2 npt(f)
      Weight
      (8.4 kg)
      Sound Pressure
      (0.55 MPa, 5.5 bar)
      Sound Power, per ISO 9614-2
      (0.55 MPa, 5.5 bar)



      Graco T2 2.25:1 Ratio Transfer Pump

      Maximum Fluid Working Pressure* . 2.8MPa, 28 bar
      Pressure Ratio - 2.25:1
      Max Output Flow (continuous) - 20 lpm
      Max Output Flow (intermittent) - 28 lpm
      Maximum Air inlet pressure - 1.2 MPa, 12 bar
      Pump cycles per 1 gallon (3.8 liters) - 15.9
      Maximum recommended pump speed for continuous operation - 100 cycles per min (150 cycles per min intermittent)
      Gallons (liters) per pump cycle - 0.24 l
      Air consumption - See performance chart
      Maximum Ambient temperature - 50° C
      Maximum Fluid Temperature - 88° C
      Wetted parts - Stainless Steel, PTFE
      Air Inlet Port - 1/4 npt(f)
      Fluid Outlet Port - 3/4 npt(f)
      Weight - 9.5 kg
      Sound Pressure - 88.7 dB(A) at 80 psi (.55 MPa, 5.5 bar)
      Sound Power, per ISO 9614-2 - 96.8 dB(A) at 80 psi (.55 MPa, 5.5 bar)
