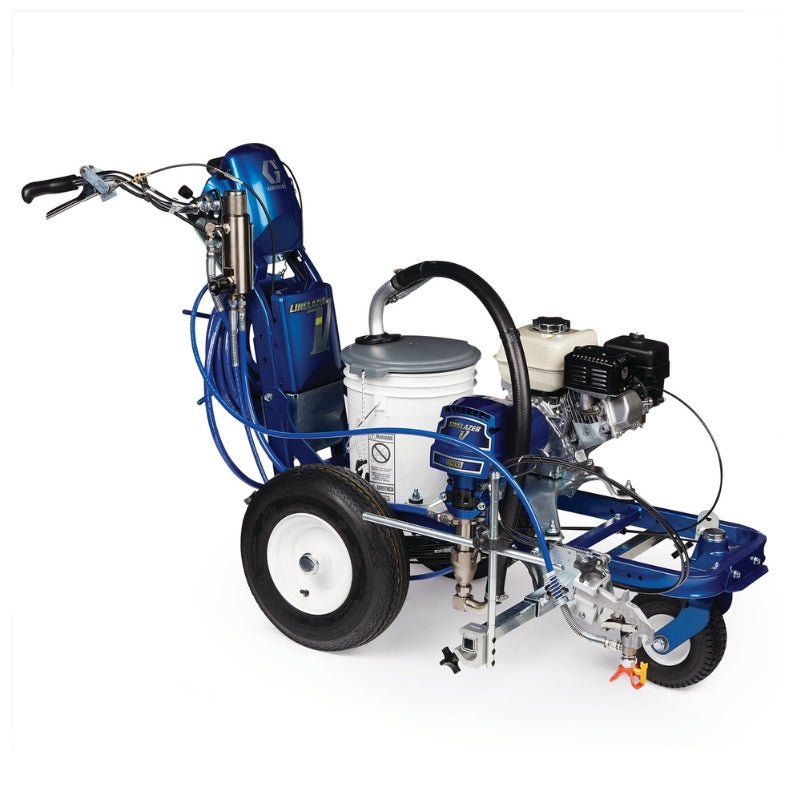

GRACO LineLazer V 3900 Airless Line Marker Petrol Driven Range
SKU: 17H450
$15,862
GRACO LineLazer V 3900 Airless Line Marker Petrol Driven Range
When it’s time for 1 or 2-gun airless line striping performance, the LineLazer V 3900 Standard Series striper is an excellent choice. These durable striping machines deliver consistent lines for all your basic striping needs.
The LineLazer V Standard Series is ideal for the higher production re-striping contractor completing and considering larger re-striping jobs with basic pattern applications requiring a single-color, single or dual gun striping solution.
- Airless Line Striper
- The LineLazer V 3900 is the preferred choice of professionals for a wide variety of pavement marking applications.
- The LineLazer V 3900 is the airless line striping choice for professional striping contractors who want the industry’s best striping unit.
- When it’s time for 2-gun performance, no one does it better than Graco.
- Designed to deliver the most precise and consistent lines in the industry, it is the perfect choice for new lot layouts, medium to large parking lots, small city jobs and even big malls.
- With the option to add a LineDriver, the performance of the LineLazer V 3900 is unmatched.
Downloads
 |
DATA SHEET |
|
BROCHURE |
|
MANUAL |
|
MANUAL - REPAIR AND PARTS |
Features
Standard Series Features:
LiveLook Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
- Reliable, Easy-to-Start Power
- Contractor-preferred - excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
- Easy Handlebar Adjustment
- Simple Gun Control
- Independently control of two guns with one lever - solid/skip
- Reliable, Long-Life Pump
- Industry-best pump performance - field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
HP Automatic Series Includes All Standard Series Features PLUS:
- Automatic Guns: Push button control for accurate stripes every time
- Auto-Layout II: Cuts layout time in half, Exclusive Green Laser Guidance (country dependant)
- Data Logging with J-Log System: On-board job information for proof of completion
- On-Board Power: 12V battery for all your accessory items
Technical Specifications
| Compatible Material | Road-Marking Paint |
|---|---|
| Compatible Surfaces | Pavement, Turf |
| Engine Brand | Honda |
| Engine Model | GX120 |
| Fuel Tank Capacity (L) | 2.5 |
| Gun Activation | Manual |
| Includes | Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz |
| Maximum Flow Rate (L/min) | 4.7 |
| Maximum Sound Pressure Level (dB(A)) | 85.5 |
| Maximum Tip Size (cm) | 0.0635 |
| Maximum Tip Size (mm) | 0.6350 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 2270 |
| Model | LineLazer V |
| Number of Colors | One Color |
| Number of Guns | 2 |
| Number of Pumps | 1 |
| Overall Height (cm) | 113.03 |
| Overall Height (mm) | 1130.3000 |
| Overall Length (cm) | 173.36 |
| Overall Length (mm) | 1733.55 |
| Overall Width (cm) | 87.0 |
| Overall Width (mm) | 869.9500 |
| Power Rating (HP) | 4 |
| Power Rating (kW) | 2.98 |
| Power Source | Gas |
| Pump Type | Endurance |
| Recommended Annual Usage | Up to 500 gallons per week |
| Series | 3900 |
| Standards Met | CE |
| Type | Walk-Behind Line Striper |
| Weight (kg) | 104 |
