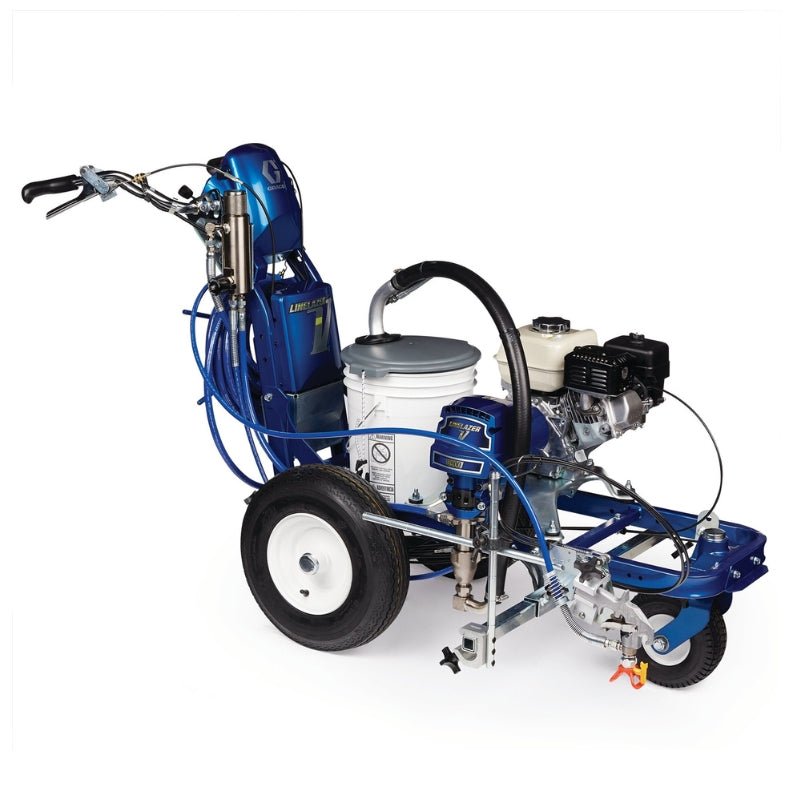

Graco LineLazer V 3900 HP Automatic Series Gas Airless Line Striper, 1 Auto Gun 17K577
1 1

The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

  • The LineLazer V 3900 is the preferred choice of professionals for a wide variety of pavement marking applications.
  • The LineLazer V 3900 is the airless line striping choice for professional striping contractors who want the industry’s best striping unit.
  • When it’s time for 2-gun performance, no one does it better than Graco.
  • Designed to deliver the most precise and consistent lines in the industry, it is the perfect choice for new lot layouts, medium to large parking lots, small city jobs and even big malls.
  • With the option to add a LineDriver, the performance of the LineLazer V 3900 is unmatched.
  • GO Data Sheet Graco LineLazer
  • GO Data Sheet GRACO LineLazer V 3900 Airless Line Marker Petrol Driven Range
  • GO Manual Parts and Repair Graco LineLazer V 3900


COMPATIBLE SURFACES Pavement, Turf
ENGINE BRAND Honda
ENGINE MODEL GX120
FUEL TANK CAPACITY (GAL) 0.66
FUEL TANK CAPACITY (L) 2.5
GUN ACTIVATION Manual, Automatic
INCLUDES Tips, Guard, Gun, Hose, Pump Filter, TSL
MAXIMUM FLOW RATE (GPM) 1.25
MAXIMUM FLOW RATE (L/MIN) 4.7
MAXIMUM SOUND PRESSURE LEVEL (DB(A)) 85.5
MAXIMUM TIP SIZE (CM) 0.0889
MAXIMUM TIP SIZE (IN) 0.035
MAXIMUM TIP SIZE (MM) 0.8890
MAXIMUM WORKING PRESSURE (BAR) 227
MAXIMUM WORKING PRESSURE (KPA) 2270
MAXIMUM WORKING PRESSURE (PSI) 3300
MODEL LineLazer V
NUMBER OF COLORS One Color
NUMBER OF GUNS 1
NUMBER OF PUMPS 1
OVERALL HEIGHT (CM) 113.03
OVERALL HEIGHT (IN) 44.5
OVERALL HEIGHT (MM) 1130.3000
OVERALL LENGTH (CM) 174.63
OVERALL LENGTH (IN) 68.75
OVERALL LENGTH (MM) 1746.25
OVERALL WIDTH (CM) 87
OVERALL WIDTH (IN) 34.25
OVERALL WIDTH (MM) 869.9500
POWER RATING (HP) 4
POWER RATING (KW) 2.98
PUMP TYPE Endurance
SERIES 3900
COMPATIBLE MATERIAL Road-Marking Paint
WEIGHT (KG) 109
WEIGHT (LB) 240
TYPE Walk-Behind Line Striper
POWER SOURCE Gas
PRODUCT SERIES HP Automatic
  • Automatic Paint Gun System
    • Automatically Stripe Skip-Lines
    • Reduce operator fatigue — push button line production
    • Quality solenoid driven system
  • Auto-Layout II
    • Simplify Parking Lot Layout
    • SmartControl measures while you walk and puts down pre-marks
    • No need for measuring tape, string lines or aerosol cans
    • Cuts your layout time in half
  • LiveLook Display with SmartControl
    • Striping Information At-A-Glance
    • Track, measure and control every aspect of your job
    • Accessible proof-of-job data from the J-Log System with USB Download
    • Consistent spraying pressure for perfect lines
  • J-Log System with USB Download
    • Valuable Job Information
    • Proof of job = More striping opportunities.
    • USB download capability allows you to capture and save all job data
  • Honda® GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
  • EZ Align Wheel System
    • Perfect Striper Tracking
    • Simple front wheel alignment, no special tools needed
  • DualComfort Handlebar System
    • Easy Handlebar Adjustment
  • Endurance Chromex Pump
    • Reliable, Long-Life Pump
    • Industry-best pump performance — field-proven design
    • Handle the most demanding materials with long-life rod treatment
    • 4X harder than ordinary chrome
  • Additional Features
    • QuikSelect Gun Selector
    • Easy Out Pump Filter
    • LazerGuide 1700 Start/Stop Laser

Graco LineLazer V 3900 HP Automatic Series Gas Airless Line Striper, 1 Auto Gun 17K577

SKU: 17K577

Graco LineLazer V 3900 HP Automatic Series Gas Airless Line Striper, 1 Auto Gun 17K577

$23,430.00 AUD
$23,430.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.

Other payment options

The Basics

For those advanced striping jobs that require layout work or skip lines, the LineLazer V 3900 HP Automatic Series line striper includes additional features to help you work smarter, finish jobs faster and increase your profitability.

    The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

    • The LineLazer V 3900 is the preferred choice of professionals for a wide variety of pavement marking applications.
    • The LineLazer V 3900 is the airless line striping choice for professional striping contractors who want the industry’s best striping unit.
    • When it’s time for 2-gun performance, no one does it better than Graco.
    • Designed to deliver the most precise and consistent lines in the industry, it is the perfect choice for new lot layouts, medium to large parking lots, small city jobs and even big malls.
    • With the option to add a LineDriver, the performance of the LineLazer V 3900 is unmatched.
    • GO Data Sheet Graco LineLazer
    • GO Data Sheet GRACO LineLazer V 3900 Airless Line Marker Petrol Driven Range
    • GO Manual Parts and Repair Graco LineLazer V 3900


    COMPATIBLE SURFACES Pavement, Turf
    ENGINE BRAND Honda
    ENGINE MODEL GX120
    FUEL TANK CAPACITY (GAL) 0.66
    FUEL TANK CAPACITY (L) 2.5
    GUN ACTIVATION Manual, Automatic
    INCLUDES Tips, Guard, Gun, Hose, Pump Filter, TSL
    MAXIMUM FLOW RATE (GPM) 1.25
    MAXIMUM FLOW RATE (L/MIN) 4.7
    MAXIMUM SOUND PRESSURE LEVEL (DB(A)) 85.5
    MAXIMUM TIP SIZE (CM) 0.0889
    MAXIMUM TIP SIZE (IN) 0.035
    MAXIMUM TIP SIZE (MM) 0.8890
    MAXIMUM WORKING PRESSURE (BAR) 227
    MAXIMUM WORKING PRESSURE (KPA) 2270
    MAXIMUM WORKING PRESSURE (PSI) 3300
    MODEL LineLazer V
    NUMBER OF COLORS One Color
    NUMBER OF GUNS 1
    NUMBER OF PUMPS 1
    OVERALL HEIGHT (CM) 113.03
    OVERALL HEIGHT (IN) 44.5
    OVERALL HEIGHT (MM) 1130.3000
    OVERALL LENGTH (CM) 174.63
    OVERALL LENGTH (IN) 68.75
    OVERALL LENGTH (MM) 1746.25
    OVERALL WIDTH (CM) 87
    OVERALL WIDTH (IN) 34.25
    OVERALL WIDTH (MM) 869.9500
    POWER RATING (HP) 4
    POWER RATING (KW) 2.98
    PUMP TYPE Endurance
    SERIES 3900
    COMPATIBLE MATERIAL Road-Marking Paint
    WEIGHT (KG) 109
    WEIGHT (LB) 240
    TYPE Walk-Behind Line Striper
    POWER SOURCE Gas
    PRODUCT SERIES HP Automatic
    • Automatic Paint Gun System
      • Automatically Stripe Skip-Lines
      • Reduce operator fatigue — push button line production
      • Quality solenoid driven system
    • Auto-Layout II
      • Simplify Parking Lot Layout
      • SmartControl measures while you walk and puts down pre-marks
      • No need for measuring tape, string lines or aerosol cans
      • Cuts your layout time in half
    • LiveLook Display with SmartControl
      • Striping Information At-A-Glance
      • Track, measure and control every aspect of your job
      • Accessible proof-of-job data from the J-Log System with USB Download
      • Consistent spraying pressure for perfect lines
    • J-Log System with USB Download
      • Valuable Job Information
      • Proof of job = More striping opportunities.
      • USB download capability allows you to capture and save all job data
    • Honda® GX Engine
      • Reliable, Easy-to-Start Power
      • Contractor-preferred — excellent power and proven reliability
      • Oil Alert shuts down engine to prevent damage if oil level drops too low
    • EasyMark Gun Adjustment System
      • Easy Gun Adjustments
      • Perfect gun alignment every time with easy-to-use guide mark system
      • 2-gun capability with QuikSelect gun selector
    • EZ Align Wheel System
      • Perfect Striper Tracking
      • Simple front wheel alignment, no special tools needed
    • DualComfort Handlebar System
      • Easy Handlebar Adjustment
    • Endurance Chromex Pump
      • Reliable, Long-Life Pump
      • Industry-best pump performance — field-proven design
      • Handle the most demanding materials with long-life rod treatment
      • 4X harder than ordinary chrome
    • Additional Features
      • QuikSelect Gun Selector
      • Easy Out Pump Filter
      • LazerGuide 1700 Start/Stop Laser
    View full details
