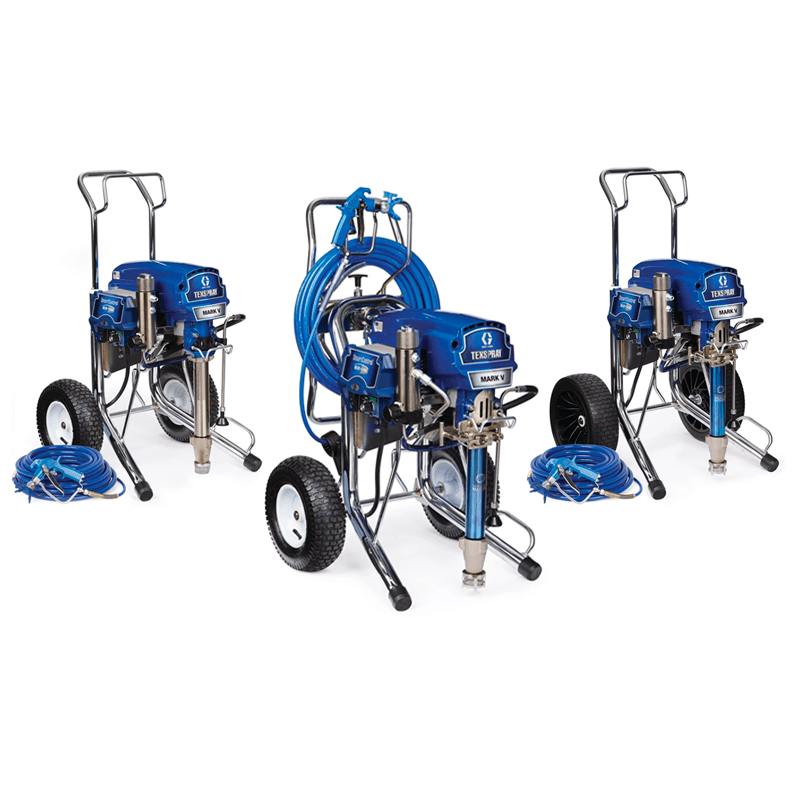

GRACO Mark V HD 3-in-1 IronMan Series Electric Airless Sprayer
SKU: 17E629GRACO Mark V HD 3-in-1 IronMan Series Electric Airless Sprayer
Other payment options
Graco Mark V HD 3-in-1 IronMan Series Electric Airless Sprayer
Overview
The Mark V HD is built to deliver a higher flow rate to help you complete jobs faster. Providing 20% more productivity than the Mark IV, this unit comes with an upgraded Heavy-Duty Texture Gun that can accommodate a larger tip size to handle all texture finishes and the wide range of primers and paint.
Details
Beyond Jobsite Tough. Mark HD IronMan Series electric airless texture sprayers are built to routinely handle the rugged demands of large commercial and industrial jobs – day in and day out.
- GO Instructions Graco Parts List for Texture Airless Spray Gun 308491EN-U
- GO Manual Graco Inline HD Texture Gun Operation Parts 309495EN-L
- GO Manual Graco Silver Plus - Flex Plus Spray Guns Manual 311254EN-N
- GO Manual Graco 695 795 1095 1595 Mark IV HD Mark V HD Mark VII HD Mark X HD Electric Airless Sprayers 3A6342EN-G
- GO Manual Graco Displacement Pump Repair 3A6583EN-A
- GO Manual Graco Displacement Pump Repair 3A6584EN-A
- Graco Manual Contractor PC Spray Guns Operation 3A6285EN-L
- Endurance Vortex MaxLife Extreme Piston Pump
- The longest durability & life
- Breakthrough Vortex Rotating Piston Technology
- Longest-life packings and piston rod 3X pump rod life
- Maximum versatility no matter what you’re spraying Long Life ceramic and stainless steel balls included for maximum versatility
- ProConnect 2 Pump Replacement System
- Eliminate costly downtime
- Exchange pump in minutes
- No tools, pins or parts to lose
- Flat Proof Tires
- Never have a flat again
- Tires can’t be punctured by nails, screws, or any sharp debris
- SmartControl 4.0 with ProGuard Protection System
- Precision pressure control
- Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
- ProGuard prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
- BlueLink Job & Sprayer Management System
- Streamline your business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
- MaxFlo 2 with Pack-Out Protection
- Less pack-out, more productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimized fluid passageways for the heaviest coatings
- Crushproof Inlet Strainer
- Durable filtration
- Stands up harsh impacts to maintain even flow through the filter
- FastFlush 2 System
- Fast cleaning now even FASTER
- Clean the pump 6X faster using ½ the water
- High-velocity fluid flow delivered with 60% higher motor speed
- MaxPower Motor & Precision Advantage Drive
- Proven power and performance for all painting applications
- High-torque brushless design with a lifetime warranty
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation and a lifetime warranty
- Additional Features
- Easy Out Filter Manifold
- Heavy Duty Prime Valve
- Rugged, Durable Cart Design
Specifications
Amperage (A) | 20 |
---|---|
Compatible Replacement Pump | 17H829 |
Convertible | Non-Convertible |
Engine Size (HP) | 2.8 |
Features | Endurance Chromex Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, FastFlush 2, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve |
Fluid Outlet Size (cm) | 0.9525 |
Fluid Outlet Size (mm) | 9.525 |
Fluid Outlet Thread Type | NPSM |
Frame Configuration | Hi-Boy |
Frequency (Hz) | 50/60 |
Includes | Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose |
Maximum Flow Rate (L/min) | 5.1 |
Maximum Sound Pressure Level (dB(A)) | 82 |
Maximum Tip Size (cm) | 0.0991 |
Maximum Tip Size (mm) | 0.9906 |
Maximum Tip Size 1 Gun (cm) | 0.0991 |
Maximum Tip Size 1 Gun (mm) | 0.9906 |
Maximum Working Pressure (MPa) | 22.8 |
Maximum Working Pressure (bar) | 228 |
Maximum Working Pressure (kPa) | 22800 |
Minimum Generator Power (W) | 5000 |
Model | Mark HD |
Motor Type | MaxPower |
Number of Guns | 1 |
Overall Height (cm) | 97.8 |
Overall Height (mm) | 978 |
Overall Length (cm) | 66 |
Overall Length (mm) | 660 |
Overall Width (cm) | 61 |
Overall Width (mm) | 610 |
Power Rating (HP) | 2.8 |
Power Rating (W) | 2088.0 |
Power Rating (kW) | 2.09 |
Power Source | Electric |
Pressure Control Type | SmartControl 4.0 |
Pump Mount Type | QuikChange |
Pump Rod Type | Chromex |
Pump Sleeve Material | Stainless Steel |
Weight (kg) | 59 |
Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass |
