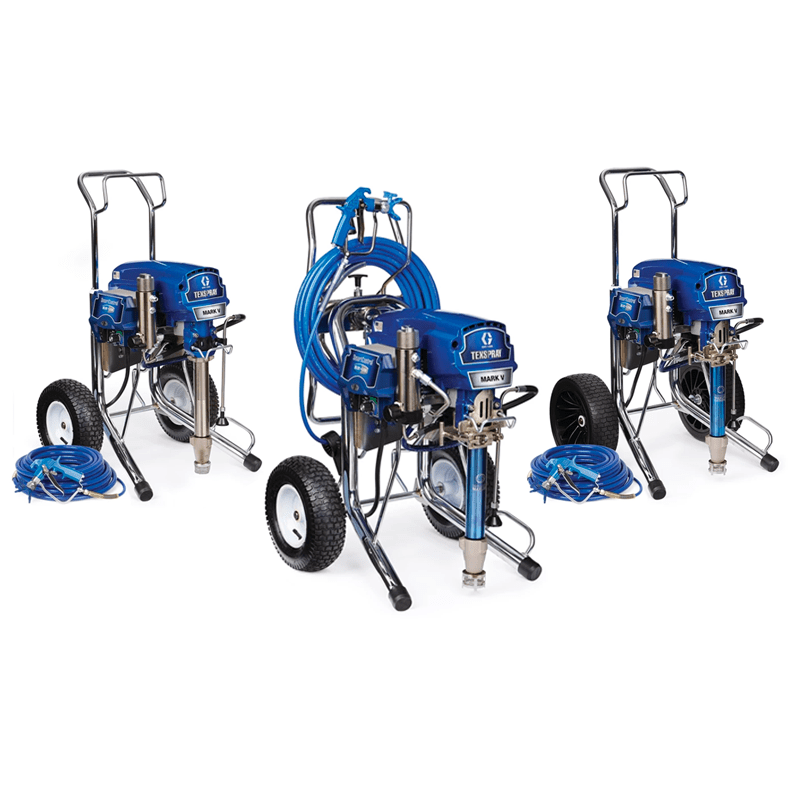

GRACO Mark V HD 3-in-1 ProContractor Series Electric Airless Sprayer
SKU: 17E663GRACO Mark V HD 3-in-1 ProContractor Series Electric Airless Sprayer
Other payment options
Graco Mark V HD 3-in-1 ProContractor Series Electric Airless Sprayer
Overview
Details
Work Smarter, Finish More Jobs. Mark HD 3-in-1 ProContractor Series electric airless texture sprayers are designed to deliver speed & performance so you can get to the next jobsite faster and increase your profits.
- GO Instructions Graco Parts List for Texture Airless Spray Gun 308491EN-U
- GO Manual Graco Inline HD Texture Gun Operation Parts 309495EN-L
- GO Manual Graco Silver Plus - Flex Plus Spray Guns Manual 311254EN-N
- GO Manual Graco 695 795 1095 1595 Mark IV HD Mark V HD Mark VII HD Mark X HD Electric Airless Sprayers 3A6342EN-G
- GO Manual Graco Displacement Pump Repair 3A6583EN-A
- GO Manual Graco Displacement Pump Repair 3A6584EN-A
- Graco Manual Contractor PC Spray Guns Operation 3A6285EN-L
- Endurance Vortex MaxLife Piston Pump
- Superior pump life
- Breakthrough vortex rotating rod technology
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages for high velocity flow to rotate piston for even wear
- Longest life packings and piston rod
- Long life ceramic and stainless steel balls included for maximum versatility
- MaxFlo 2 with Pack-Out Protection
- Less pack-out, more productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimized fluid passageways for the heaviest coatings
- BlueLink Job & Sprayer Management System
- Streamline your business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
- SmartControl 4.0 with ProGuard Protection System
- Precision Pressure Control
- Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
- ProGuard prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
- QuikReel Hose Management System
- Easy hose management
- Deploy and rewind up to 300 feet (90 meters) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
- ProConnect 2 Pump Replacement System
- Eliminate costly downtime
- Exchange pump in minutes
- No tools, pins or parts to lose
- FastFlush 2 System
- Fast cleaning now even FASTER
- Clean the pump 6X faster using ½ the water
- High-velocity fluid flow delivered with 60% higher motor speed
- Crushproof Inlet Strainer
- Durable filtration
- Stands up to harsh impacts to maintain even flow through filter
- MaxPower Motor & Precision Advantage Drive
- Proven power and performance for all painting applications
- High-torque brushless design with a Lifetime Warranty
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation and a lifetime warranty
- Additional Features:
- WatchDog Pump Protection System
- Easy Out Filter Manifold
- Heavy-Duty Prime Valve
- Rugged, Durable Cart Design
Specifications
Amperage (A) | 20 |
---|---|
Compatible Replacement Pump | 17H829 |
Convertible | Non-Convertible |
Engine Size (HP) | 2.8 |
Features | Endurance Chromex Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, FastFlush 2, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve |
Fluid Outlet Size (cm) | 0.9525 |
Fluid Outlet Size (mm) | 9.525 |
Fluid Outlet Thread Type | NPSM |
Frame Configuration | Hi-Boy |
Frequency (Hz) | 50/60 |
Includes | Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose |
Maximum Flow Rate (L/min) | 5.1 |
Maximum Sound Pressure Level (dB(A)) | 82 |
Maximum Tip Size (cm) | 0.0991 |
Maximum Tip Size (mm) | 0.9906 |
Maximum Tip Size 1 Gun (cm) | 0.0991 |
Maximum Tip Size 1 Gun (mm) | 0.9906 |
Maximum Working Pressure (MPa) | 22.8 |
Maximum Working Pressure (bar) | 228 |
Maximum Working Pressure (kPa) | 22800 |
Minimum Generator Power (W) | 5000 |
Model | Mark HD |
Motor Type | MaxPower |
Number of Guns | 1 |
Overall Height (cm) | 97.8 |
Overall Height (mm) | 978 |
Overall Length (cm) | 66 |
Overall Length (mm) | 660 |
Overall Width (cm) | 61 |
Overall Width (mm) | 610 |
Power Rating (HP) | 2.8 |
Power Rating (W) | 2088.0 |
Power Rating (kW) | 2.09 |
Power Source | Electric |
Pressure Control Type | SmartControl 4.0 |
Pump Mount Type | QuikChange |
Pump Rod Type | Chromex |
Pump Sleeve Material | Stainless Steel |
Weight (kg) | 59 |
Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass |
Features
Shipping & Returns
Add text about your shipping policy
Shipping & Returns
Add text about your shipping policy
Warranty
Add text about your product warranty
Warranty
Add text about your product warranty
Secure Payment
Add text about your payment
Secure Payment
Add text about your payment
Delivery & Shipping
GRACO Mark V HD 3-in-1 ProContractor Series Electric Airless Sprayer
Details
Work Smarter, Finish More Jobs. Mark HD 3-in-1 ProContractor Series electric airless texture sprayers are designed to deliver speed & performance so you can get to the next jobsite faster and increase your profits.
Features
- Endurance Vortex MaxLife Piston Pump
- Superior pump life
- Breakthrough vortex rotating rod technology
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages for high velocity flow to rotate piston for even wear
- Longest life packings and piston rod
- Long life ceramic and stainless steel balls included for maximum versatility
- MaxFlo 2 with Pack-Out Protection
- Less pack-out, more productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimized fluid passageways for the heaviest coatings
- BlueLink Job & Sprayer Management System
- Streamline your business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
- SmartControl 4.0 with ProGuard Protection System
- Precision Pressure Control
- Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
- ProGuard prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
- QuikReel Hose Management System
- Easy hose management
- Deploy and rewind up to 300 feet (90 meters) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
- ProConnect 2 Pump Replacement System
- Eliminate costly downtime
- Exchange pump in minutes
- No tools, pins or parts to lose
- FastFlush 2 System
- Fast cleaning now even FASTER
- Clean the pump 6X faster using ½ the water
- High-velocity fluid flow delivered with 60% higher motor speed
- Crushproof Inlet Strainer
- Durable filtration
- Stands up to harsh impacts to maintain even flow through filter
- MaxPower Motor & Precision Advantage Drive
- Proven power and performance for all painting applications
- High-torque brushless design with a Lifetime Warranty
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation and a lifetime warranty
- Additional Features:
- WatchDog Pump Protection System
- Easy Out Filter Manifold
- Heavy-Duty Prime Valve
- Rugged, Durable Cart Design
Parts & Accessories
- 16C975: Pivot Mount Plate
- 105510: Spring (Hi-Collar) Lock Washer
- 15E891: Axle Clip
- 156306: Flat Washer
- 119509: Pneumatic Wheel
- 106115: Lock Spring (Hi-Collar) Washer
- 121311: NPT X JIC Connector Fitting
- 276974: Leg Cap
- 102982: O-Ring Packing
- 116038: Wave Spring Washer
- 111040: Nylock Lock Nut
- 16X833: 3/8 NPSM Quick Disconnect Fitting
- 120583: Hand Nut
- 114672: Thrust Washer
- 278083: Ultra Platinum Hose Guide
- 114699: Thrust Washer
- 116192: Thrust Washer
- 24J081: Ultra Platinum Formed Tube
- 16X834: 3/8 NPT QD Pump Fitting
- 15V573: 1-11 1/2 NPSM Crush Proof Strainer
- 24V024: 1095/1595 Cover Repair Kit
- 16C457: Pail Hanger
- 16X324: Large Pump Clamp
- 287282: 7/10/1595 Shield Motor Repair Kit
- 24Y426: Platinum 1095/Mark X HI Frame
- 248215: Intake Tube Repair Kit
- 16X203: Drain Line Clip
- 24V088: 5900 PC II BRG HSG Repair Kit
- 257187: C104 1095 Motor Repair Kit
- 257188: C104 1595 Motor Repair Kit
- 24V085: Connecting Rod Repair Kit
- 241920: Deflector Threaded
- 287290: 1095 1595 Gear Repair Kit
- 287294: 1095 Drive Housing Repair Kit
- 287295: 1595 Drive HSNG Repair Kit
- 194173: Washer
- 17H833: Endurance Vortex MaxLife Piston Pump
- 244240: HI Return Line Repair Kit
- 24V029: 1/2 Coupled Hose Repair Kit
- 16X698: Cart (1095,1595) Prem Stand Hanger
- 15C982: Cart Cam
- 16X385: PC II 5900 Front Plate
- 118494: O-Ring Packing
- 17E925: Ultra Pro PC 2 Series Label
- 187437: Torque Label
- 276980: Grommet Cover
- 15D088: Motor Fan
- 222385: MED. Alert Warning Safety Label
- 278075: Wire Bracket
- 15Y118: Made in the USA Label
Graco Mark V HD 3-in-1 ProContractor Series Electric Airless Sprayer
Overview
Shipping & Returns
Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.
All returns must be pre-approved to ensure replacement and / or refund.
Shipping & Returns
Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.
All returns must be pre-approved to ensure replacement and / or refund.
Warranty
Read our complete warranty terms & conditions here.
Warranty
Read our complete warranty terms & conditions here.
Secure Payment
All our online payment methods are secured.
Secure Payment
All our online payment methods are secured.
- GO Instructions Graco Parts List for Texture Airless Spray Gun 308491EN-U
- GO Manual Graco Inline HD Texture Gun Operation Parts 309495EN-L
- GO Manual Graco Silver Plus - Flex Plus Spray Guns Manual 311254EN-N
- GO Manual Graco 695 795 1095 1595 Mark IV HD Mark V HD Mark VII HD Mark X HD Electric Airless Sprayers 3A6342EN-G
- GO Manual Graco Displacement Pump Repair 3A6583EN-A
- GO Manual Graco Displacement Pump Repair 3A6584EN-A
- Graco Manual Contractor PC Spray Guns Operation 3A6285EN-L
- Endurance Vortex MaxLife Piston Pump
- Superior pump life
- Breakthrough vortex rotating rod technology
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages for high velocity flow to rotate piston for even wear
- Longest life packings and piston rod
- Long life ceramic and stainless steel balls included for maximum versatility
- MaxFlo 2 with Pack-Out Protection
- Less pack-out, more productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimized fluid passageways for the heaviest coatings
- BlueLink Job & Sprayer Management System
- Streamline your business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
- SmartControl 4.0 with ProGuard Protection System
- Precision Pressure Control
- Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
- ProGuard prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
- QuikReel Hose Management System
- Easy hose management
- Deploy and rewind up to 300 feet (90 meters) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
- ProConnect 2 Pump Replacement System
- Eliminate costly downtime
- Exchange pump in minutes
- No tools, pins or parts to lose
- FastFlush 2 System
- Fast cleaning now even FASTER
- Clean the pump 6X faster using ½ the water
- High-velocity fluid flow delivered with 60% higher motor speed
- Crushproof Inlet Strainer
- Durable filtration
- Stands up to harsh impacts to maintain even flow through filter
- MaxPower Motor & Precision Advantage Drive
- Proven power and performance for all painting applications
- High-torque brushless design with a Lifetime Warranty
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation and a lifetime warranty
- Additional Features:
- WatchDog Pump Protection System
- Easy Out Filter Manifold
- Heavy-Duty Prime Valve
- Rugged, Durable Cart Design
Specifications
Amperage (A) | 20 |
---|---|
Compatible Replacement Pump | 17H829 |
Convertible | Non-Convertible |
Engine Size (HP) | 2.8 |
Features | Endurance Chromex Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, FastFlush 2, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve |
Fluid Outlet Size (cm) | 0.9525 |
Fluid Outlet Size (mm) | 9.525 |
Fluid Outlet Thread Type | NPSM |
Frame Configuration | Hi-Boy |
Frequency (Hz) | 50/60 |
Includes | Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose |
Maximum Flow Rate (L/min) | 5.1 |
Maximum Sound Pressure Level (dB(A)) | 82 |
Maximum Tip Size (cm) | 0.0991 |
Maximum Tip Size (mm) | 0.9906 |
Maximum Tip Size 1 Gun (cm) | 0.0991 |
Maximum Tip Size 1 Gun (mm) | 0.9906 |
Maximum Working Pressure (MPa) | 22.8 |
Maximum Working Pressure (bar) | 228 |
Maximum Working Pressure (kPa) | 22800 |
Minimum Generator Power (W) | 5000 |
Model | Mark HD |
Motor Type | MaxPower |
Number of Guns | 1 |
Overall Height (cm) | 97.8 |
Overall Height (mm) | 978 |
Overall Length (cm) | 66 |
Overall Length (mm) | 660 |
Overall Width (cm) | 61 |
Overall Width (mm) | 610 |
Power Rating (HP) | 2.8 |
Power Rating (W) | 2088.0 |
Power Rating (kW) | 2.09 |
Power Source | Electric |
Pressure Control Type | SmartControl 4.0 |
Pump Mount Type | QuikChange |
Pump Rod Type | Chromex |
Pump Sleeve Material | Stainless Steel |
Weight (kg) | 59 |
Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass |
Features
-
pagination here
Recently Viewed Products
-
LG Linda G1 year and 1 month ago
One of the nicest and friendliest companies I have had the pleasure to deal with. Helpful beyond words in regards to what air sprayer to buy for hubby for a surprise. They explained options and advised what machine to get for the purpose we needed it for. Their shipping was super fast and I have no hesitation at all in recommending them.
Customer service is pretty slack in companies now but, you guys exemplify what good old customer service used to be - THANK YOU!!!! -
TC Todd Cox2 years and 9 months ago
I purchased a Mirka Derios Sander and extractor setup fro Go Industrial. The customer service was excellent and the salesman knew the products well. I have since used the Mirka sander and extractor and this piece of kit is amazing.
Zero dust particles escaped the vacuum extraction and the finish with the abrasive pads is amazing. I would definitely recommend Go industrial for any products that is needed and I know I will be returning there in the future for more purchases.
Great work Go Industrial team.
-
SP Shane Parry1 year and 8 months ago
Magnificent all round. Great service and great equipment. Cannot recommend these guys enough. Bloody legends check them out!!!!
-
JB John Bromhead1 year and 2 months ago
An absolutely impeccable process, from ordering, to the super fast delivery, down to the top quality of the product.
In 23yrs in the building, I have never dealt with a better, more efficient and knowledgeable rep in Jacob. His knowledge and ease of transitions the order is second to none! -
KR Kevin Reeve2 years and 9 months ago
Exceptional service and the videos they produce are great for a rookie like me. Responded to email for help within minutes.
I wish all companies were like these guys!
- Choosing a selection results in a full page refresh.
- Opens in a new window.
