GRACO Ultra Max II 695 ProContractor Series Hi-Boy Electric Airless Sprayer
SKU: 17E614GRACO Ultra Max II 695 ProContractor Series Hi-Boy Electric Airless Sprayer
Regular price
$7,539.90 AUD
Sale price
$7,539.90 AUD
Regular price
$9,834.00 AUD
Unit price
per
Save $2,294.10
Sold out
Inclusive of GST.
Shipping calculated at checkout.
In stock and ready to ship or collect in 1 to 2 days.
Delivery times vary as per courier.
Other payment options
Pickup available at GO Industrial
Usually ready in 2-4 days
GRACO Ultra Max II 695 ProContractor Series Hi-Boy Electric Airless Sprayer
Regular price
$7,539.90 AUD
Sale price
$7,539.90 AUD
Regular price
$9,834.00 AUD
Unit price
per
Save $2,294.10
Sold out
Features
- Endurance Vortex MaxLife Piston Pump
- Superior pump life
- Breakthrough Vortex rotating rod technology
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages for high velocity flow to rotate piston for even wear
- Repack pump in minutes with new QuikPak cartridge repair system
- SmartControl 4.0 with ProGuard Protection System
- Precision Pressure Control
- Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
- ProGuard prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
- BlueLink Job & Sprayer Management App
- Streamline Your Business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
- QuikReel Hose Management System
- Easy hose management
- Deploy and rewind up to 300 feet (90 meters) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
- MaxPower Motor & Advantage Drive
- Get more work done
- Proven performance for all painting applications
- High-torque brushless design
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation
- Lifetime Warranty on motor and drive train
- ProConnect 2 Pump Replacement System
- Eliminate Costly Downtime
- Exchange pump in minutes
- Pin-less design needs no tools
- FastFlush 2 System
- Fast cleaning now even FASTER
- Clean the pump 6X faster using ½ the water
- High-velocity fluid flow delivered with 60% higher motor speed
- Durable Filtration
- Easy Out Filter provides easy maintenance and less clogging
- Crushproof Inlet Strainer stands up to harsh impacts to maintain even flow
- Additional Features
- Heavy Duty Prime Valve
- Rugged, Durable Cart Design
- Contractor PC Spray Gun
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
GRACO Ultra Max II 695 ProContractor Series Electric Airless Sprayer, Hi-Boy
Overview
The Ultra Max II 695 ProContractor Series provides reliability and performance with a 2.0 hp brushless DC motor, Endurance Vortex MaxLife Pump and BlueLink Job & Sprayer Management System plus timesaving features like the ProConnect 2 Pump Replacement System and QuikReel Hose Management System.
Work Smarter, Finish More Jobs. ProContractor Series electric airless sprayers are built specifically for professional remodeling and repainting contractors looking to increase the number of larger jobs they spray and the performance to spray a wide variety of coatings with a variety of tip sizes.
Specifications
Standard Lo-Boy 17E610
| Amperage (A) | 15 |
|---|---|
| Compatible Material | Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler |
| Engine Size (HP) | 2 |
| Features | Endurance Chromex Pump, SmartControl 4.0, BlueLink System, MaxPower Brushless, Advantage Drive, FastFlush 2, Easy Out Filter, Heavy-Duty Prime Valve, WatchDog, Contractor PC Gun |
| Filter Mesh Size | 60 |
| Fluid Outlet Size (cm) | 0.635 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Lo-Boy |
| Frequency (Hz) | 50/60 |
| Hose Inlet Diameter (cm) | 0.635 |
| Hose Inlet Diameter (mm) | 6.35 |

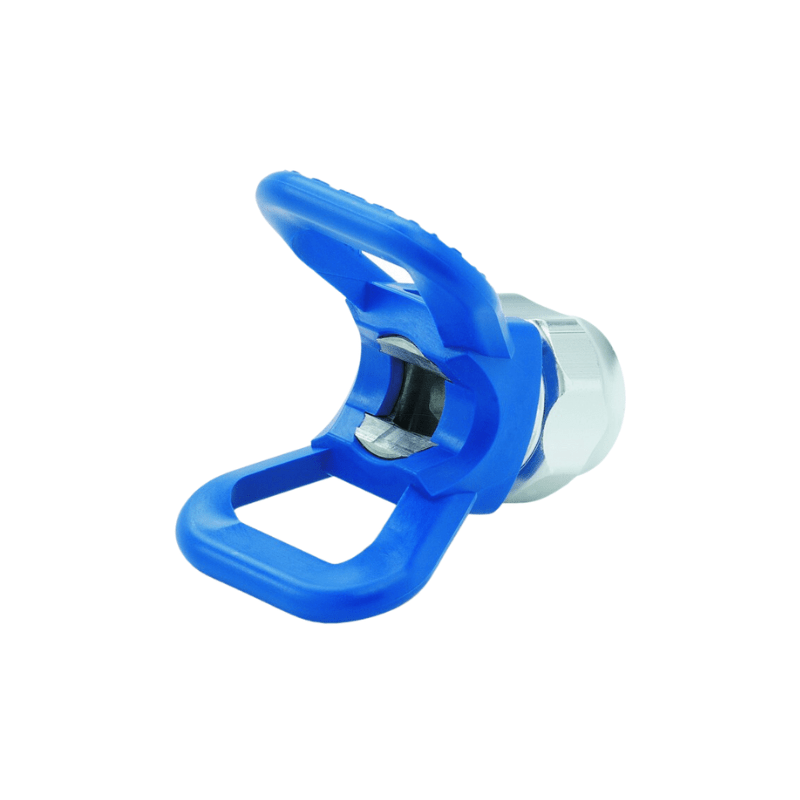

| Includes | Contractor PC Gun, RAC X LTX 517 Tip, RAC X Guard, BlueMax II Hose 1/4 in x 50 ft |
| Maximum Flow Rate (L/min) | 3.6 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (cm) | 0.0787 |
| Maximum Tip Size (mm) | 0.7874 |
| Maximum Tip Size 1 Gun (cm) | 0.0787 |
| Maximum Tip Size 1 Gun (mm) | 0.7874 |
| Maximum Tip Size 2 Guns (cm) | 0.0584 |
| Maximum Tip Size 2 Guns (mm) | 0.584 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 228 |
| Maximum Working Pressure (kPa) | 22800 |
| Minimum Generator Power (W) | 5000 |
| Model | Ultra Max II |
| Motor Type | MaxPower |
| Number of Guns | 2 |
| Overall Height (cm) | 69.9 |
| Overall Height (mm) | 699 |
| Overall Length (cm) | 94 |
| Overall Length (mm) | 940 |
| Overall Width (cm) | 57.2 |
| Overall Width (mm) | 572 |
| Power Rating (HP) | 2.0 |
| Power Rating (W) | 1491.4 |
| Power Rating (kW) | 1.49 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Hardened SST |
| Pump Type | Endurance |
| Recommended Annual Usage | 100-200 gallons per week |
| Series | 695 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Weight (kg) | 43 |
| Wetted Material |
Acetal, Aluminum, Brass, Leather, Nylon, |
Standard Hi-Boy 17E613
| Amperage (A) | 15 |
|---|---|
| Compatible Material | Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler |
| Engine Size (HP) | 2 |
| Features | Endurance Chromex Pump, SmartControl 4.0, BlueLink System, MaxPower Brushless, Advantage Drive, FastFlush 2, Easy Out Filter, Heavy-Duty Prime Valve, WatchDog, Contractor PC Gun |
| Filter Mesh Size | 60 |
| Fluid Outlet Size (cm) | 0.635 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50/60 |
| Hose Inlet Diameter (cm) | 0.635 |
| Hose Inlet Diameter (mm) | 6.35 |
| Includes | Contractor PC Gun, RAC X LTX 517 Tip, RAC X Guard, BlueMax II Hose 1/4 in x 50 ft |
| Maximum Flow Rate (L/min) | 3.6 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (cm) | 0.0787 |
| Maximum Tip Size (mm) | 0.7874 |
| Maximum Tip Size 1 Gun (cm) | 0.0787 |
| Maximum Tip Size 1 Gun (mm) | 0.7874 |
| Maximum Tip Size 2 Guns (cm) | 0.0584 |
| Maximum Tip Size 2 Guns (mm) | 0.584 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 228 |
| Maximum Working Pressure (kPa) | 22800 |
| Minimum Generator Power (W) | 5000 |
| Model | Ultra Max II |
| Motor Type | MaxPower |
| Number of Guns | 2 |
| Overall Height (cm) | 98.4 |
| Overall Height (mm) | 984 |
| Overall Length (cm) | 66 |
| Overall Length (mm) | 660 |
| Overall Width (cm) | 57.2 |
| Overall Width (mm) | 572 |
| Power Rating (HP) | 2.0 |
| Power Rating (W) | 1491.4 |
| Power Rating (kW) | 1.49 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Hardened SST |
| Pump Type | Endurance |
| Recommended Annual Usage | 100-200 gallons per week |
| Series | 695 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Weight (kg) | 43 |
| Wetted Material | Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
ProContractor 17E614
| Amperage (A) | 15 |
|---|---|
| Compatible Material | Interior Latex, Exterior Latex,Oil-Based Primer, Acrylics, Block Filler |
| Engine Size (HP) | 2 |
| Features | Endurance Vortex MaxLife Pump, SmartControl 4.0, BlueLink System, QuikReel, MaxPower Brushless, Advantage Drive, ProConnect 2, FastFlush 2, Easy Out Filter, Crushproof Inlet Strainer, Heavy- Duty Prime Valve, WatchDog, Contractor PC Gun |
| Filter Mesh Size | 60 |
| Fluid Outlet Size (cm) | 0.635 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50/60 |
| Hose Inlet Diameter (cm) | 0.635 |
| Hose Inlet Diameter (mm) | 6.35 |
| Includes | Contractor PC Gun, RAC X LTX 517 Tip, RAC X Guard, BlueMax II Hose 1/4 in x 50 ft |
| Maximum Flow Rate (L/min) | 3.6 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (cm) | 0.0787 |
| Maximum Tip Size (mm) | 0.7874 |
| Maximum Tip Size 1 Gun (cm) | 0.0787 |
| Maximum Tip Size 1 Gun (mm) | 0.7874 |
| Maximum Tip Size 2 Guns (cm) | 0.0584 |
| Maximum Tip Size 2 Guns (mm) | 0.584 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 228 |
| Maximum Working Pressure (kPa) | 22800 |
| Minimum Generator Power (W) | 5000 |
| Model | Ultra Max II |
| Motor Type | MaxPower |
| Number of Guns | 2 |
| Overall Height (cm) | 98.4 |
| Overall Height (mm) | 984 |
| Overall Length (cm) | 66 |
| Overall Length (mm) | 660 |
| Overall Width (cm) | 57.2 |
| Overall Width (mm) | 572 |
| Power Rating (HP) | 2.0 |
| Power Rating (W) | 1491.4 |
| Power Rating (kW) | 1.49 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife |
| Pump Sleeve Material | MaxLife |
| Pump Type | Endurance Vortex |
| Recommended Annual Usage | 100-200 gallons per week |
| Series | 695 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Weight (kg) | 43 |
| Wetted Material | Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
- Endurance Vortex MaxLife Piston Pump
- Superior pump life
- Breakthrough Vortex rotating rod technology
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages for high velocity flow to rotate piston for even wear
- Repack pump in minutes with new QuikPak cartridge repair system
- SmartControl 4.0 with ProGuard Protection System
- Precision Pressure Control
- Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
- ProGuard prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
- BlueLink Job & Sprayer Management App
- Streamline Your Business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
- QuikReel Hose Management System
- Easy hose management
- Deploy and rewind up to 300 feet (90 meters) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
- MaxPower Motor & Advantage Drive
- Get more work done
- Proven performance for all painting applications
- High-torque brushless design
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation
- Lifetime Warranty on motor and drive train
- ProConnect 2 Pump Replacement System
- Eliminate Costly Downtime
- Exchange pump in minutes
- Pin-less design needs no tools
- FastFlush 2 System
- Fast cleaning now even FASTER
- Clean the pump 6X faster using ½ the water
- High-velocity fluid flow delivered with 60% higher motor speed
- Durable Filtration
- Easy Out Filter provides easy maintenance and less clogging
- Crushproof Inlet Strainer stands up to harsh impacts to maintain even flow
- Additional Features
- Heavy Duty Prime Valve
- Rugged, Durable Cart Design
- Contractor PC Spray Gun
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
Features
What is included in the box
-
Save $2 -
Save $17.10 -
Save $6.20
Join 190+ Happy GOers
Over 16,000 Orders Shipped
An absolutely impeccable process, from ordering, to the super fast delivery, the the top quality of the product.
"Mirka is everything they say it is. Saved me so much time hand sanding. The service was great and the parcels arrived so quick."
Bob Ware joined the Dust-Free Sanding Revolution
55+ GO Staff & Growing, Australia-wide.
One of the nicest and friendliest companies I have had the pleasure to deal with. Customer service is pretty slack in companies now but, you guys exemplify what good old customer service used to be - THANK YOU!!!!
The service from the staff was above expectations. The setup and use videos were a great asset also and sealed the deal for me.
Keep up the great work GO Industrial.
- Choosing a selection results in a full page refresh.
- Opens in a new window.
