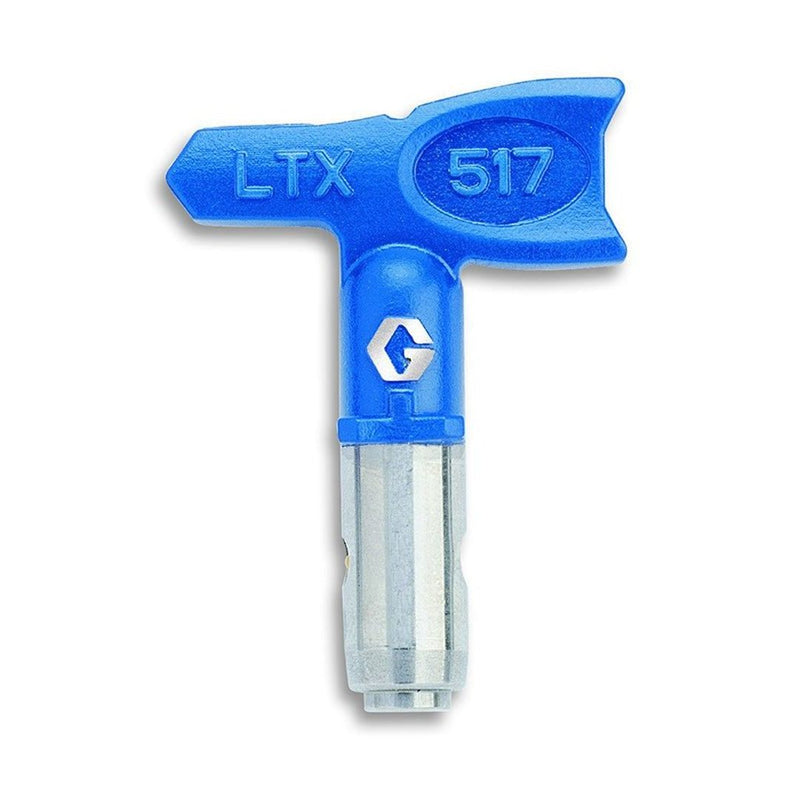

GRACO RAC X LTX Switch Tips
Features
Best Tip on the Market
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
Easy to Identify Tip Size
- Large raised tip size numbers are always legible – even when covered with paint
Superior Tip Design
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
Graco RAC X LTX Switch Tips
Overview
- Reverse-A-Clean (RAC) SwitchTips
- The highest performing and longest lasting tips in the industry
- RAC X is designed to maintain a wider spray pattern for a longer period of time.
- A wider spray fan means fewer passes with the gun and better productivity.
- If you're looking for a finer finish, please view our Rac X Fine Finish Low Pressure SwitchTips range, or Low Pressure SwitchTips!
Related:
Airless Spray Tips Made Simple - A Step-by-Step Guide to Choose the Right Tip
Specifications
| ORIFICE DIAMETER (IN) | 0.017 |
|---|---|
| MAXIMUM WORKING PRESSURE (KPA) | 28000 |
| MAXIMUM WORKING PRESSURE (PSI) | 4050 |
| MAXIMUM WORKING PRESSURE (BAR) | 280 |
| COMPATIBLE MATERIAL | Latex Paint, Latex Stain, Oil-Based Paint, Oil-Based Stain |
| FOR USE WITH | RAC X HandTite Tip Guard |
| TYPE | Spray Tip |
| MAXIMUM FAN WIDTH (IN) | 10 |
| MAXIMUM FAN WIDTH (MM) | 305 |
| TIP TYPE | Airless |
| PATTERN SIZE (IN) | 10 to 12 |
| MAXIMUM FAN WIDTH (CM) | 25 |
| MINIMUM FAN WIDTH (IN) | 10 |
| MINIMUM FAN WIDTH (MM) | 254 |
| PATTERN SIZE (MM) | 254 to 304.8 |
| MODEL | RAC X |
| SERIES | LTX SwitchTip |
| MATERIAL | Tungsten Carbide |
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
Features
Best Tip on the Market
Easy to Identify Tip Size
Superior Tip Design
