GRACO 30 Mesh Easy Out Pump Long Manifold Filter

SKU 244071
Afterpay Zip PayPal LeaseGO
$28.50
Tax included. Shipping calculated at checkout.
Quantity
Contact for pricing
In Stock

Pickup available at GO Industrial

Usually ready in 1 hour

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Frequently bought together

Bundle the essentials.

Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.

Total price
Product details

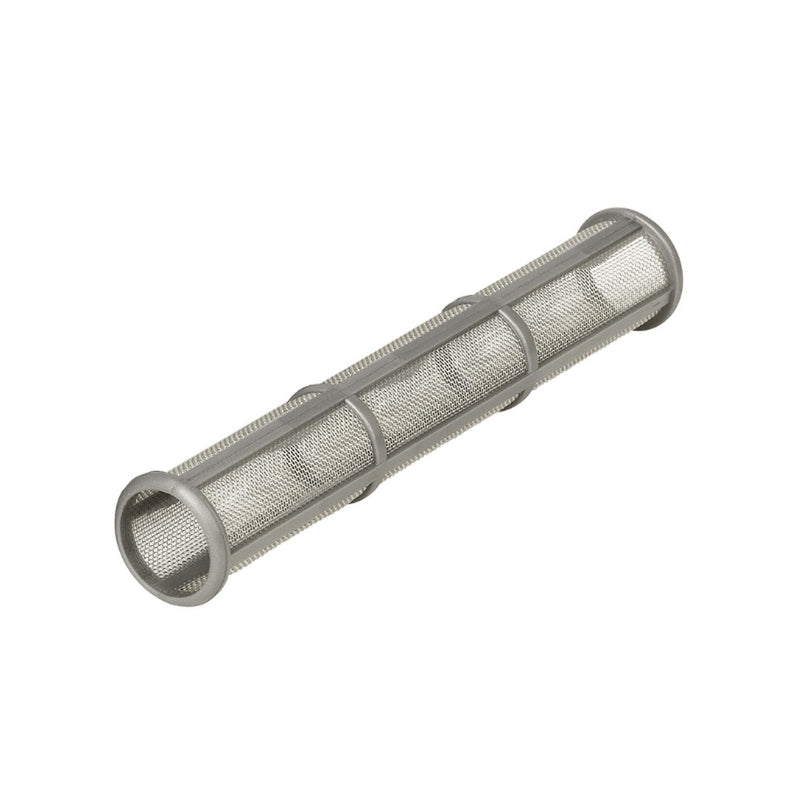

Easy Out manifold filter 244071 is the long, 30 mesh element that sits in the pump manifold. Graco's Easy Out design filters from the inside out, so the debris collects on the inside of the element rather than the outside. It drops clear when you pull it, instead of wiping itself off into the manifold on the way past.

30 mesh is the coarse end of the range and it is the one to run with heavy latex, block filler and elastomeric coatings, and with traffic paint on a striping rig. Going finer than the material wants is the usual cause of a filter that blinds off halfway through a drum.

This is the long element. The same 30 mesh in the short body is 246425, and the long body also comes in 60 mesh as 244067 and 100 mesh as 244068. Fitted to Ultra Max, GMAX, GH 200 and HydraMax airless sprayers, and to the RPS 2900 filter assembly on RoadLazer RoadPak and RoadPak HD striping systems.

Features
  • Inside-Out Filtering: The Easy Out design filters from the inside out, so debris lifts out with the element instead of being scraped back into the manifold.

  • 30 Mesh: The coarse end of the range, suited to heavy latex, block filler, elastomeric coatings and traffic paint.

  • Long Body: The long element, for manifolds that take it. The same mesh in the short body is 246425.

  • Striping and Airless: Fits Ultra Max, GMAX, GH 200 and HydraMax airless sprayers, and the RPS 2900 filter assembly on RoadPak and RoadPak HD.

  • Genuine Graco Element: Supplied as Graco part 244071, so it seats in the manifold without bypassing around the element.
Specifications
GRACO PART NUMBER 244071
TYPE Easy Out Pump Manifold Filter
MESH 30
LENGTH Long
COLOUR Gray
ORIENTATION Vertical
FILTERING DIRECTION Inside Out
SUITS MACHINE Ultra Max, GMAX, GH 200, HydraMax, RoadLazer RoadPak, RoadPak HD
POSITION, ROADPAK Reference 240D, Filter Assembly 24G986, Manual 3A5386
RECOMMENDED MATERIALS Heavy Latex, Block Filler, Elastomeric, Traffic Paint
SAME MESH, SHORT BODY 246425
LONG BODY, OTHER MESH 244067 (60 Mesh), 244068 (100 Mesh)
SUPPLIED 1 per card
Warranty

Packings, o-rings and valve balls are wear parts. They are not covered by warranty in normal use and should be replaced as part of routine pump servicing. Manufacturing defects are covered by Graco's standard 12 month warranty from date of sale. GO Industrial is an Authorised Graco Warranty Repairer and Service Centre.

Read full warranty guide ›

Manuals
Catalogue
Shipping & Returns

Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.

30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.

Read full policy ›

FAQs

Common questions.

Which machines does this filter fit?
Ultra Max, GMAX, GH 200 and HydraMax airless sprayers, and the RPS 2900 filter assembly on RoadLazer RoadPak and RoadPak HD striping systems, where it is reference 240D in parts manual 3A5386.
What does 30 mesh suit?
The coarse end of the range: heavy latex, block filler, elastomeric coatings and traffic paint. Finer meshes filter better but blind off faster on heavy material, so match the mesh to what you are spraying rather than defaulting to the finest.
What is the difference between long and short?
Body length only, the mesh is the same. This is the long element. The short 30 mesh equivalent is 246425. Use whichever your pump manifold is built for.
What other mesh sizes are in the long body?
60 mesh is 244067 and 100 mesh is 244068. Short bodies run 30, 60, 100 and 200 mesh.
What makes Easy Out different from an ordinary filter?
It filters from the inside out, so the debris collects inside the element. When you pull it, the debris comes out with it rather than being wiped off against the manifold on the way past. Less mess and fewer clogs.
Can GO Industrial do the work for me?
Yes. Our Deception Bay workshop services Graco line striping systems and we are an Authorised Graco Warranty Repairer and Service Centre. Send the pump in on its own or book the whole rig through. Chat with us or email sales@goind.com.au to get it booked.
