The Basics
Graco Swivel Adaptor that connects to most airless spray guns or any Graco tip extension and can be used with a Pressure Roller or JetRoller.
Even a Small Part Can Make a Critical Difference
Protect your business with genuine Graco parts
When you need replacement parts, you could purchase cheaper alternatives. But why risk it? Off-the-shelf parts may hinder performance and possibly even damage your Graco equipment. You invest in Graco equipment because it is superior quality. It’s what your business depends on. So protect your investment and your future. Trust only genuine Graco parts.
Each quality part is dependent on another
Graco equipment is designed as a unified system, not as a collection of stand-alone parts. Every part is designed with a careful eye toward the parts it will interact with, and adjusted accordingly. When any of a system’s parts is replaced with a lower quality, non-Graco part, the result may be a ripple effect that degrades not only its own functionality, but that of other parts throughout the system.
Designed, tested and built for reliability Great design is in the details.
At Graco, the engineering team designs and specifies every part that’s built into their machines, even down to the O-rings. They test and re-test all the parts to make sure they provide you with outstanding performance, long life and durability.
- are available in 3’ and 6’ configurations
- provide better spray control and less fatigue.
- Balanced design; no excessive weight at the end of pole
- ideal for high-pressure spraying or pressure roller applications.
- Use with Contractor In-Line Valve and the CleanShot Shut-Off Valve to create different
- length pole guns
- Smaller diameter tube is lightweight and can be used for interior pressure rolling
- Ability to attach directly to an airless spray gun – order 45? adapter 224399 for increased comfort while rolling
- can be attached directly to an airless gun making them ideal for spraying ceilings, overhangs and decks.
- Unique needle valve shuts fluid off at the tip for a clean pattern
- no spitting 180? tip swivel provides versatility when spraying walls and ceilings
- Pressure-actuated – operates at a minimum of 700 psi (4.8 MPa, 48 bar)
- can be attached directly to any extension and provides a clean fluid shutoff at the tip – no spitting.
- Can be used with other extended reach tools such as Heavy-Duty Extensions and Telescoping Extensions for Pressure Rolling
- Provides a straight connection to extensions for the most optimal rolling position
- In-handle paint filter and built-in swivel connection for top spraying performance
- Ability to rotate 180? allows spraying in any position
FOR USE WITH | Extension Roller Kit |
---|---|
MAXIMUM WORKING PRESSURE (BAR) | 250 |
MAXIMUM WORKING PRESSURE (KPA) | 25000 |
MAXIMUM WORKING PRESSURE (PSI) | 3600 |
OVERALL HEIGHT (CM) | 4.445 |
OVERALL HEIGHT (IN) | 1.75 |
OVERALL HEIGHT (MM) | 44.45 |
OVERALL LENGTH (CM) | 2.54 |
OVERALL LENGTH (IN) | 1 |
OVERALL LENGTH (MM) | 25.4 |
TYPE | Adapter |
END A INLET SIZE (MM) | 22.225 |
END A INLET THREAD GENDER | Male |
END A INLET THREAD TYPE | UNF |
END B INLET SIZE (IN) | 0.875 |
END A INLET SIZE (IN) | 0.875 |
END B INLET SIZE (MM) | 22.225 |
END B INLET THREAD GENDER | Female |
END B INLET THREAD TYPE | UNF |
MODEL | Graco |
Pole Guns
Heavy-duty extensions
Airless Tip Extensions
CleanShot Shut-Off Valve
Contractor In-Line Valve
Shipping & Returns
Add text about your shipping policy
Shipping & Returns
Add text about your shipping policy
Warranty
Add text about your product warranty
Warranty
Add text about your product warranty
Secure Payment
Add text about your payment
Secure Payment
Add text about your payment
Delivery & Shipping

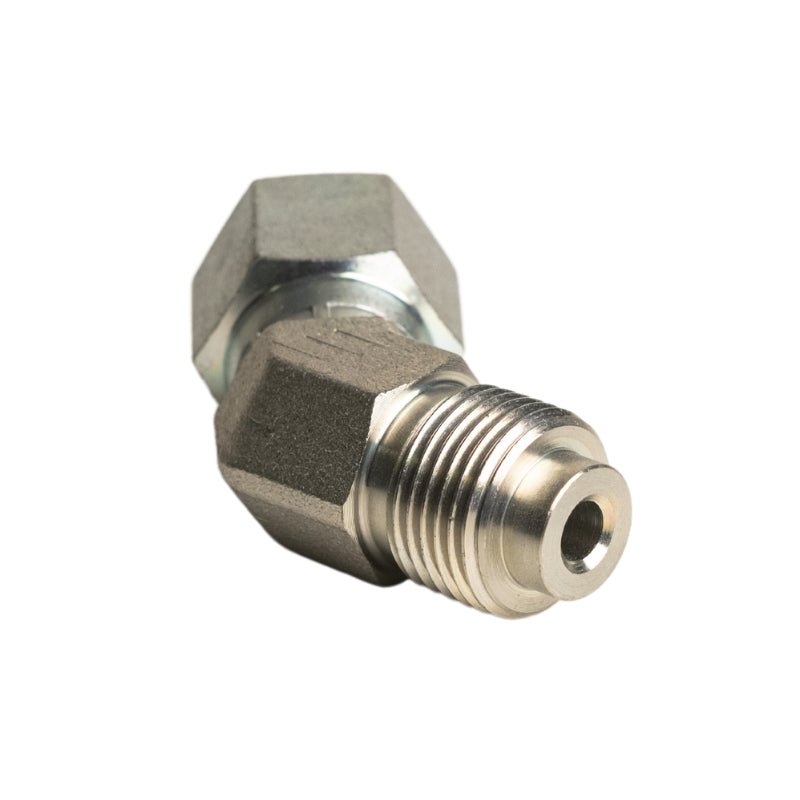

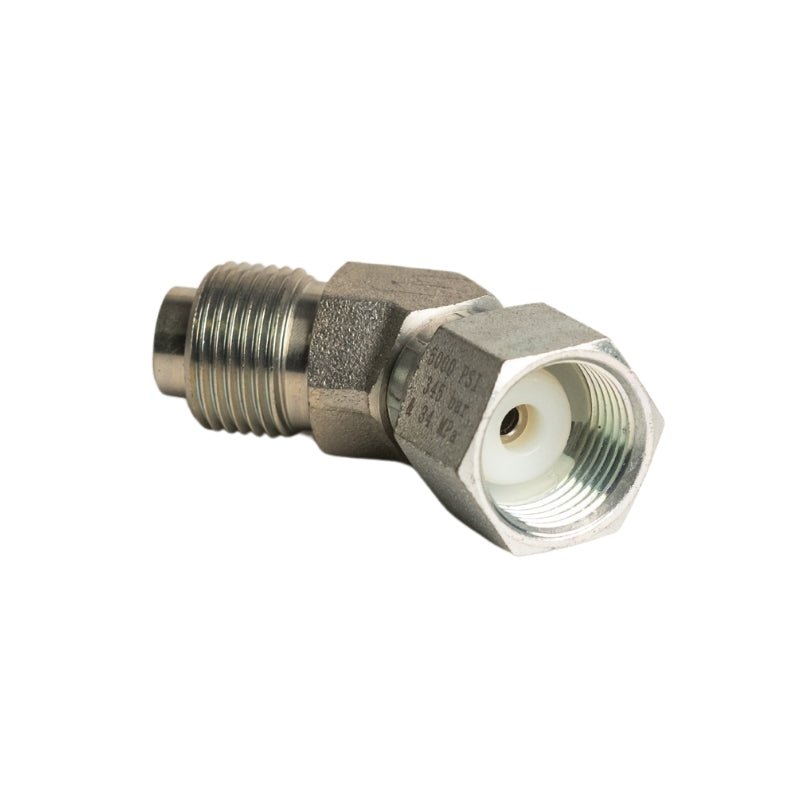

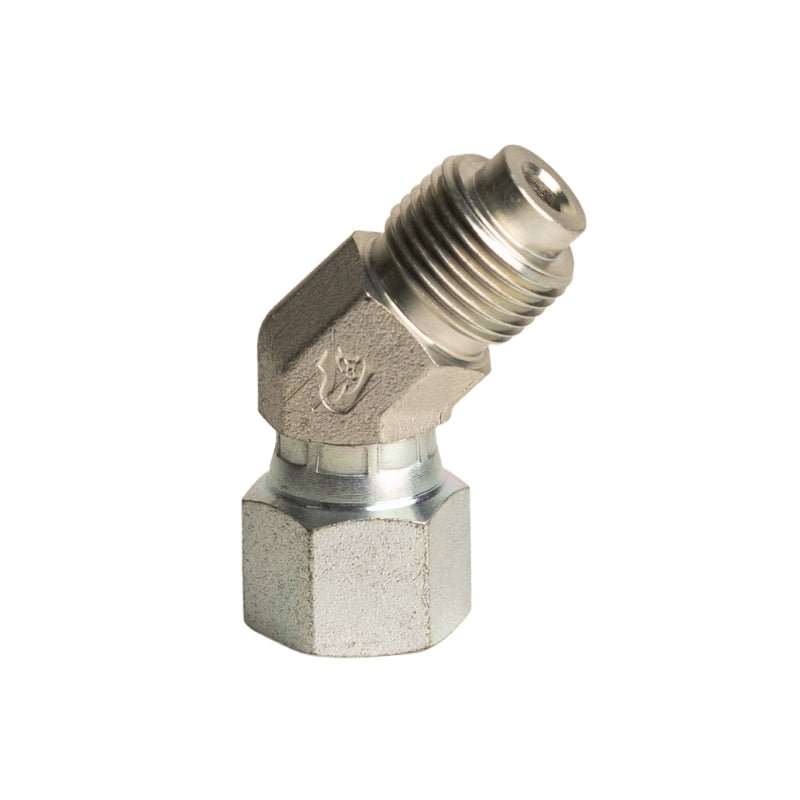

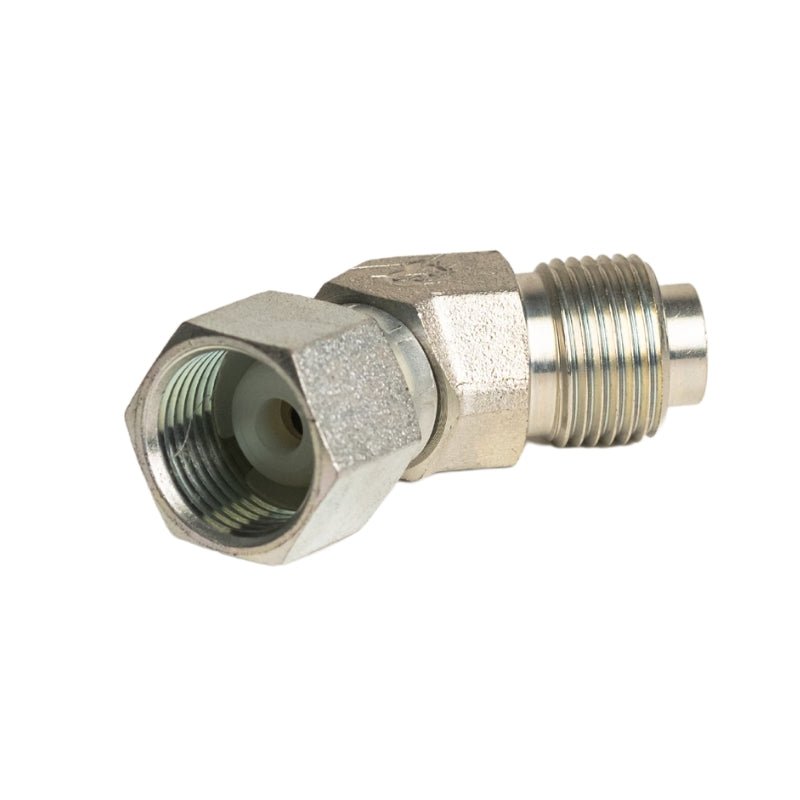

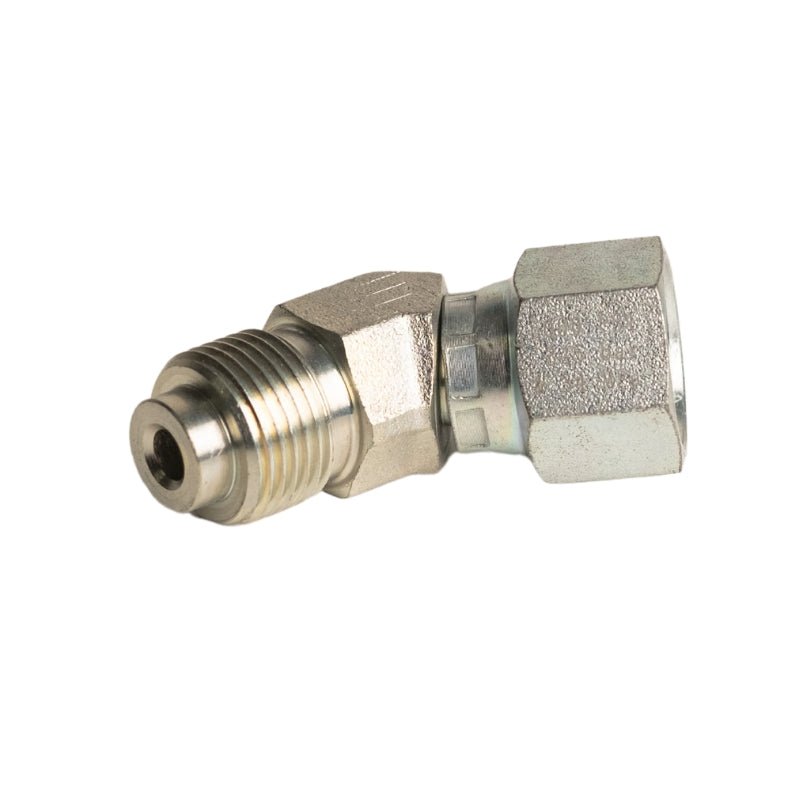

GRACO 45-Degree Swivel Adaptor
Even a Small Part Can Make a Critical Difference
Protect your business with genuine Graco parts
When you need replacement parts, you could purchase cheaper alternatives. But why risk it? Off-the-shelf parts may hinder performance and possibly even damage your Graco equipment. You invest in Graco equipment because it is superior quality. It’s what your business depends on. So protect your investment and your future. Trust only genuine Graco parts.
Each quality part is dependent on another
Graco equipment is designed as a unified system, not as a collection of stand-alone parts. Every part is designed with a careful eye toward the parts it will interact with, and adjusted accordingly. When any of a system’s parts is replaced with a lower quality, non-Graco part, the result may be a ripple effect that degrades not only its own functionality, but that of other parts throughout the system.
Designed, tested and built for reliability Great design is in the details.
At Graco, the engineering team designs and specifies every part that’s built into their machines, even down to the O-rings. They test and re-test all the parts to make sure they provide you with outstanding performance, long life and durability.
Pole Guns
- are available in 3’ and 6’ configurations
- provide better spray control and less fatigue.
- Balanced design; no excessive weight at the end of pole
Heavy-duty extensions
- ideal for high-pressure spraying or pressure roller applications.
- Use with Contractor In-Line Valve and the CleanShot Shut-Off Valve to create different
- length pole guns
- Smaller diameter tube is lightweight and can be used for interior pressure rolling
- Ability to attach directly to an airless spray gun – order 45? adapter 224399 for increased comfort while rolling
Airless Tip Extensions
- can be attached directly to an airless gun making them ideal for spraying ceilings, overhangs and decks.
CleanShot Shut-Off Valve
- Unique needle valve shuts fluid off at the tip for a clean pattern
- no spitting 180? tip swivel provides versatility when spraying walls and ceilings
- Pressure-actuated – operates at a minimum of 700 psi (4.8 MPa, 48 bar)
- can be attached directly to any extension and provides a clean fluid shutoff at the tip – no spitting.
Contractor In-Line Valve
- Can be used with other extended reach tools such as Heavy-Duty Extensions and Telescoping Extensions for Pressure Rolling
- Provides a straight connection to extensions for the most optimal rolling position
- In-handle paint filter and built-in swivel connection for top spraying performance
- Ability to rotate 180? allows spraying in any position
The Basics
Graco Swivel Adaptor that connects to most airless spray guns or any Graco tip extension and can be used with a Pressure Roller or JetRoller.
Shipping & Returns
Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.
All returns must be pre-approved to ensure replacement and / or refund.
Shipping & Returns
Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.
All returns must be pre-approved to ensure replacement and / or refund.
Warranty
Read our complete warranty terms & conditions here.
Warranty
Read our complete warranty terms & conditions here.
Secure Payment
All our online payment methods are secured.
Secure Payment
All our online payment methods are secured.
- are available in 3’ and 6’ configurations
- provide better spray control and less fatigue.
- Balanced design; no excessive weight at the end of pole
- ideal for high-pressure spraying or pressure roller applications.
- Use with Contractor In-Line Valve and the CleanShot Shut-Off Valve to create different
- length pole guns
- Smaller diameter tube is lightweight and can be used for interior pressure rolling
- Ability to attach directly to an airless spray gun – order 45? adapter 224399 for increased comfort while rolling
- can be attached directly to an airless gun making them ideal for spraying ceilings, overhangs and decks.
- Unique needle valve shuts fluid off at the tip for a clean pattern
- no spitting 180? tip swivel provides versatility when spraying walls and ceilings
- Pressure-actuated – operates at a minimum of 700 psi (4.8 MPa, 48 bar)
- can be attached directly to any extension and provides a clean fluid shutoff at the tip – no spitting.
- Can be used with other extended reach tools such as Heavy-Duty Extensions and Telescoping Extensions for Pressure Rolling
- Provides a straight connection to extensions for the most optimal rolling position
- In-handle paint filter and built-in swivel connection for top spraying performance
- Ability to rotate 180? allows spraying in any position
FOR USE WITH | Extension Roller Kit |
---|---|
MAXIMUM WORKING PRESSURE (BAR) | 250 |
MAXIMUM WORKING PRESSURE (KPA) | 25000 |
MAXIMUM WORKING PRESSURE (PSI) | 3600 |
OVERALL HEIGHT (CM) | 4.445 |
OVERALL HEIGHT (IN) | 1.75 |
OVERALL HEIGHT (MM) | 44.45 |
OVERALL LENGTH (CM) | 2.54 |
OVERALL LENGTH (IN) | 1 |
OVERALL LENGTH (MM) | 25.4 |
TYPE | Adapter |
END A INLET SIZE (MM) | 22.225 |
END A INLET THREAD GENDER | Male |
END A INLET THREAD TYPE | UNF |
END B INLET SIZE (IN) | 0.875 |
END A INLET SIZE (IN) | 0.875 |
END B INLET SIZE (MM) | 22.225 |
END B INLET THREAD GENDER | Female |
END B INLET THREAD TYPE | UNF |
MODEL | Graco |
Pole Guns
Heavy-duty extensions
Airless Tip Extensions
CleanShot Shut-Off Valve
Contractor In-Line Valve
-
