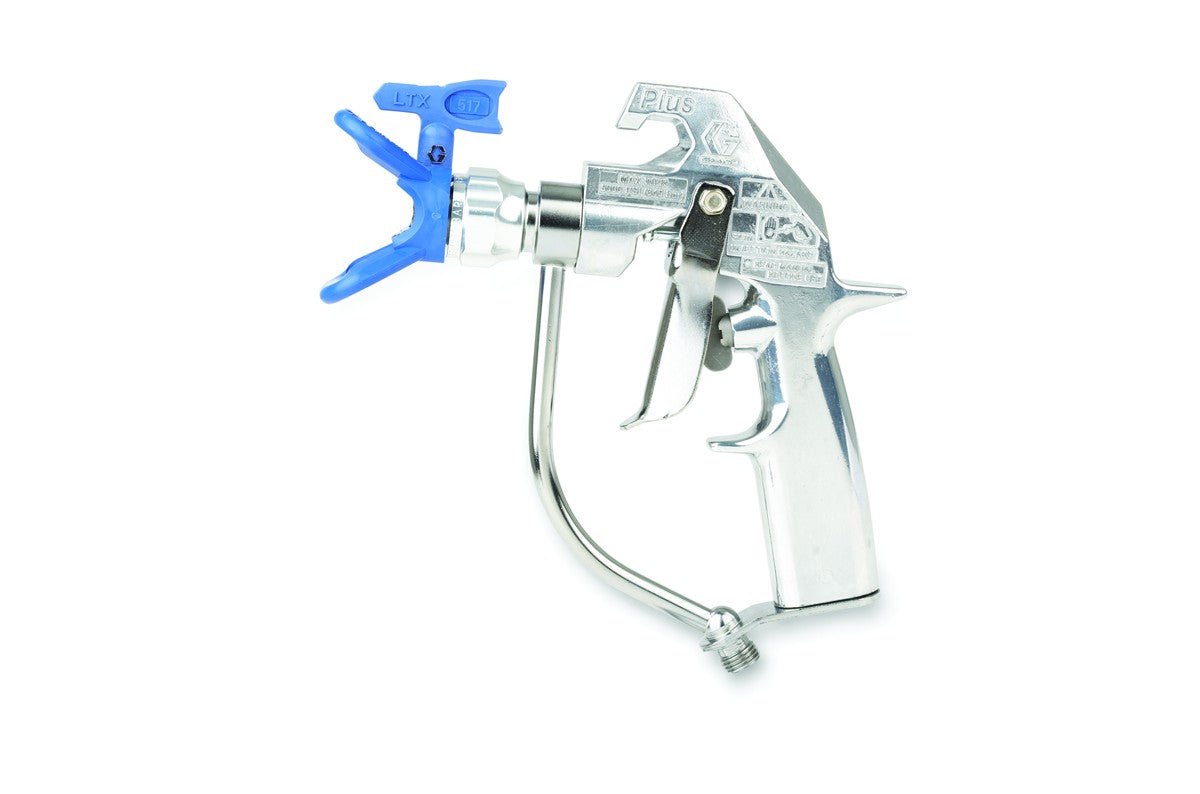

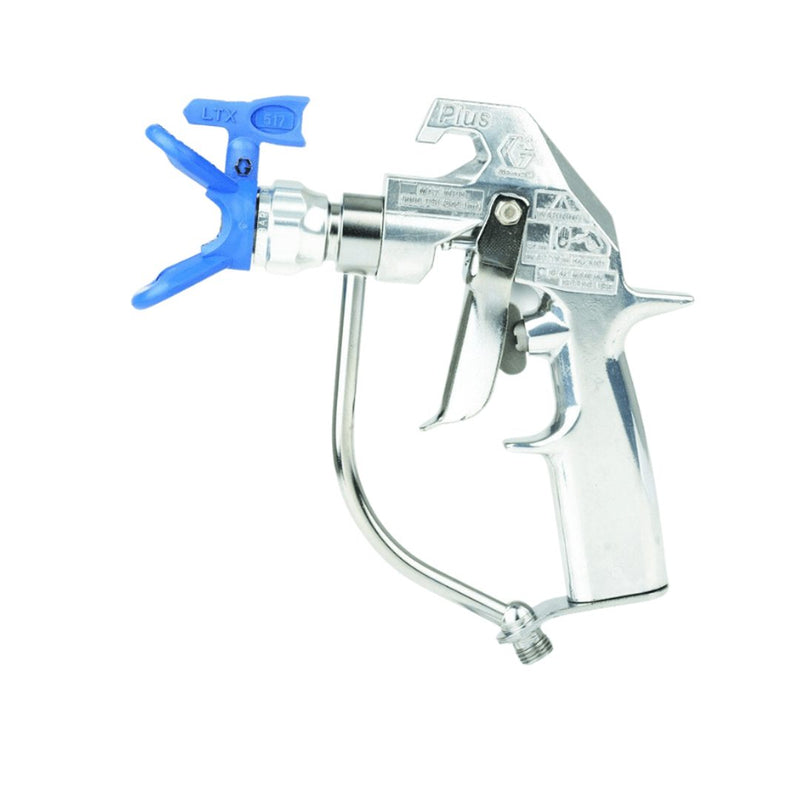

GRACO Spray Gun Airless Silver Plus Gun with RAC X 517
Regular price
$744.00 AUD
Sale price
$744.00 AUD
Regular price
Unit price
per
Save $0
Sold out
Features
- Rugged Design
- Durable forged aluminum withstands harsh work environments
- Lighter weight than competitive guns Polished body is easy to clean
- Exclusive Needle Design
- Factory set needle needs no trigger adjustments
- Guaranteed for life against breakage
- Maximum performance and long life
- Stainless Steel Fluid Tube
- Fluid flows directly to the tip through the gun fluid tube
- Provides the ability to spray heavier materials
- Including high solid coatings and mastics
- Optional Light Viscosity Needle Kit
- Provides faster shut-off to reduce spitting of light viscosity material
- Included in Silver Plus Gun (Part No. 235462), or as an optional Needle Kit (Part No. 235475)
Exclusive FlexSeal Needle
- Totally enclosed patented design eliminates needle’s exposure to fluid, extends needle life by 70%, and ensures consistent needle shut-off
- Fluid pushes on seal to quickly shut off needle and reduce spitting
- Spring is located outside fluid path for better flow
- Helps eliminate pack out and slow needle shut-off
Reduced Gun Spitting
- Repositioned seat is closer to the tip, eliminating 60% of the dead space
- Less paint left between needle and tip results in less spitting
Ergonomic Design
- Form-fitted handle provides maximum control and comfort
- Detachable trigger guard swings clear of gun handle for easy filter access
- Lightweight design reduces operator fatigue
Trigger Lock
- Smooth, lightweight trigger pull with simple, thumb-engaged safety lock
Modular Needle Design
- Simply remove the trigger cross pin and unthread front housing to change out needle
EasyGlide Swivel
- Exclusive dual-seat swivel design reduces sealing friction under pressure, making this the best swivel on the market!
Easy Out Gun Filter
- Filters from the inside out to prevent filter from collapsing
- Interchangeable with all Contractor series guns
Graco Spray Gun Airless Silver Plus Gun with RAC X 517
Overview
The Silver Plus Gun is known for its durability, long life, spraying performance and comfortable design. Rated at 5000 psi (345 bar, 34.5 MPa), this is the preferred gun for high-pressure applications. Includes a 2-finger trigger and a RAC X 517 SwitchTip and Guard.
Specifications
AIR INLET SIZE (CM) | 0.635 |
---|---|
AIR INLET SIZE (IN) | 1/4 |
AIR INLET SIZE (MM) | 6.35 |
AIR INLET THREAD GENDER | Male |
AIR INLET THREAD TYPE | NPSM |
BODY MATERIAL | Aluminum |
COMPATIBLE MATERIAL | Paint, Coating |
COMPONENT A INLET SIZE (CM) | 0.635 |
COMPONENT A INLET SIZE (IN) | 1/4 |
COMPONENT A INLET SIZE (MM) | 6.35 |
COMPONENT A INLET THREAD TYPE | NPSM |
COMPONENT TYPE | Single Component |
FLUID ORIFICE SIZE (CM) | 0.229 |
FLUID ORIFICE SIZE (IN) | 0.090 |
FLUID ORIFICE SIZE (MM) | 2.29 |
FOR USE WITH | High Pressure Application |
GUN ACTIVATION | Manual |
GUN TYPE | Airless Gun |
GUN WEIGHT (G) | 510 |
GUN WEIGHT (KG) | 0.51 |
GUN WEIGHT (LB) | 1.125 |
GUN WEIGHT (OZ) | 18 |
INCLUDES | RAC X 517, RAC X 517 SwitchTip, RAC X, RAC X HandTite Guard |
MAXIMUM FLUID PRESSURE (BAR) | 345 |
MAXIMUM FLUID PRESSURE (KPA) | 34500 |
MAXIMUM FLUID PRESSURE (PSI) | 5000 |
MAXIMUM FLUID TEMPERATURE (°C) | 50 |
MAXIMUM FLUID TEMPERATURE (°F) | 120 |
MODEL | Silver Plus |
PURGE METHOD | Liquid |
SERIES | Airless Spray Gun |
TRIGGER LOCK | Locking |
TRIGGER TYPE | Two-Finger |
TYPE | Spray Gun |
PRODUCT TYPE | Spray Gun |
SPRAY TYPE | Airless |
GUN INCLUDED | 1 |
APPLICATOR TYPE | Manual |
WETTED PARTS | Stainless Steel, Polyethylene, Polyurethane, Nylon, PTFE |
SOUND POWER LEVEL (DB(A)) | 87 |
SOUND PRESSURE LEVEL (DB(A)) | 78 |
MAXIMUM FLUID PRESSURE (MPA) | 34.5 |
- Rugged Design
- Durable forged aluminum withstands harsh work environments
- Lighter weight than competitive guns Polished body is easy to clean
- Exclusive Needle Design
- Factory set needle needs no trigger adjustments
- Guaranteed for life against breakage
- Maximum performance and long life
- Stainless Steel Fluid Tube
- Fluid flows directly to the tip through the gun fluid tube
- Provides the ability to spray heavier materials
- Including high solid coatings and mastics
- Optional Light Viscosity Needle Kit
- Provides faster shut-off to reduce spitting of light viscosity material
- Included in Silver Plus Gun (Part No. 235462), or as an optional Needle Kit (Part No. 235475)
- Totally enclosed patented design eliminates needle’s exposure to fluid, extends needle life by 70%, and ensures consistent needle shut-off
- Fluid pushes on seal to quickly shut off needle and reduce spitting
- Spring is located outside fluid path for better flow
- Helps eliminate pack out and slow needle shut-off
- Repositioned seat is closer to the tip, eliminating 60% of the dead space
- Less paint left between needle and tip results in less spitting
- Form-fitted handle provides maximum control and comfort
- Detachable trigger guard swings clear of gun handle for easy filter access
- Lightweight design reduces operator fatigue
- Smooth, lightweight trigger pull with simple, thumb-engaged safety lock
- Simply remove the trigger cross pin and unthread front housing to change out needle
- Exclusive dual-seat swivel design reduces sealing friction under pressure, making this the best swivel on the market!
- Filters from the inside out to prevent filter from collapsing
- Interchangeable with all Contractor series guns
Features
Exclusive FlexSeal Needle
Reduced Gun Spitting
Ergonomic Design
Trigger Lock
Modular Needle Design
EasyGlide Swivel
Easy Out Gun Filter
