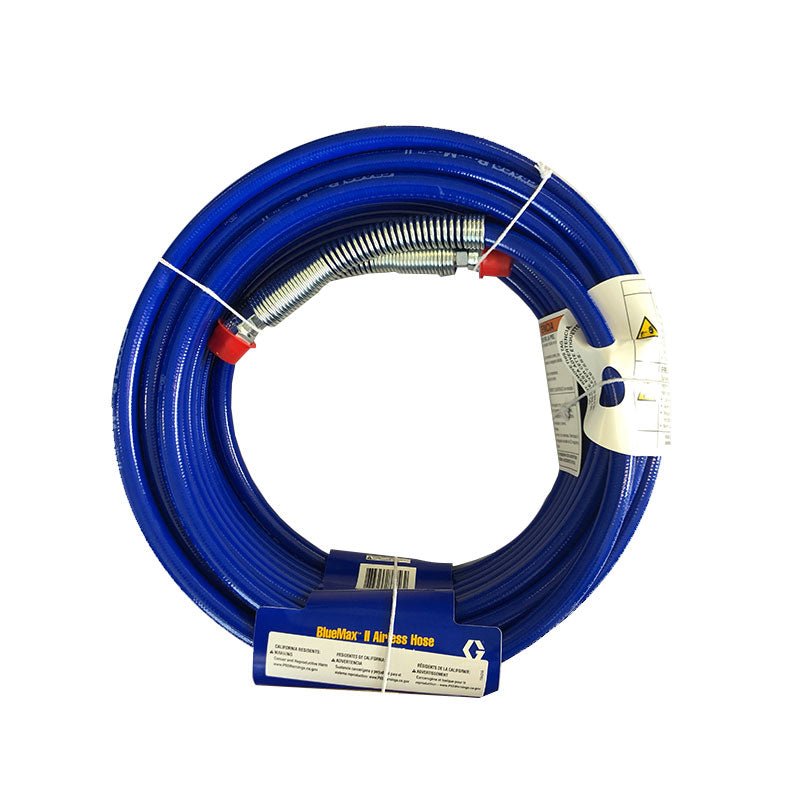

GRACO BlueMax II Airless Sprayer Hose Range
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
BlueMax II is a high performance airless hose built for superior flexibility and durability, so you get the best results from your airless sprayer. Note that 240794, 1/4 in x 50 ft (6.4 mm x 15 m), is the standard airless hose for contracting equipment.
Choosing the correct hose diameter for your length is important for maximising spraying pressure. A larger hose diameter gives greater pressure at the gun, while a smaller diameter or a longer length reduces pressure at the gun and can affect spray patterns. When coupling hoses, connect the larger diameter hose to the sprayer and the smaller diameter hose to the gun inlet, and use a whip hose for flexibility. The range covers 3/16 in (4.8 mm), 1/4 in (6.4 mm) and 3/8 in (9.5 mm) diameters, each suited to different applications.
Features
Lightweight and Flexible: Over 10% lighter with increased flexibility, improving usability while spraying under pressure.
Highest Safety Standards: A conductive core meets the highest worldwide safety standards.
Minimal Hose Coil Memory: Superior flexibility and reduced coil memory make coiling and uncoiling easier.
Corrosion Resistant: Yellow zinc plated spring guards resist corrosion.
Range of Lengths and Diameters: Available in 3/16 inch (4.8 mm), 1/4 inch (6.3 mm) and 3/8 inch (9.5 mm).
Included accessories
Specifications
| Color | Blue |
|---|---|
| For Use With | Graco spray guns and airless paint hose |
| Inside Diameter (IN) | 1/4 |
| Inside Diameter (MM) | 6.35 |
| Maximum Working Pressure (PSI) | 3300 |
| Type | Coupled Hose |
| Inside Diameter (CM) | 0.635 |
| Maximum Working Pressure (BAR) | 227 |
| Maximum Working Pressure (KPA) | 22700 |
| Hose Length (M) | 15 |
| Hose Length (MM) | 15200 |
| Hose Length (IN) | 600 |
| Hose Length (CM) | 1524 |
| Hose Length (FT) | 50 |
| Maximum Working Pressure (MPA) | 22.7 |
| Hose Diameter (IN) | 1/4 |
| Model | BlueMax II |
| Series | Hose |
