Built for the work it does.

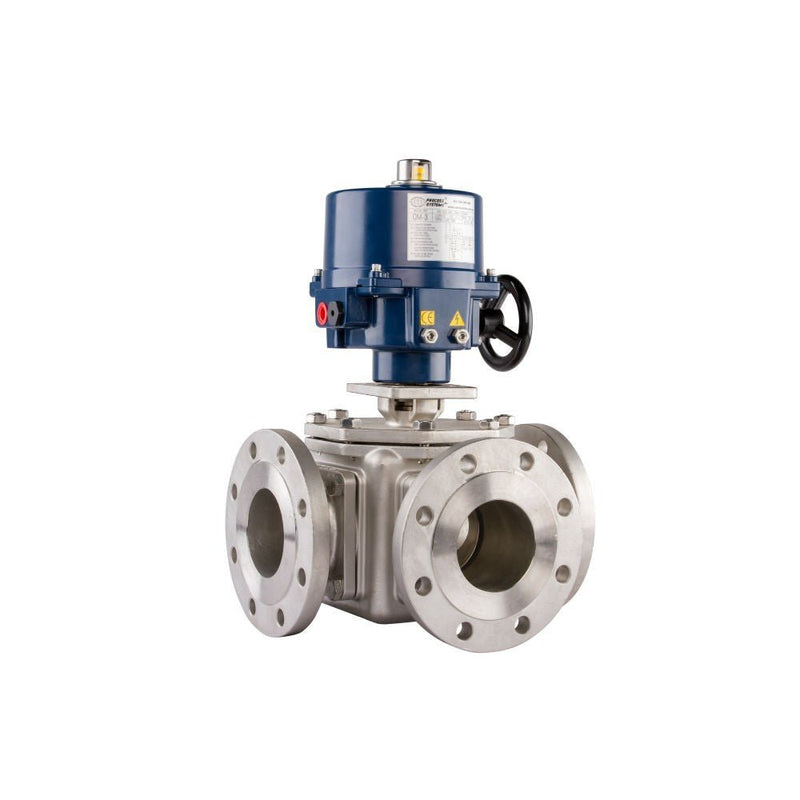

High performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections and an electric actuator. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Powder coated die aluminium electric actuator with visual indicator, extra limit switches and a manual override.
Specifications
316 SS 3 way, L port ball valve, full bore with Electric Actuator IP67. ANSI 150 Flange, RTFE seat, FKM seals, live loaded packing150 lb pressure range, media temp -20°C to 180°C.OM-3-7LS 12vDC, handwheel override, extra limit switch set.
| Model | DN (mm) | Actuator | Media Pressure | Media Temperature |
|---|---|---|---|---|
| BLS3L4FA-E*-RT | 15 | 0M-1 | Vacuum to 20 BAR | -20°C to 180°C |
| BLS3L5FA-E*-RT | 20 | 0M-1 | Vacuum to 20 BAR | -20°C to 180°C |
| BLS3L6FA-E*-RT | 25 | 0M-1 | Vacuum to 20 BAR | -20°C to 180°C |
| BLS3L7FA-E*-RT | 32 | 0M-A | Vacuum to 20 BAR | -20°C to 180°C |
| BLS3L8FA-E*-RT | 40 | 0M-2 | Vacuum to 20 BAR | -20°C to 180°C |
| BLS3L9FA-E*-RT | 50 | 0M-2 | Vacuum to 20 BAR | -20°C to 180°C |
| BLS3L10FA-E*-RT | 65 | 0M-3 | Vacuum to 20 BAR | -20°C to 180°C |
| BLS3L11FA-E*-RT | 80 | 0M-4 | Vacuum to 20 BAR | -20°C to 180°C |
| BLS3L12FA-E*-RT | 100 | 0M-4 | Vacuum to 20 BAR | -20°C to 180°C |
