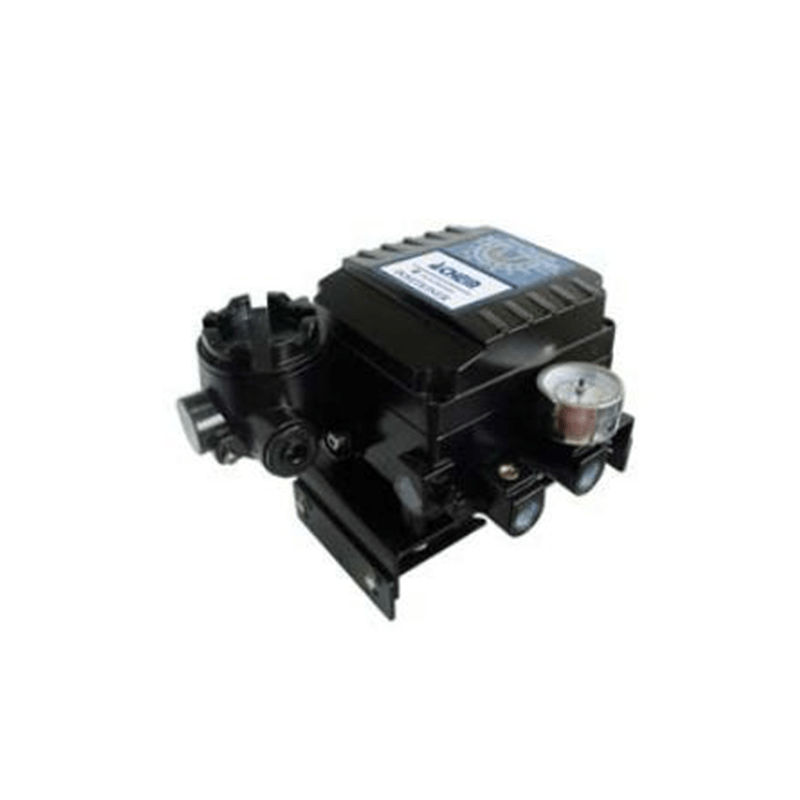

GO 4-20mA Input/Output Electro Pneumatic Positioner
SKU POS-A
$1,375.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
GO Electro Pneumatic Positioner 4-20mA input/output POS-A
Aluminium die cast body electro pneumatic positioner. Allows accurate modulation of pneumatic actuators. Namur interface and suits up to 180ccm volume actuator with a supply pressure of 1.5 to 7 BAR.
Specifications
- Input Signal 4 to 20mA
- Output Signal 4 to 20mA
- Body Aluminium
- IP Rating IP66
| Input Signal | 4 to 20mA |
|---|---|
| Impedance | 250 +/- 15 Ω |
| Supply Pressure | 1.4 to 7kgf/cm² (20~100psi) |
| Air Connection | G1/4” |
| Gauge Connection | G1/8” |
| Conduit | G1/2” |
| Weather Protection | IP66 |
| Ambient Temperature | -20°C to 70°C |
| Hysteresis | 1.50% |
| Sensitivity | 0.40% |
| Air Consumption | 3 LPM @1.5 BAR |
| Flow Capactiy | 8 LPM |
| Material | Die Cast Aluminium |
| Weight | 2.8kg |
