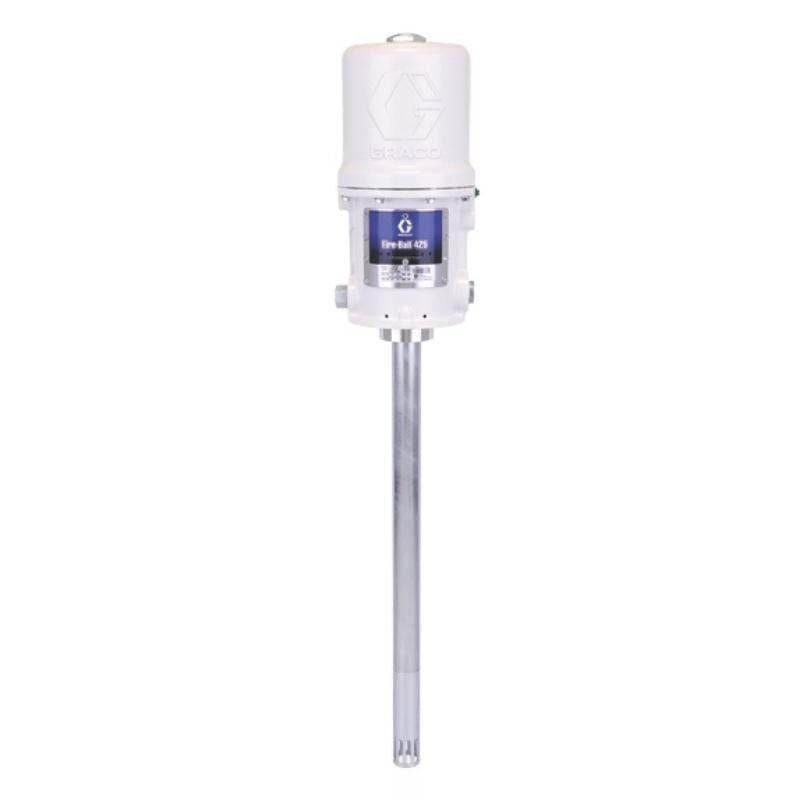

GRACO Fire-Ball 425 75:1 Grease Pumps
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
As the mainstay pump in the industry for decades, the reputation of Graco Fire-Ball, from GO Industrial, is unrivalled. Built to withstand the test of time with fewer moving parts, these flagship pumps are built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.
Features
Features
Specifications
| TYPE | Pneumatic Piston Pump |
| AIR INLET SIZE (CM) | 1.27 |
| AIR INLET SIZE (IN) | 0.5 |
| AIR INLET SIZE (MM) | 12.7 |
| AIR INLET THREAD GENDER | Female |
| AIR INLET THREAD TYPE | NPT |
| AIR MOTOR EFFECTIVE DIAMETER (IN) | 4.25 |
| APPLICATION | Industrial |
| COMPATIBLE MATERIAL | Grease |
| CYCLES PER GALLON | 165 |
| FLUID INLET TYPE | Slotted |
| FLUID OUTLET SIZE (CM) | 0.9525 |
| FLUID OUTLET SIZE (IN) | 3/8 |
| FLUID OUTLET SIZE (MM) | 9.525 |
| FLUID OUTLET THREAD GENDER | Female |
| FLUID OUTLET THREAD TYPE | NPT |
| FOR USE WITH | Grease |
| MAXIMUM AIR INLET PRESSURE (BAR) | 6.9 |
| MAXIMUM AIR INLET PRESSURE (KPA) | 690 |
| MAXIMUM AIR INLET PRESSURE (PSI) | 100 |
| MAXIMUM CONTINUOUS CYCLE RATE (CPM) | 60 |
| MAXIMUM FLOW RATE (GPM) | 0.33 |
| MAXIMUM FLOW RATE (L/MIN) | 1.25 |
| MAXIMUM INTERMITTENT CYCLE RATE (CPM) | 60 |
| MAXIMUM WORKING PRESSURE (BAR) | 517 |
| MAXIMUM WORKING PRESSURE (KPA) | 51700 |
| MAXIMUM WORKING PRESSURE (PSI) | 7500 |
| MODEL | Fire-Ball |
| POWER TYPE | Pneumatic |
| PUMP RATIO | 75:1 |
| SEAL MATERIAL | Nitrile Rubber |
| SERIES | 425 |
| SOUND POWER LEVEL (DB(A)) | 94.62 |
| SOUND PRESSURE LEVEL (DB(A)) | 80.85 |
| WEIGHT (LB) | 30 |
| WETTED MATERIAL | CS, Steel, Brass, Aluminum, Leather |
| WEIGHT (KG) | 1.362 |
| MAXIMUM WORKING PRESSURE (MPA) | 51.7 |
