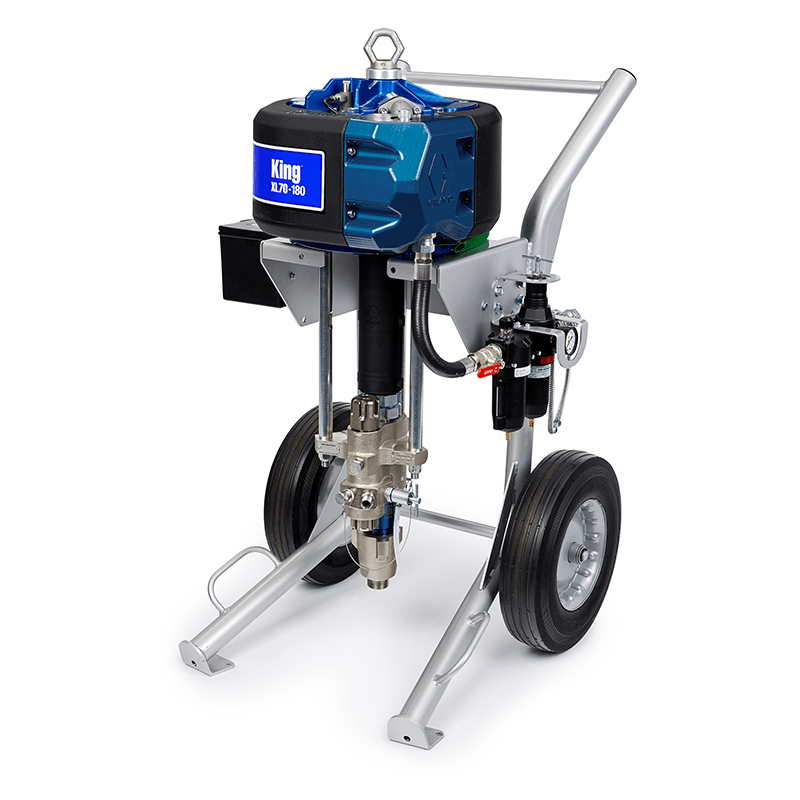

GRACO 60:1 Heavy Duty King Airless Sprayer
SKU K60FH2
$12,540.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Graco airless sprayers have been the industry’s preferred brand for over 60 years. When looking for a dependable, durable and rugged single-component protective coatings pump to get the job done – Graco Has You Covered.
Features
Features
-
Simple Maintenance
- This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
- All motor parts are easily accessible and require simple maintenance.
-
Improved Icing Performance
- The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
- The icing potential has been reduced by up to 70%
-
Less Pulsation
- With more than 145% higher exhaust capacity in the air valve, you'll achieve a faster, smoother changeover.
- Eliminating the "wink" in your pattern - it is a difference you will feel.
- New MaxLife Pump Lowers
- Improved sealing and strength with the improved edge loading and seven throat pickings instead of five. The new MaxLife pump Lowers are designed for the most demanding jobs, providing unmatched durability and life.
- New Air Motor
- Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.
Specifications
| COMPATIBLE MATERIAL | Protective Coating |
|---|---|
| CONVERTIBLE | Non-Convertible |
| FEATURES | Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels |
| FLUID INLET SIZE (IN) | 1-1/4 |
| FLUID INLET SIZE (MM) | 31.75 |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (IN) | 1/2 |
| FLUID OUTLET SIZE (MM) | 12.7 |
| FLUID OUTLET THREAD TYPE | NPT |
| FRAME CONFIGURATION | Heavy-Duty Cart |
| INCLUDES | Pump, Lower, Motor, Standard Filter, Heavy Duty Cart, Air Controls, Siphon Kit, Hose, Gun, Lubricator |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 81.48 |
| MAXIMUM TIP SIZE (IN) | Variable |
| MAXIMUM WORKING PRESSURE (PSI) | 6000 |
| STANDARDS MET | CE |
| MAXIMUM WORKING PRESSURE (KPA) | 41700 |
| POWER SOURCE | Air |
| MAXIMUM WORKING PRESSURE (MPA) | 41.7 |
| MODEL | King |
| MAXIMUM WORKING PRESSURE (BAR) | 417 |
| WEIGHT (KG) | 97 |
| WEIGHT (LB) | 214 |
| PUMP TYPE | Pneumatic Piston Pump |
| TYPE | Airless Sprayer |
| MOTOR TYPE | XL High Performance |
| WETTED MATERIAL | Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather |
| MAXIMUM FLUID WORKING PRESSURE (PSI) | 6000 |
| PUMP MOUNT TYPE | Heavy-Duty Cart |
| PUMP ROD TYPE | MaxLife |
| NUMBER OF GUNS | 1 |
| GUN MODEL | XTR-7 |
| PRODUCT TYPE | Single Leg |
| MATERIAL APPLICATION | Paints, Primers |
| CONTROL TYPE | Fixed Ratio |
| PACKAGE OPTIONS | Air Controls, Siphon Kit, Hose, Gun, Lubricator |
| MAXIMUM AIR INLET PRESSURE (PSI) | 150 |
| STROKE LENGTH (IN) | 4.75 |
| LOWER TYPE | Integrated Filter |
| PACKAGE PRESSURE RATIO (MOTOR/LOWER) | 60:1 XL6500 / 220cc |
| APPROVED FOR HAZARDOUS LOCATIONS | Yes |
