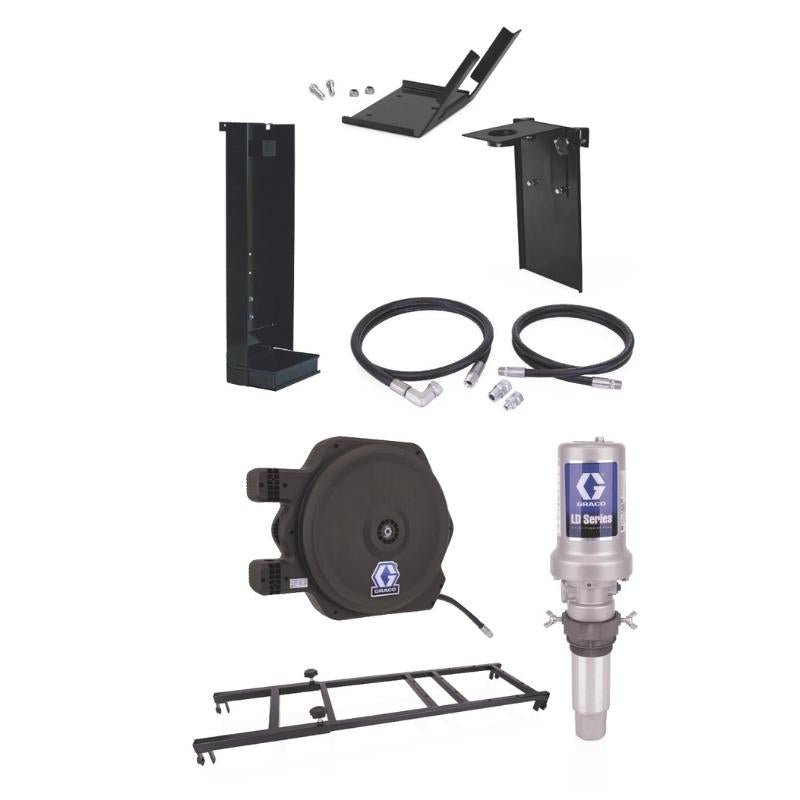

GRACO LD Series 5:1 Stationary 275 Gallon 1040 Liter Oil Pump Package - GO Industrial - 24H892

GRACO LD Series 5:1 Stationary 275 Gallon 1040 Liter Oil Pump Package

SKU 24H892
Afterpay Zip PayPal LeaseGO
$3,320.00 $4,436.00
Tax included. Shipping calculated at checkout.
Mounting Position
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

    Features

    Features

  • Three Inch Air Motor: Provides more power to create better flow.
  • Engineered for Durability: Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
  • Modular Air Valve: Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
  • Pilot Valves: Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
  • Built-In Thermal Relief and Inlet Strainer: Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.
    • Specifications
    APPLICATION Oil
    COMPATIBLE MATERIAL Oil
    FLUID INLET SIZE (CM) 2.54
    FLUID INLET SIZE (IN) 1
    FLUID INLET SIZE (MM) 25.4
    FLUID OUTLET SIZE (CM) 1.27
    FLUID OUTLET SIZE (IN) 1/2
    FLUID OUTLET SIZE (MM) 12.7
    MAXIMUM FLOW RATE (GPM) 6.7
    MAXIMUM WORKING PRESSURE (BAR) 52
    MAXIMUM WORKING PRESSURE (KPA) 5200
    MAXIMUM WORKING PRESSURE (PSI) 750
    NUMBER OF PIECES 9
    PUMP RATIO 5:1
    AIR INLET SIZE (IN) 0.25
    WETTED MATERIAL Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum
    TYPE Piston Pump Package
    POWER TYPE Pneumatic
    MAXIMUM WORKING PRESSURE (MPA) 5.2
    MODEL LD
    Manuals
    Data Sheets
    Shipping & Returns

    Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.

    30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.

    Read full policy ›

    Need help speccing your kit?

    Talk to a real specialist on our team. We'll match the right unit to your daily volume and the materials you spray most.

    Chat with usEmail us
