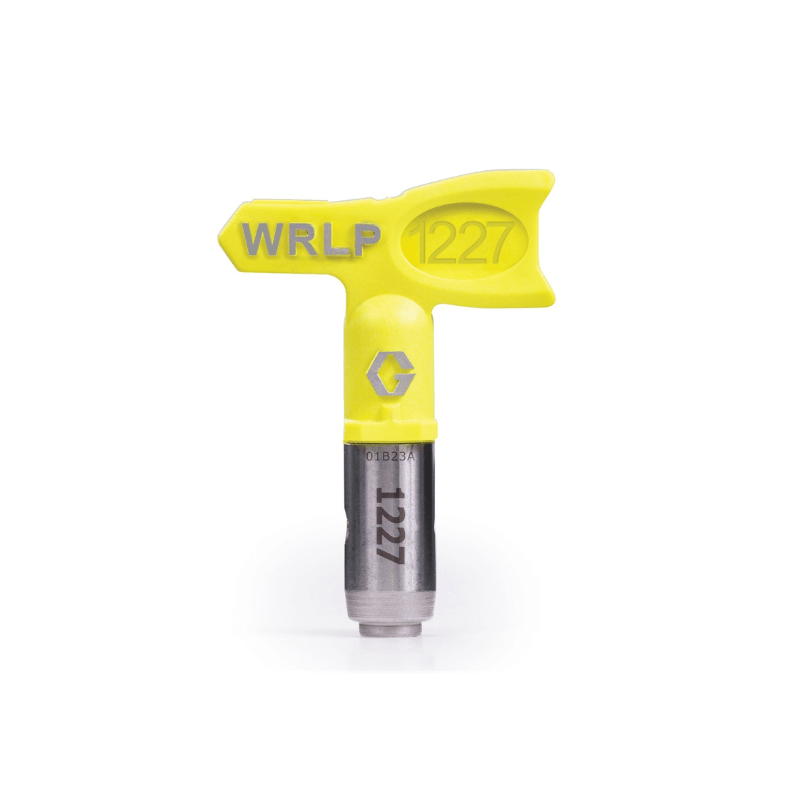

GRACO Low Pressure Wide RAC X LP SwitchTips
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
Overview
Finish large jobs in half the time with a 24 inch fan pattern sprayed at low pressure.
Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 1221 Wide Low Pressure (WRLP) RAC X SwitchTip. This low pressure, high production tip produces a 24 - 26 inch fan pattern and has a 0.021 inch orifice. Reverse the SwitchTip to easily clear clogs.
For all residential, commercial, interior and exterior high volume applications
| RAC X WIDE RAC LOW PRESSURE SWITCHTIPS (WRLPXXX) | ||||||||||||
| Orifice Size, Inches | ||||||||||||
| in | mm | .021 | .023 | .025 | .027 | .029 | .031 | .033 | ||||
| Fan Width | 24 | 610 | 1221 | 1223 | 1225 | 1227 | 1229 | 1231 | 1233 | |||
| Flow Rate (gpm)* | .47 | .57 | .67 | .77 | .90 | 1.03 | 1.17 | |||||
| Flow Rate (lpm)* | 1.79 | 2.15 | 2.54 | 2.96 | 3.42 | 3.90 | 4.42 | |||||
| Recommended Filter Size | 60 | 60 | 60 | 60 | 60 | 30 | 30 | |||||
* Water @ 2000 psi, 138 bar, 13.8 MPa — paints with a higher viscosity will decrease the flow rate
Features
Features
Largest Industry Spray Pattern
- 24 Inch spray pattern
More Productivity
- Deliver 2X more productivity with less spray passes
Less Prep & Cleanup Time
- Less mess with less overspray
- Put the paint where you want it
Easiest Pattern Overlap
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
Extended Life
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
SmartTip Technology
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
Best Tip on the Market
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
Easy to Identify Tip Size
- Large raised tip size numbers are always legible – even when covered with paint
Superior Tip Design
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
