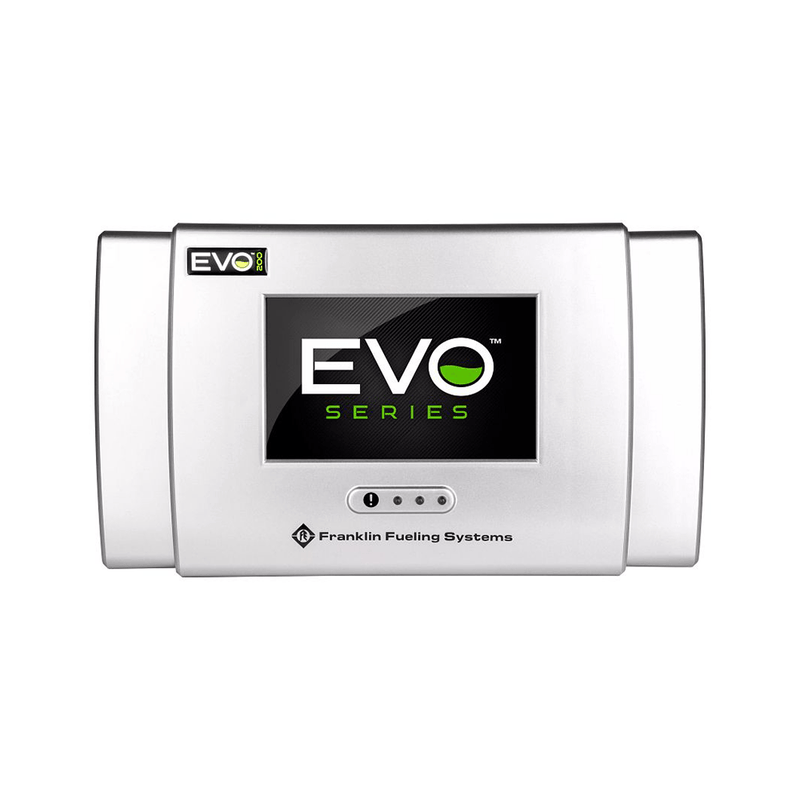

FRANKLIN EVO 200 Tank Gauge with Probe for Tanks up to 2m in Height
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
The Franklin Refuelling EVO 200 Automatic Tank Gauge, from GO Industrial, can interface with up to 6 tanks across the wide range of sensors and probes available. This value automatic tank gauge provides turbine pump interface, inventory reconciliation, and tank auto-calibration. Accuracy is +/- 0.1%.
The highly-intuitive, full-colour, icon-based touch screen provides user-friendly on-site access to inventory, alarm, and compliance data. The simple setup and operation of the EVO 200, remote connectivity via iFUEL TANK, and advanced security features protect your fuel system while keeping you directly connected to vital site data whenever, and wherever.
Specifications
| Maximum tanks monitored | 6 (EVO™ 200)/14 (EVO™ 400) |
| Maximum sensor input capacity | 6 (EVO™ 200)/14 (EVO™ 400) |
| Lines capacity | 6 (EVO™ 200)/14 (EVO™ 400) |
| Dry contact input channels | 2 |
| Relay output channels | 2 |
| Connectivity | Ethernet, RS-232, RS-485, standard USB, Mini-B USB, and WiFi (optional) |
| Display type | 7" (17.78 cm) color LCD touch screen |
| Printer type | External (network or USB) |
| Alarm | Internal audible alarm |
| LEDs | Alarm, warning, and power |
| Tank chart correction points | 7,500 |
| Applicable liquids | Petroleum, chemicals, and waste |
| Level units | Inches, centimeters, and millimeters |
| Volume units | Gallons or liters (mass with density option) |
| Power requirements | 110 to 240 VAC, 50/60 Hz, 2.6 Amps |
| Operating temperature | 32° to 104° F (0° to 40° C) |
| Humidity | 0-95% non-condensing |
| Dimensions | H: 8" (205 mm), W:13 ¾" (350 mm),D: 3¼" (83 mm) |
| Alarm set points | High/low product, water, and temperature |
| Technical Advantages | Inventory reconciliation/tank autocalibration/flow rate monitoring (optional) |
| Measurements | Density, mass, and phase separation measurement |
| Notifications | Email and SMS |
| Programming | Conditions |
| Monitoring | Back-up generator |
| Support | MODBUS™ |
| Approvals | UL, cUL, ATEX, IECEx, GSA IT Security |
| Certifications |
|
Data Sheet
Manuals
- GO Manual Franklin EVO 200
- GO Manual Franklin EVO200 Installation Guide
- GO Manual Franklin EVO 200 Programming Guide
- GO Manual Franklin EVO 200 LCD Display Installation Guide
- GO Manual Franklin EVO 200 Cover Replacement Guide
- GO Manual Franklin EVO 200 Fuse Replacement Guide
- GO Manual Franklin EVO 200 Input Board Replacement Guide
- GO Manual Franklin EVO 200 Main Board Replacement Guide
