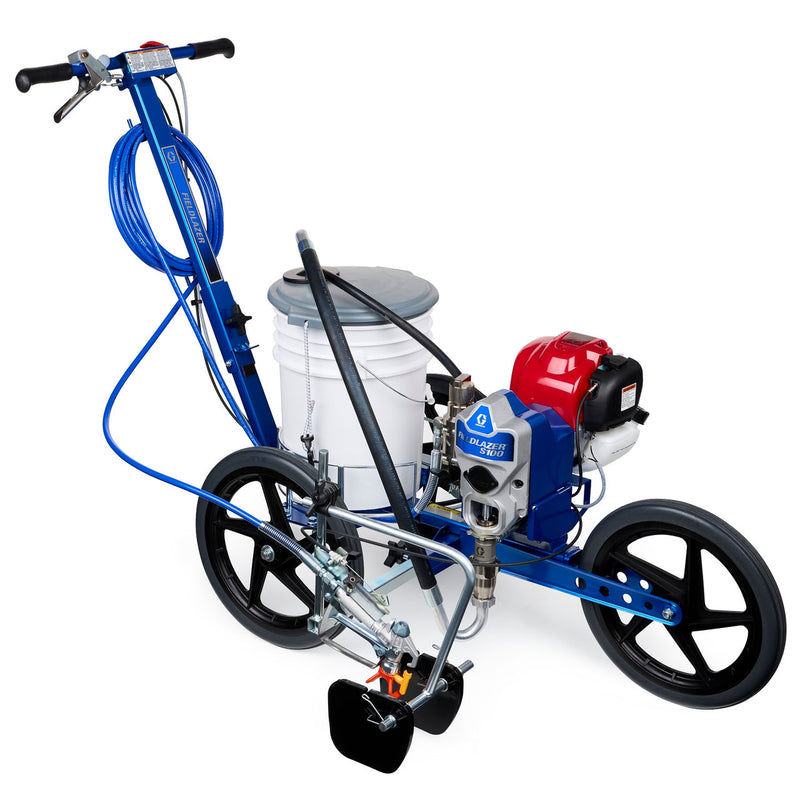

GRACO FieldLazer S100 Airless Field Striper
SKU 248942
$6,060.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Overview
Introduced in 2004, the original FieldLazer striper was the first walk-behind field marker utilizing proven Graco high-pressure airless paint spray technology. It is now recognized by field marking professionals as one of the top walk-behind field marking machines available.
- User-Friendly Operation
- Durable Pump
- Reliable Power
- Improved Line Definition
- Precise Spray Control
- Smoother Applications
- Compact, User-Friendly Design
- Fast and Easy Paint Handling
- Easy Stenciling
Features
Features
-
USER-FRIENDLY OPERATION
Easy Reach Handlebar Controls- High-comfort design for greater control and less operator fatigue
- Operator controls are located on the handlebars
-
DURABLE PUMP
Endurance Pump- Hardened stainless steel rod and cylinder holds up to abrasive materials
- QuikAccess intake for easy cleaning
-
RELIABLE POWER
Honda® Engine
- Contractor preferred—excellent power and proven reliability
- Easy starting
-
IMPROVED LINE DEFINITION
Adjustable Spray Guides- Accuracy in windy conditions
- Designed to deliver long, straight lines
- No-tool line width adjustment from 2 to 8 inch line
-
PRECISE SPRAY CONTROL
FieldLazer RAC 5 Tip- Turn tip 180° to clear clogs
-
SMOOTHER APPLICATIONS
Exclusive Tall Wheel Design- Easily rolls over rough terrain
- Reduces operator fatigue
-
COMPACT, USER-FRIENDLY DESIGN
Fold-Down Handle- Fits into minivans, SUVs, even pickups with toppers
-
FAST AND EASY PAINT HANDLING
5-Gallon Bucket-Ready- Eliminates hassle of cleaning tanks or pots
-
EASY STENCILING
No-Tool Gun Removal
- Switch for spraying stencils or large solid areas
Specifications
| Compatible Surfaces | Turf |
|---|---|
| Engine Brand | Honda |
| Engine Model | GX35 |
| Features | Adjustable Spray Guides, Disposable Paint Bucket Siphon System, Handlebar Operator Controls |
| Fuel Tank Capacity (gal) | 0.17 |
| Fuel Tank Capacity (L) | 0.64 |
| Gun Activation | Manual |
| Hopper Volume Capacity (gal) | 5 |
| Hopper Volume Capacity (L) | 19 |
| Includes | SG2 Spray Gun, FieldLazer RAC 5 421 Spray Tip, FieldLazer RAC 5 421 Spray Tip, RAC 5 Guard, 3/16 in x 25 ft BlueMax II Airless Hose, 3/16 in x 7.5 m BlueMax II Airless Hose, TSL, 4 oz, TSL, 118 ml |
| Maximum Sound Pressure Level (dB(A)) | 87 |
| Maximum Tip Size (cm) | 0.0533 |
| Maximum Tip Size (in) | 0.021 |
| Maximum Tip Size (mm) | 0.533 |
| Maximum Working Pressure (bar) | 62 |
| Maximum Working Pressure (kPa) | 6200 |
| Maximum Working Pressure (psi) | 900 |
| Model | FieldLazer |
| Number of Colors | One Color |
| Number of Guns | 1 |
| Number of Hoppers | 1 |
| Number of Pumps | 1 |
| Pump Type | Airless Piston Powered |
| Series | S100 |
| Weight (kg) | 36.3 |
| Weight (lb) | 80 |
| Type | Walk-Behind Line Striper |
| Power Source | Gas |
