GRACO Husky 205 Air-Operated Diaphragm Pumps

SKU D150A1
Afterpay Zip PayPal LeaseGO
$1,594.00
Tax included. Shipping calculated at checkout.
Models
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Frequently bought together

Bundle the essentials.

Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.

Total price
Product details

Built for the work it does.

The Graco Husky air-operated double diaphragm pumps are loaded with features to help you get the job done right, every time, and are built to save you money. The Husky 205 air-operated diaphragm pump features spring check valves for superior priming in any mounting configuration.

    Features

    Features

  • True-formed PTFE and Santoprene diaphragms for enhanced performance
  • Spring loaded checks allow the diaphragm pump to work in any orientation
  • Inlet and Outlet are interchangeable
  • Remote control option using an external controller
  • 1/4-in (6.35 mm) end-porting double diaphragm pump
    • Specifications

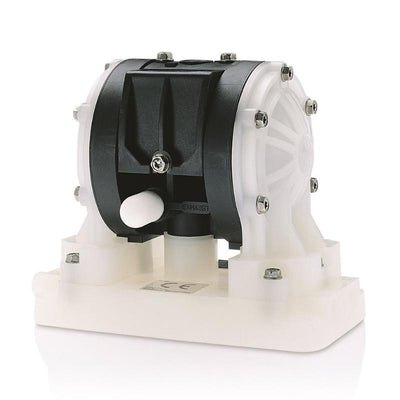

    Technical Specifications SKU D12096 SKU D12091
    TYPE Pneumatic Diaphragm Pump Pneumatic Diaphragm Pump
    AIR EXHAUST PORT SIZE (IN) 1/4 1/4
    AIR EXHAUST PORT THREAD GENDER Female Female
    AIR EXHAUST PORT THREAD TYPE NPT, BSP NPT, BSP
    AIR INLET SIZE (IN) 1/4 1/4
    AIR INLET THREAD GENDER Female Female
    AIR INLET THREAD TYPE NPT, BSP NPT, BSP
    APPLICATION Industrial Industrial
    BALL MATERIAL Polypropylene Polypropylene
    CENTER SECTION MATERIAL Polypropylene Polypropylene
    COMPATIBLE MATERIAL Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Treatment, Water, Ink Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Treatment, Water, Ink
    DIAPHRAGM MATERIAL Santoprene PTFE/EPDM 2-Piece
    FLUID INLET SIZE (CM) 0.635 0.635
    FLUID INLET SIZE (IN) 1/4 1/4
    FLUID INLET SIZE (MM) 6.35 6.35
    FLUID INLET THREAD GENDER Female Female
    FLUID INLET THREAD TYPE NPT, BSPT NPT, BSPT
    FLUID OUTLET SIZE (CM) 0.635 0.635
    FLUID OUTLET SIZE (IN) 1/4 1/4
    FLUID OUTLET SIZE (MM) 6.35 6.35
    FLUID OUTLET THREAD GENDER Female Female
    FLUID OUTLET THREAD TYPE NPT, BSPT NPT, BSPT
    FLUID SECTION MATERIAL Polypropylene Polypropylene
    MANIFOLD CONFIGURATION End Port End Port
    MANIFOLD O-RING MATERIAL PTFE PTFE
    MATERIAL Polypropylene Polypropylene
    MAXIMUM AIR CONSUMPTION (SCFM) 9 9
    MAXIMUM AIR PRESSURE (BAR) 6.9 6.9
    MAXIMUM AIR PRESSURE (KPA) 690 690
    MAXIMUM AIR PRESSURE (PSI) 100 100
    MAXIMUM CYCLE RATE (CPM) 320 320
    MAXIMUM FLOW RATE (GPM) 5 5
    MAXIMUM FLOW RATE (L/MIN) 18.9 18.9
    MAXIMUM FLUID PRESSURE (BAR) 6.9 6.9
    MAXIMUM FLUID PRESSURE (KPA) 690 690
    MAXIMUM FLUID PRESSURE (PSI) 100 100
    MAXIMUM OPERATING TEMPERATURE (°C) 66 66
    MAXIMUM OPERATING TEMPERATURE (°F) 150 150
    MAXIMUM SOLID SIZE (CM) 0.15 0.15
    MAXIMUM SOLID SIZE (IN) 0.06 0.06
    MAXIMUM SOLID SIZE (MM) 1.5 1.5
    MODEL Husky Husky
    OVERALL HEIGHT (IN) 6 6
    POWER SOURCE Air Air
    SEAT MATERIAL Polypropylene Polypropylene
    SERIES 205 205
    WEIGHT (LB) 2 2
    WETTED MATERIAL Polypropylene, Santoprene, PTFE Polypropylene, PTFE/EPDM
    MAXIMUM FLUID PRESSURE (MPA) 0.69 0.69
    MAXIMUM AIR PRESSURE (MPA) 0.69 0.69

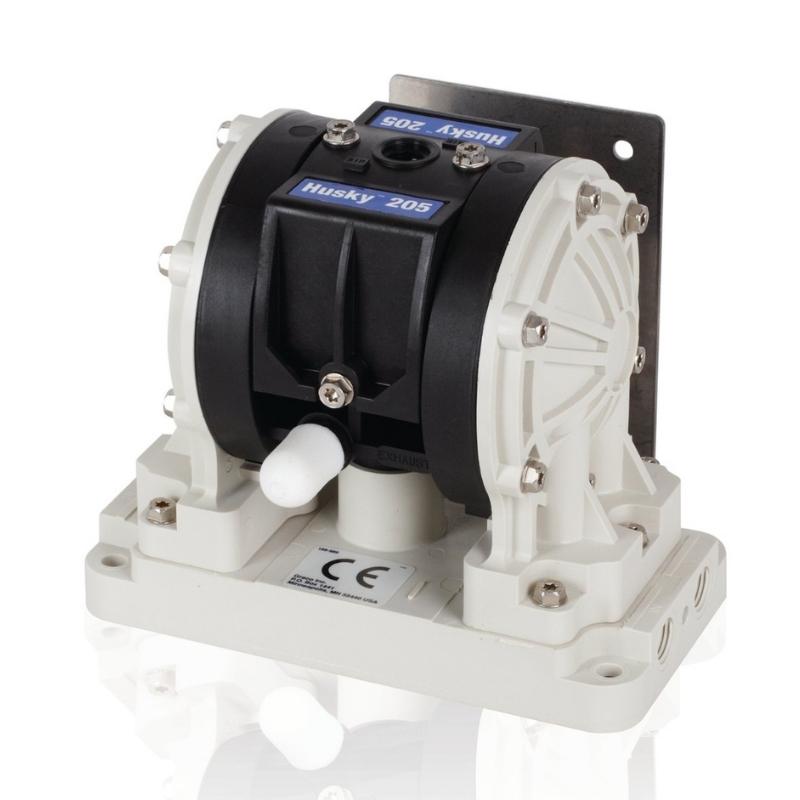

    Technical Specifications SKU D150A1 SKU D11021
    TYPE Pneumatic Diaphragm Pump Pneumatic Diaphragm Pump
    AIR EXHAUST PORT SIZE (IN) 1/4 1/4
    AIR EXHAUST PORT THREAD GENDER Female Female
    AIR EXHAUST PORT THREAD TYPE NPT, BSP NPT, BSP
    AIR INLET SIZE (IN) 1/4 1/4
    AIR INLET THREAD GENDER Female Female
    AIR INLET THREAD TYPE NPT, BSP NPT, BSP
    APPLICATION Industrial Industrial
    BALL MATERIAL PVDF Acetal
    CENTER SECTION MATERIAL Polypropylene Polypropylene
    COMPATIBLE MATERIAL Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Treatment, Water, Ink Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Treatment, Water, Ink
    DIAPHRAGM MATERIAL PTFE/EPDM 2-Piece PTFE/EPDM 2-Piece
    FLUID INLET SIZE (CM) 0.635 0.635
    FLUID INLET SIZE (IN) 1/4 1/4
    FLUID INLET SIZE (MM) 6.35 6.35
    FLUID INLET THREAD GENDER Female Female
    FLUID INLET THREAD TYPE NPT, BSPT NPT, BSPT
    FLUID OUTLET SIZE (CM) 0.635 0.635
    FLUID OUTLET SIZE (IN) 1/4 1/4
    FLUID OUTLET SIZE (MM) 6.35 6.35
    FLUID OUTLET THREAD GENDER Female Female
    FLUID OUTLET THREAD TYPE NPT, BSPT NPT, BSPT
    FLUID SECTION MATERIAL PVDF Acetal
    MANIFOLD CONFIGURATION End Port End Port
    MANIFOLD O-RING MATERIAL PTFE PTFE
    MATERIAL PVDF Acetal
    MAXIMUM AIR CONSUMPTION (SCFM) 9 9
    MAXIMUM AIR PRESSURE (BAR) 6.9 7
    MAXIMUM AIR PRESSURE (KPA) 690 700
    MAXIMUM AIR PRESSURE (PSI) 100 100
    MAXIMUM CYCLE RATE (CPM) 320 320
    MAXIMUM FLOW RATE (GPM) 5 5
    MAXIMUM FLOW RATE (L/MIN) 18.9 18.9
    MAXIMUM FLUID PRESSURE (BAR) 6.9 7
    MAXIMUM FLUID PRESSURE (KPA) 690 700
    MAXIMUM FLUID PRESSURE (PSI) 100 100
    MAXIMUM OPERATING TEMPERATURE (°C) 82 82
    MAXIMUM OPERATING TEMPERATURE (°F) 180 180
    MAXIMUM SOLID SIZE (CM) 0.15 0.15
    MAXIMUM SOLID SIZE (IN) 0.06 0.06
    MAXIMUM SOLID SIZE (MM) 1.5 1.5
    MODEL Husky Husky
    OVERALL HEIGHT (IN) 6 6
    POWER SOURCE Air Air
    SERIES 205 205
    WEIGHT (LB) 2.8 2.5
    WETTED MATERIAL PVDF, Polypropylene, PTFE/EPDM Acetal, Polypropylene, PTFE/EPDM
    MAXIMUM FLUID PRESSURE (MPA) 0.69 0.7
    MAXIMUM AIR PRESSURE (MPA) 0.69 0.7
