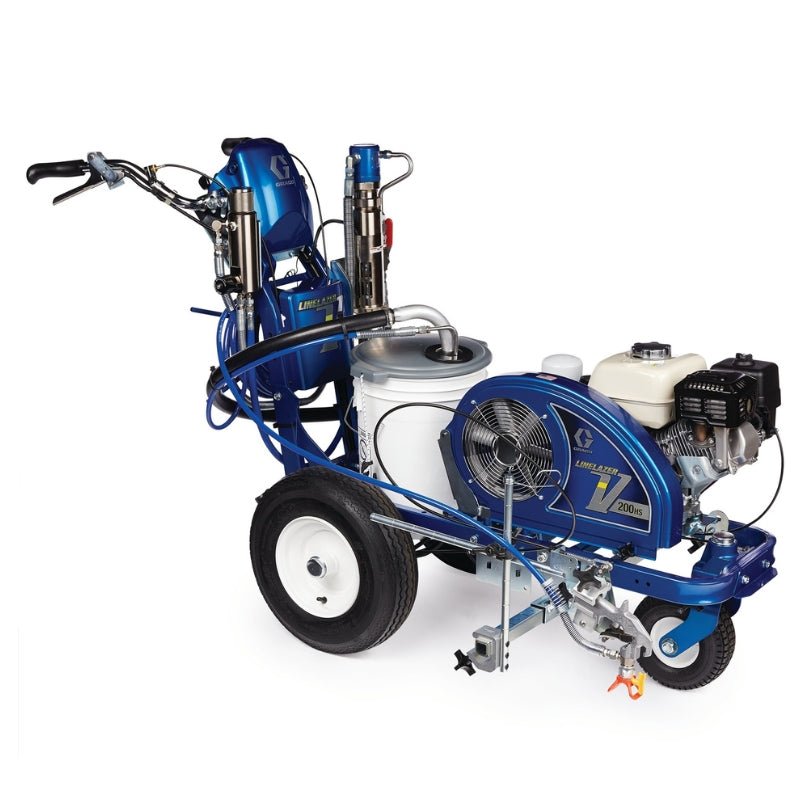

GRACO LineLazer V 200HS Standard Series Airless Line Striper
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
The LineLazer V 200HS Standard Series is a true workhorse designed for high performance striping on demanding jobs like large parking lots, airports, and city jobs that require precise lines.
The LineLazer V Standard Series is ideal for the higher production re-striping contractor completing and considering larger re-striping jobs with basic pattern applications requiring a single-color, single or dual gun striping solution.
Features
Features
LiveLook Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
DualComfort Handlebar System
- Easy Handlebar Adjustment
Endurance Chromex Pump
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
High-Efficiency Hydraulic Motor
- Uninterrupted Performance
- No-Stall design
High-Capacity Cooling System
- Reduced Downtime
- Innovative design allows the pump to run cooler and more efficiently
- Easier and more thorough fluid changes
- Reservoir cooling fins deflect more heat
- No special hydraulic fluid needed
QuikSelect Gun Selector
- Simple Gun Control
- Independently control of two guns with one lever — solid/skip
Easy Out Pump Filter
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
Specifications
| Compatible Surfaces | Pavement, Turf |
|---|---|
| Engine Brand | Honda |
| Engine Model | GX200 |
| Fuel Tank Capacity (gal) | 0.95 |
| Fuel Tank Capacity (L) | 3.6 |
| Gun Activation | Manual |
| Includes | Manual Gun |
| Maximum Flow Rate (GPM) | 2.15 |
| Maximum Flow Rate (L/min) | 8.14 |
| Maximum Sound Pressure Level (dB(A)) | 86.5 |
| Maximum Tip Size (cm) | 0.1194 |
| Maximum Tip Size (in) | 0.047 |
| Maximum Tip Size (mm) | 1.1938 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 2270 |
| Maximum Working Pressure (psi) | 3300 |
| Model | LineLazer V |
| Number of Colors | One Color |
| Number of Guns | 1 |
| Number of Pumps | 1 |
| Overall Height (cm) | 113.03 |
| Overall Height (in) | 44.5 |
| Overall Height (mm) | 1130.3 |
| Overall Length (cm) | 174.63 |
| Overall Length (in) | 68.75 |
| Overall Length (mm) | 1746.25 |
| Overall Width (cm) | 87 |
| Overall Width (in) | 34.25 |
| Overall Width (mm) | 870 |
| Power Rating (HP) | 6.5 |
| Power Rating (kW) | 4.85 |
| Pump Type | Endurance |
| Series | 200HS |
| Compatible Material | Road-Marking Paint |
| Weight (kg) | 139 |
| Weight (lb) | 306 |
| Type | Walk-Behind Line Striper |
| Power Source | Gas Hydraulic |
| Product Series | HP Reflective |
Warranty
Manuals
- Graco LineLazer V 200HS 200DC Operations Manual 3A3426EN-H
- Graco Manual Parts LineLzer V 200HS 200DC 3A3390EN-G
- GO Manual Operation Graco LineLazer V 200HS 200DC Airless Line Stripers Part1 3A3426EN-J
- GO Manual Operation Graco LineLazer V 200HS 200DC Airless Line Stripers Part2 3A3426EN-J
- GO Manual Operation Graco LineLazer V 200HS 200DC Airless Line Stripers Part3 3A3426EN-J
- GO Manual Parts Graco LineLazer V 200HS 200DC Airless Line Stripers 3A3390EN-H
