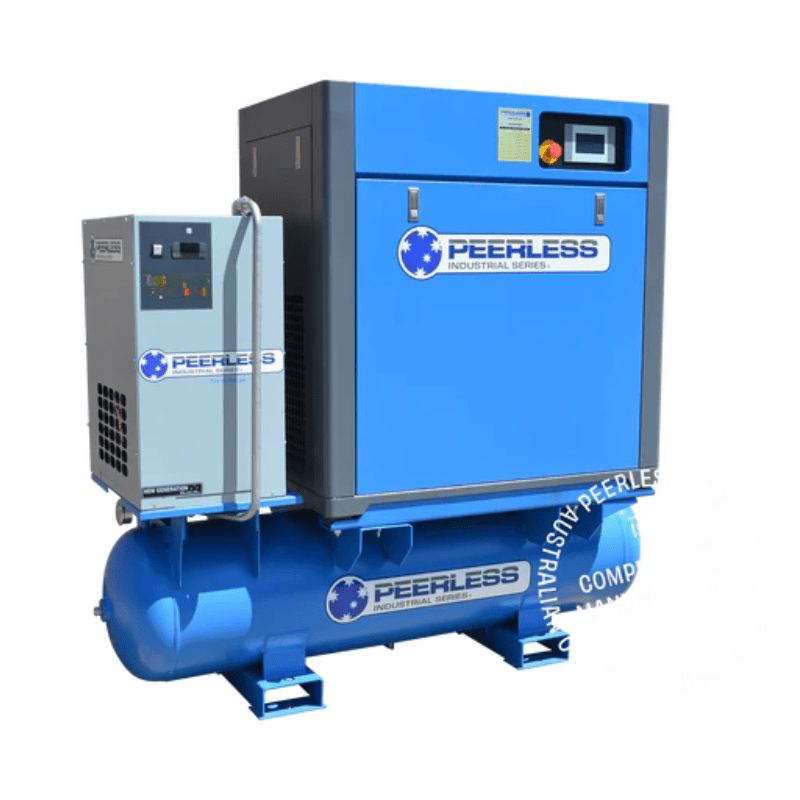

PEERLESS HQD20 Direct Drive Compressors
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
2200L/pm @ 116PSI - great workshop screw compressor. 8 Bar / 116PSI - 10BAR / 12BAR optional, high pressure! Get as a base, twin tanks or full feature with screw, dryer and tank as one.
Peerless Products Variable Speed Rotary Screw Compressors are here to save you money!
Most air compressors run continuously even when you’re not using the air. This machine will perform to your requirements and save you money at the same time by only doing the work that you want it to do!
Specifications
Peerless HQD20VSHP
| Code | HQD20VSHP |
| HP / KW | 20HP / 15kW |
| Dimensions (LxWxHmm) | 1090x710x1100 |
| Weight | 350 |
| Amps Required | 32 |
| Tank Capacity (L) | - |
| Cooling Method | Air cooled |
| Discharge temp (°C) | Ambient temp +15°C |
| Driving Type | Direct drive |
| dBa (+/-2) | 66 |
| Outlet Thread | 3/4"BSP |
| Electricity | 415V |
| Amps draw (Full load) | 32 |
Free Air Delivery
| Code | HQD20VSHP-8 |
| PSI | 116 |
| Bar | 8 |
| LPM | 2000 |
| M3/H | 132 |
| CFM | 77.75 |
Dryer Specifications
| Code | WB15D |
| Model | WB15D Dryer |
| Compressor KW | 453KW |
| Working Pressure | Min. 6 Bar / Max. 13 Bar |
| LPM | 2200 |
| m3/h | 132 |
| CFM | 77.75 |
| Power Plug | 10A |
Peerless HQD20VSHP-TT
| Code | HQD20VSHP-TT |
| HP / KW | 20HP / 15kW |
| Dimensions (LxWxHmm) | 1500x750x1545 |
| Weight | 450 |
| Amps Required | 32 |
| Tank Capacity (L) | 300L |
| Cooling Method | |
| Discharge temp (°C) | Ambient temp +15°C |
| Driving Type | Direct drive |
| dBa (+/-2) | 66 |
| Outlet Thread | 3/4"BSP |
| Electricity | 415V |
| Amps draw (Full load) | 32 |
Free Air Delivery
| Code | HQD20VSHP-TT-8 |
| PSI | 116 |
| Bar | 8 |
| LPM | 2000 |
| M3/H | 132 |
| CFM | 77.75 |
Dryer Specifications
| Code | WB15D |
| Model | WB15D Dryer |
| Compressor KW | 453KW |
| Working Pressure | Min. 6 Bar / Max. 13 Bar |
| LPM | 2200 |
| m3/h | 132 |
| CFM | 77.75 |
| Power Plug | 10A |
Peerless HQD20VSHP-FF
| Code | HQD20VSHP-FF |
| HP / KW | 20HP / 15kW |
| Dimensions (LxWxHmm) | 1690x690x1650 |
| Weight | 450 |
| Amps Required | 32 |
| Tank Capacity (L) | 200L |
| Cooling Method | |
| Discharge temp (°C) | Ambient temp +15°C |
| Driving Type | Direct drive |
| dBa (+/-2) | 66 |
| Outlet Thread | 3/4"BSP |
| Electricity | 415V |
| Amps draw (Full load) | 32 |
Free Air Delivery
| Code | HQD20VSHP-TT-8 |
| PSI | 116 |
| Bar | 8 |
| LPM | 2000 |
| M3/H | 132 |
| CFM | 77.75 |
Dryer Specifications
| Code | WB15D |
| Model | WB15D Dryer |
| Compressor KW | 453KW |
| Working Pressure | Min. 6 Bar / Max. 13 Bar |
| LPM | 2200 |
| m3/h | 132 |
| CFM | 77.75 |
| Power Plug | 10A |
