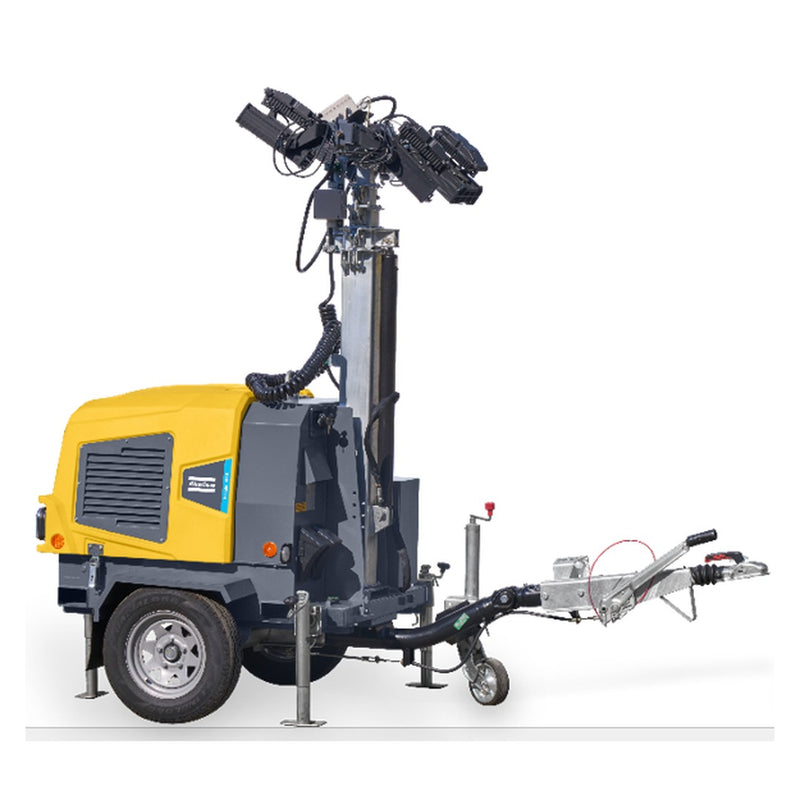

ATLAS COPCO HiLight M+7 LED Light Tower
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
The Atlas Copco HiLight M+7 LED Light Tower is built for big sites that need a lot of light without a lot of fuss. Four 350W SMD LED floodlights put out 224,406 lumens, lighting up to 7,360 m² at an average of 20 lux. According to Atlas Copco, SMD lenses give up to 20% more light coverage than older COB LED setups.
The hydraulic mast and electric head rotation make setup faster and safer for operators, which you don’t often get at this level. A Kubota Z482 diesel engine sips around 0.68 L/h with all lights on, giving up to 192 hours from the 130 L tank. Everything sits under Atlas Copco’s HardHat® canopy, so it’s ready for construction, mining, events and rental work.
Included accessories
Specifications
| Light Coverage | 7360 m2 (average 20 lux) |
|---|---|
| Lamps | 4 x 350W SMD LED |
| Mast | Vertical Hydraulic |
| Features | HardHat® Canopy |
| Rated Frequency | 50 Hz |
| Rated Voltage | 48 VDC |
| Rated Power (PRP) | 2.3 kW |
| Operating Temperature (min/max) | -25/50 degrees C |
| Sound Power | 86 dB(A) |
| Sound Pressure @7m | 58 dB(A) |
| Fuel Capacity | 130 L |
| Runtime With Lamps On | 192 hrs |
| Engine Make | Kubota |
| Engine Type | Z482 |
| Engine Speed | 1500 rpm |
| Rated Net Output | 4.1 kW |
| Coolant | Liquid |
| Number Of Cylinders | 2 |
| Transport Dimensions (L x W x H) | 2.26 x 1.40 x 2.57 m |
| Weight | 934 kg |
