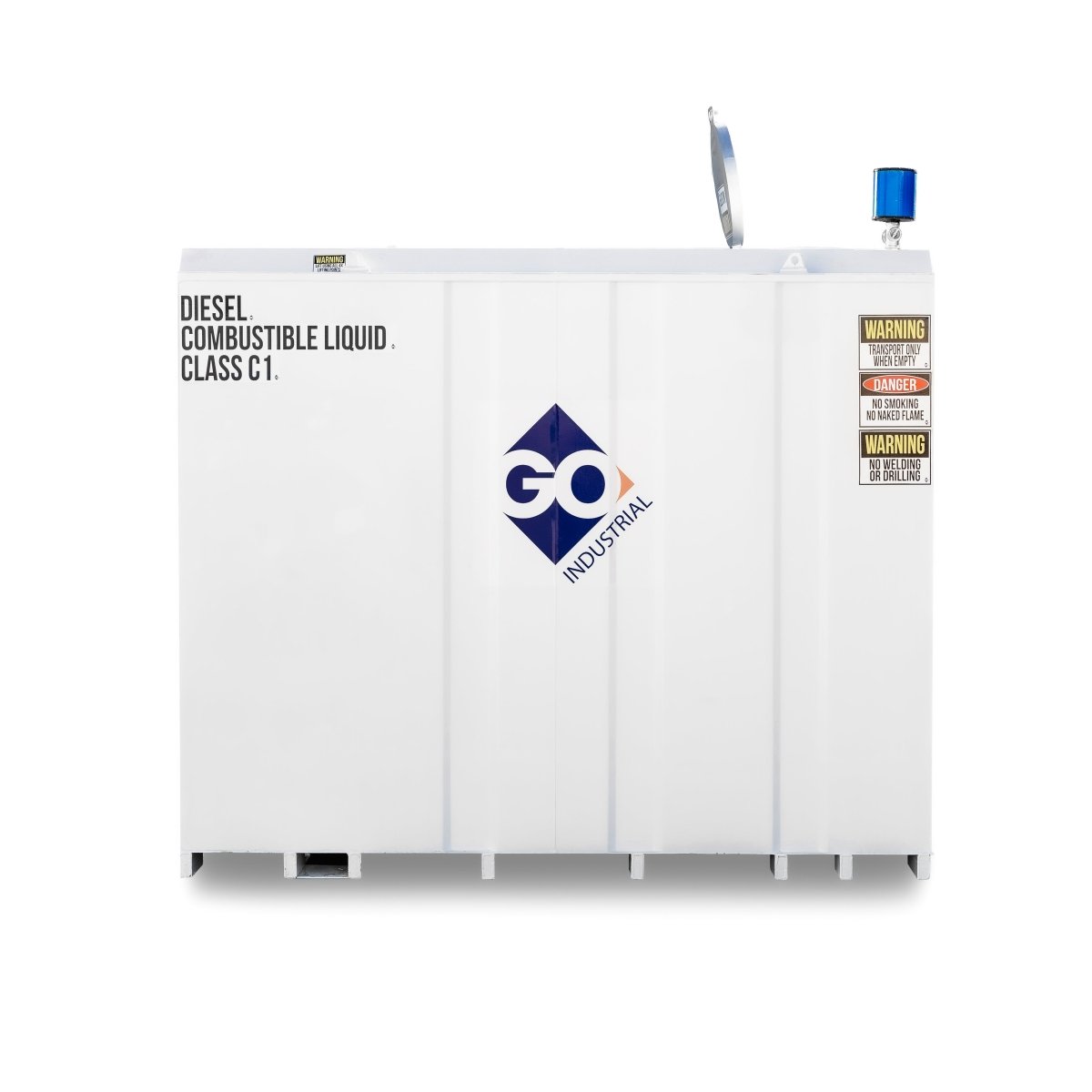

GO STORE Self Bunded Tank STORE-11 Front View

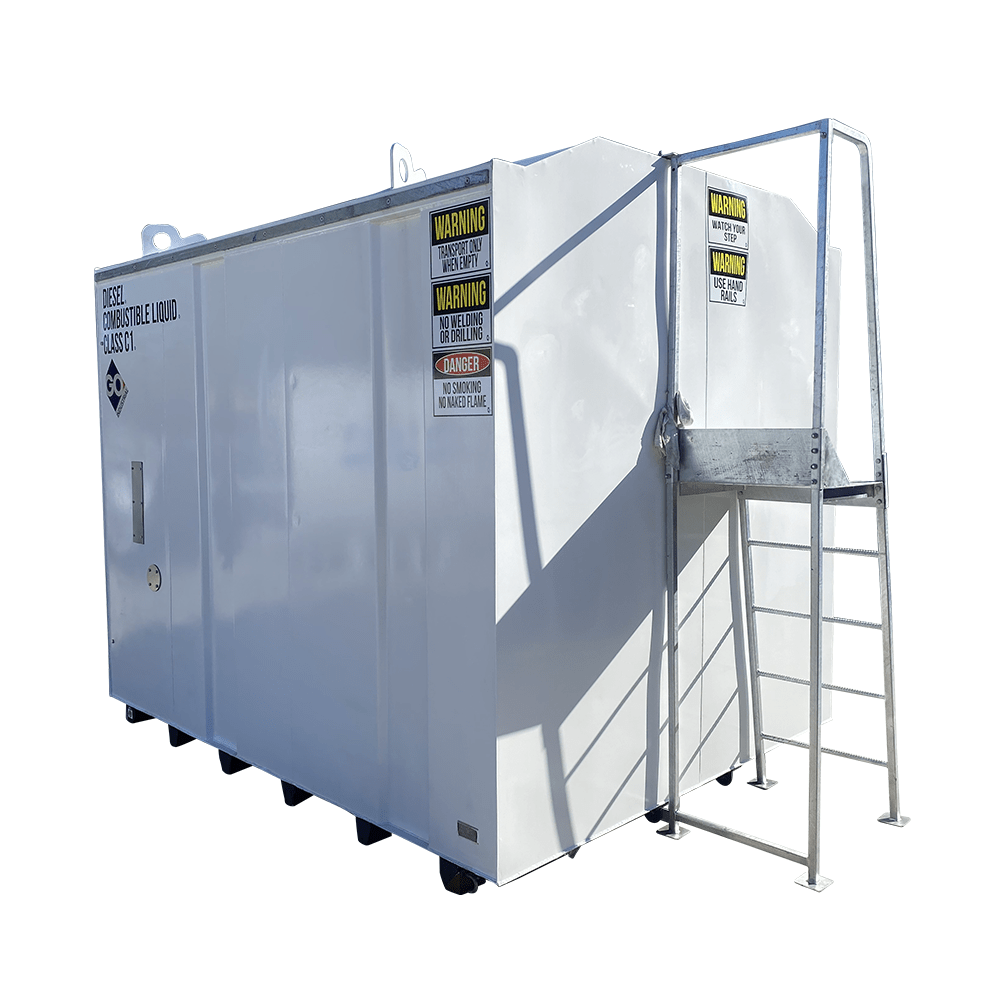

GO STORE Self Bunded Tank STORE-11 Side View

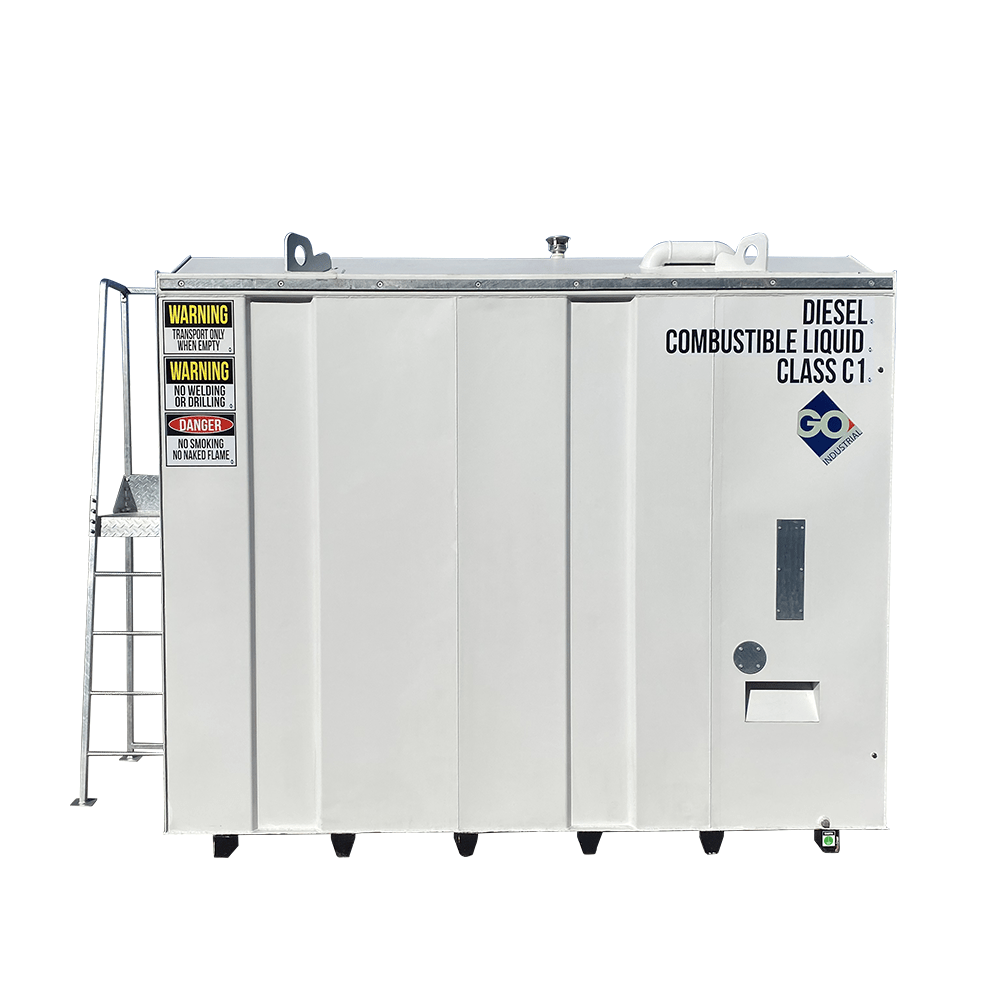

GO STORE Self Bunded Tank STORE-11 Rear View

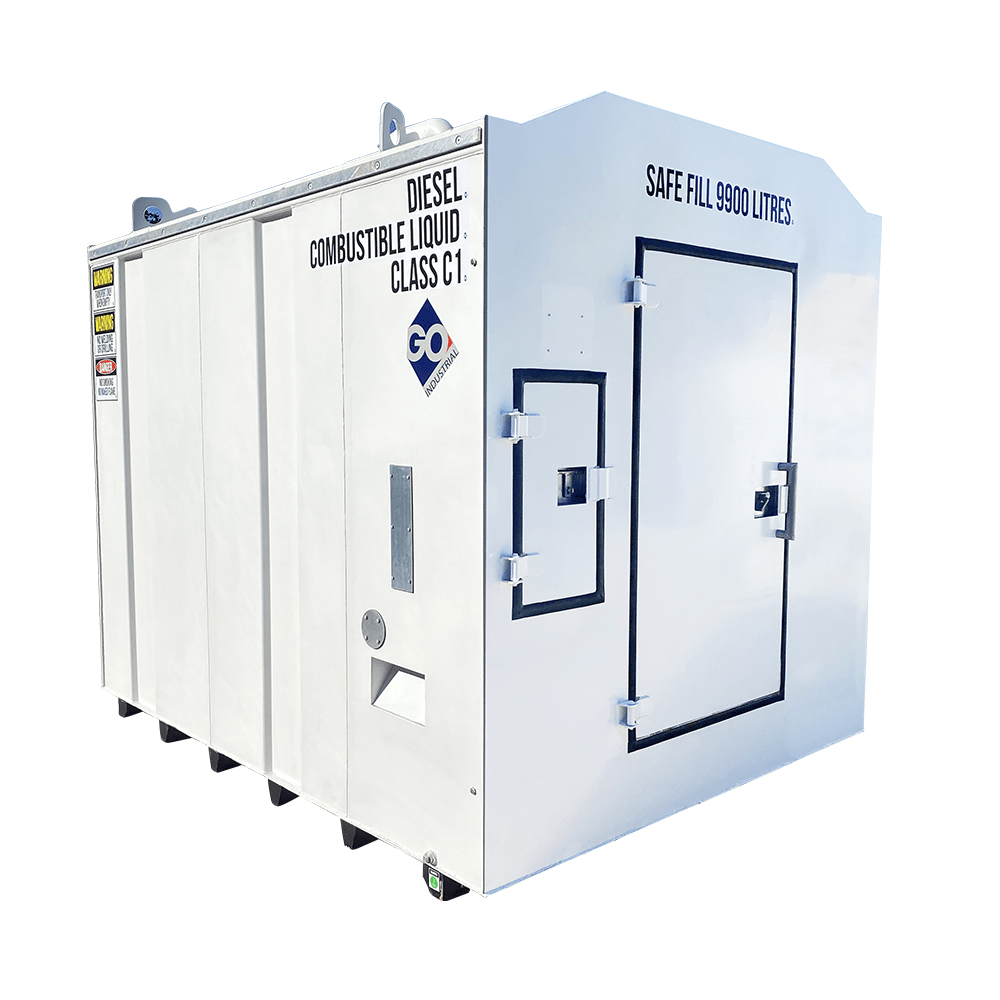

GO STORE Self Bunded Tank STORE-11 Front View
GO STORE Self Bunded Tank 11000L Crane Lifting Lugs Transport Tie Downs

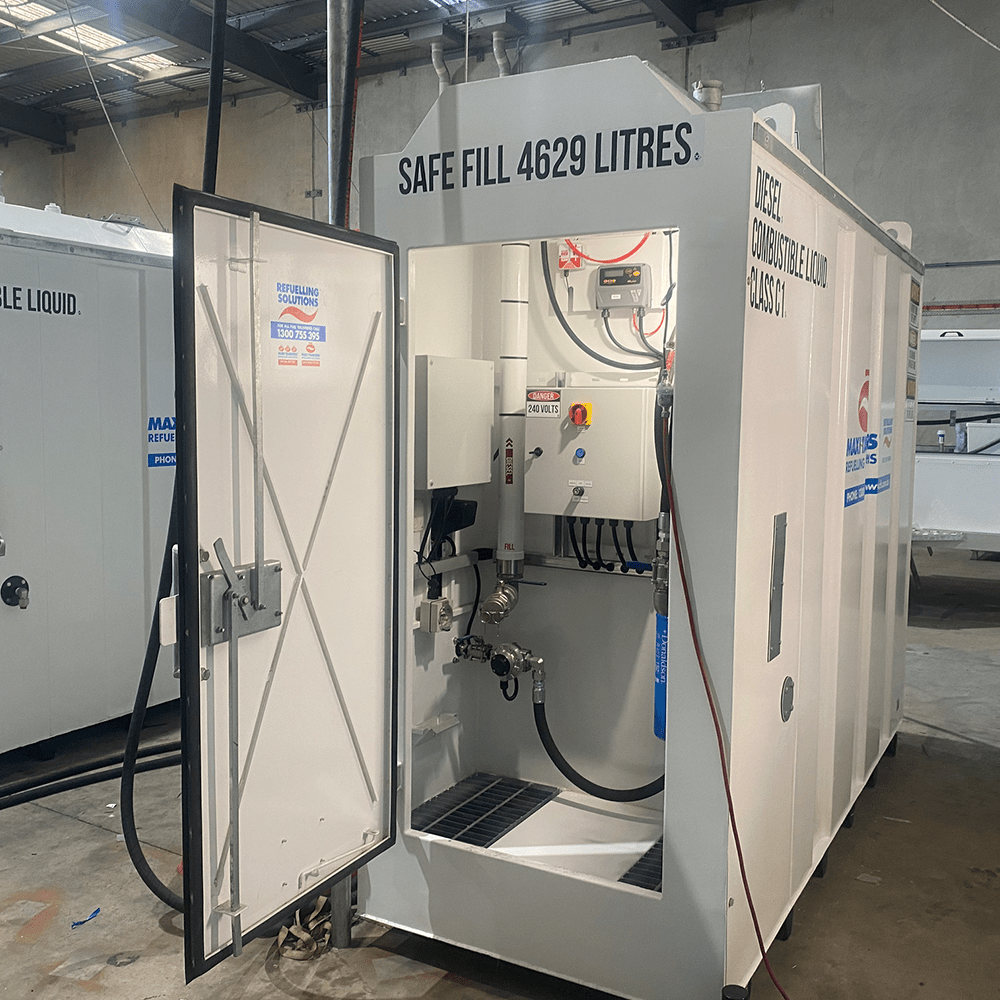

GO STORE Self Bunded Tank 5500L Bunded Pump Bay Housing

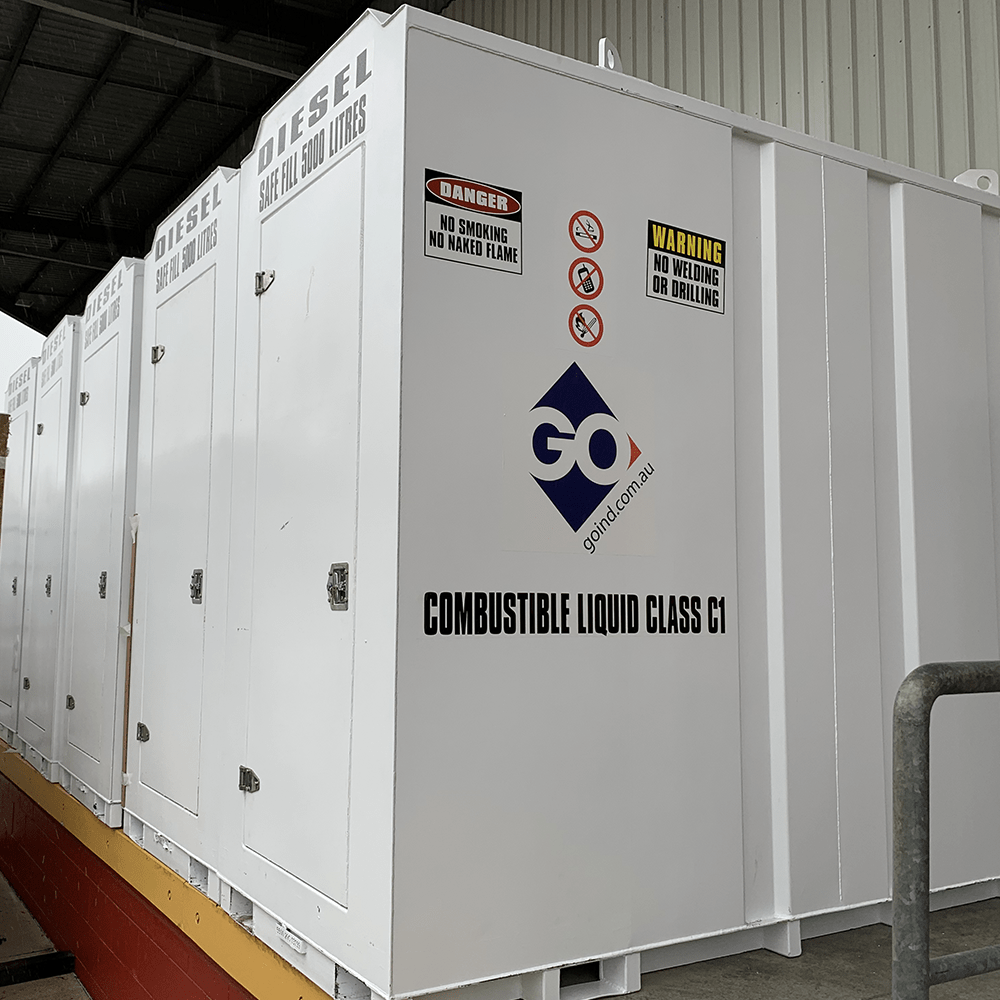

GO STORE Self Bunded Tank Range 5500L Stock

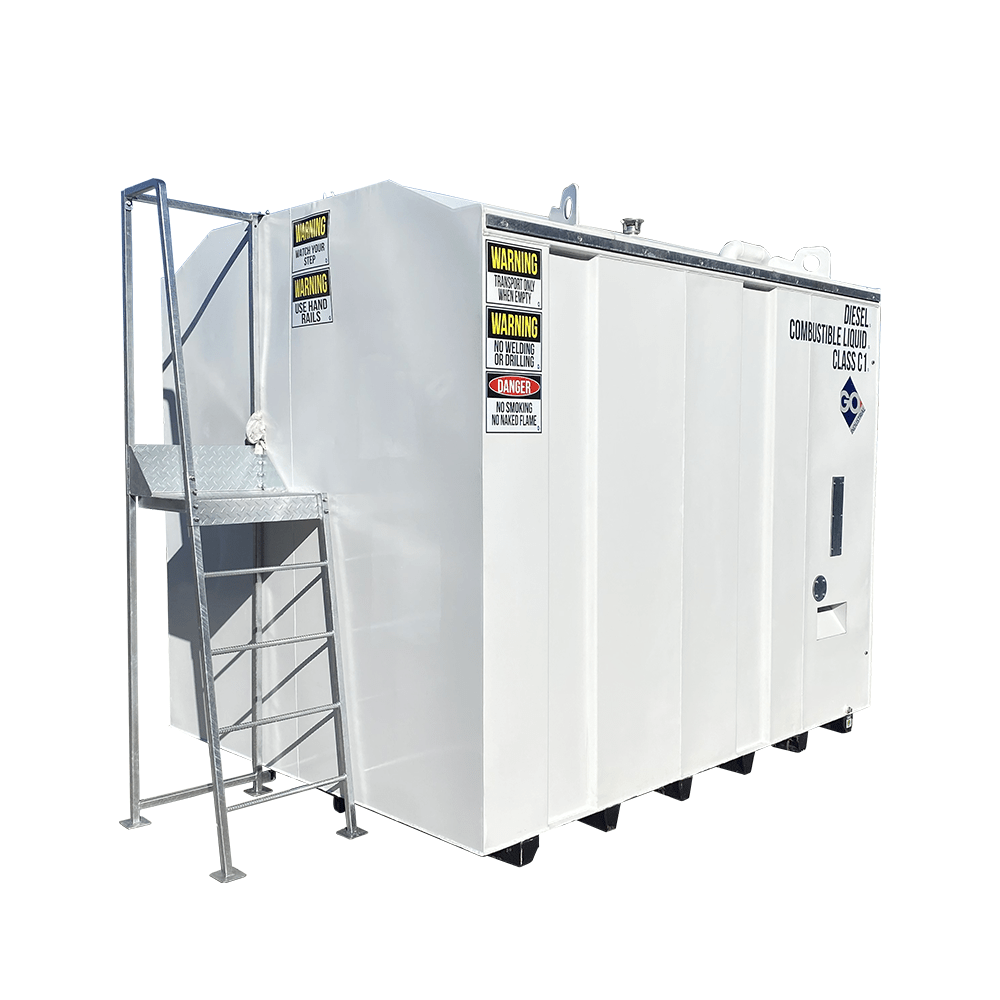

GO STORE Self Bunded Tank 5500L Ladder Assembly STORE-5.5

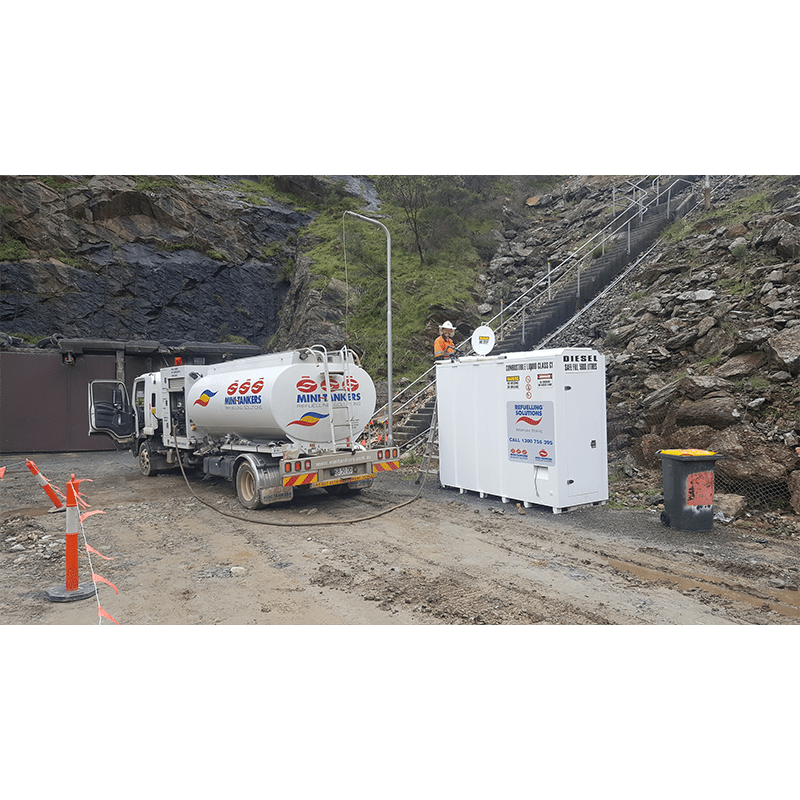

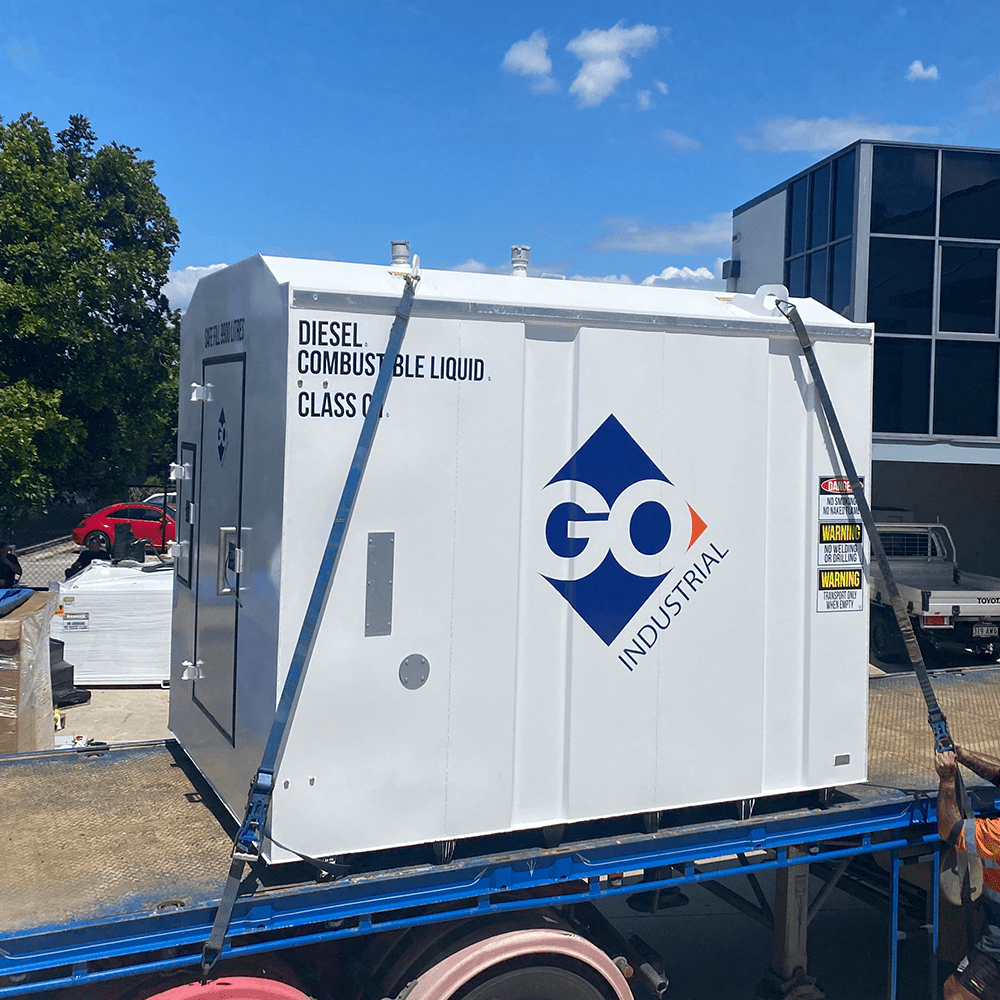

GO Self Bunded Tank Store 5500L in action with Mini Tankers
1 13

GO Store Self Bunded Tanks

SKU: STORE-5.5

GO Store Self Bunded Tanks

Inclusive of GST. Shipping calculated at checkout.
stock
In stock and ready to ship or collect in 1 to 2 days. Delivery times vary as per courier.
stock
In stock and ready to ship or collect in 1 to 2 days. Delivery times vary as per courier.
stock
In stock and ready to ship or collect in 1 to 2 days. Delivery times vary as per courier.
Size

Other payment options

View full details
GO STORE Self Bunded Tank STORE-11 Front View

GO Store Self Bunded Tanks

Details

  • Small footprint self bunded tank range designed for home base refuelling applications.
  • Product Range 5,500L | 11,000L | 16,000L
  • Lockable bunded pump bay cabinet
  • Designed and approved for the storage and of diesel, petrol, lubricants and waste oil
  • Mild Steel Internal Tank and Wetted Parts - Heavy duty Mild Steel External tank

Features

NEW PRODUCT

  • Innovative new range of Self Bunded (Double Wall) Tanks

FOOTPRINT

  • Small footprint - perfect for home base refuelling applications

PUMP BAY

  • Lockable full height pump bay housing for secure storage of dispensing equipment

BUND

  • Galvanised grated bunded area with drain

FILL POINT

  • DN50 (2") Flanged 150# Fill Point with Full Bore Ball Valve / Non Return Valve / Male Camlock Fitting / Dust Cap / Mechanical Overfill Protection Valve and 12V Overfill Alarm

SUCTION POINT

  • DN50 (2") Flanged 150# Suction Point with Anti Syphon / Foot Valve Assembly.

SPARE SUCTION

  • Spare DN25 (1") Suction Outlet

SPARE FITTINGS

  • Numerous spare fittings on top of the tank for retrofitting of instrumentation or other devices

MANWAY

  • 600mm dia manway with internal ladder

DIPSTICK

  • Calibrated anodised aluminium dipstick with brass lockable dip stick cover fitting

INTERSTITIAL DIP

  • Anodised alunimium interstitial dipstick with brass lockable dipstick cover fitting

INTERSTITIAL VENT

  • Interstitial emergency vent

VENT

  • Primary tank free air vent

DECALS

  • Statutory safety decals

FORKLIFT TYNES

  • forklift tynes have been incorporated in the front / rear of the tank to facilitate offloading and positioning on site

LIFTING LUGS

  • certified crane lifting lugs have been incorporated to facilitate crane offloading and positioning on site.  The lifting lugs are NOT certified to lift the tank with fuel.

HOSE OUTLET

  • letterbox style secure weatherproof hose inlet / outlet assembly

PAINT

  • Paint Colour RAL9003 Signal White / Tanks are sandblasted to SA2 Standard. Hempel Marine Paint 3 Stage process. Primer Hempadur 1530. 2nd Coat Hempadur Hi-Build 4520. Final Coat Hempathane Enamel 55100 Finished dry film thickness no less than 180 um.

GO STORE Self Bunded Tanks

Overview

The GO STORE is a small footprint Self Bunded Tank designed for home base refuelling applications. The GO STORE features an integrated bunded pump bay housing which is designed to store, and indeed secure, the dispensing equipment when not in use. This Self Bunded tank is designed and approved to AS1940 and AS1692



          Shipping & Returns

          Our network of warehouses Australia-wide enables us to
          deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

          All returns must be pre-approved to ensure replacement and / or refund.

          Shipping & Returns

          Our network of warehouses Australia-wide enables us to
          deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

          All returns must be pre-approved to ensure replacement and / or refund.

          Warranty

          Read our complete warranty terms & conditions here.

          Warranty

          Read our complete warranty terms & conditions here.

          Secure Payment

          All our online payment methods are secured.

          Secure Payment

          All our online payment methods are secured.

          • GO Data Sheet STORE
          • GO TANK STORE-5.5 GA
          • GO TANK STORE-11 GA
          • GO TANK STORE-16 GA
          • GO STORE Operations Manual

          Specifications

          CODE

          CAPACITY

          SAFE FILL LEVEL

          LENGTH (mm)

          WIDTH (mm)

          HEIGHT (mm)

          STORE-5.5

          		 5,500L 5,000L 2950 1140 2550

          STORE-11

          		 11,000L 10,000L 2950 2300 2550
          STORE-16 16,000L 15,000L 3950 2300 2550





            Features

            NEW PRODUCT

            • Innovative new range of Self Bunded (Double Wall) Tanks

            FOOTPRINT

            • Small footprint - perfect for home base refuelling applications

            PUMP BAY

            • Lockable full height pump bay housing for secure storage of dispensing equipment

            BUND

            • Galvanised grated bunded area with drain

            FILL POINT

            • DN50 (2") Flanged 150# Fill Point with Full Bore Ball Valve / Non Return Valve / Male Camlock Fitting / Dust Cap / Mechanical Overfill Protection Valve and 12V Overfill Alarm

            SUCTION POINT

            • DN50 (2") Flanged 150# Suction Point with Anti Syphon / Foot Valve Assembly.

            SPARE SUCTION

            • Spare DN25 (1") Suction Outlet

            SPARE FITTINGS

            • Numerous spare fittings on top of the tank for retrofitting of instrumentation or other devices

            MANWAY

            • 600mm dia manway with internal ladder

            DIPSTICK

            • Calibrated anodised aluminium dipstick with brass lockable dip stick cover fitting

            INTERSTITIAL DIP

            • Anodised alunimium interstitial dipstick with brass lockable dipstick cover fitting

            INTERSTITIAL VENT

            • Interstitial emergency vent

            VENT

            • Primary tank free air vent

            DECALS

            • Statutory safety decals

            FORKLIFT TYNES

            • forklift tynes have been incorporated in the front / rear of the tank to facilitate offloading and positioning on site

            LIFTING LUGS

            • certified crane lifting lugs have been incorporated to facilitate crane offloading and positioning on site.  The lifting lugs are NOT certified to lift the tank with fuel.

            HOSE OUTLET

            • letterbox style secure weatherproof hose inlet / outlet assembly

            PAINT

            • Paint Colour RAL9003 Signal White / Tanks are sandblasted to SA2 Standard. Hempel Marine Paint 3 Stage process. Primer Hempadur 1530. 2nd Coat Hempadur Hi-Build 4520. Final Coat Hempathane Enamel 55100 Finished dry film thickness no less than 180 um.
