DONALDSON Filtration Accessory Blanking Cap
SKU 1KDFF1005
$295.00
ex GST · $324.50 inc GST
Prices shown ex GST.
Shipping calculated at checkout.
Quantity
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details

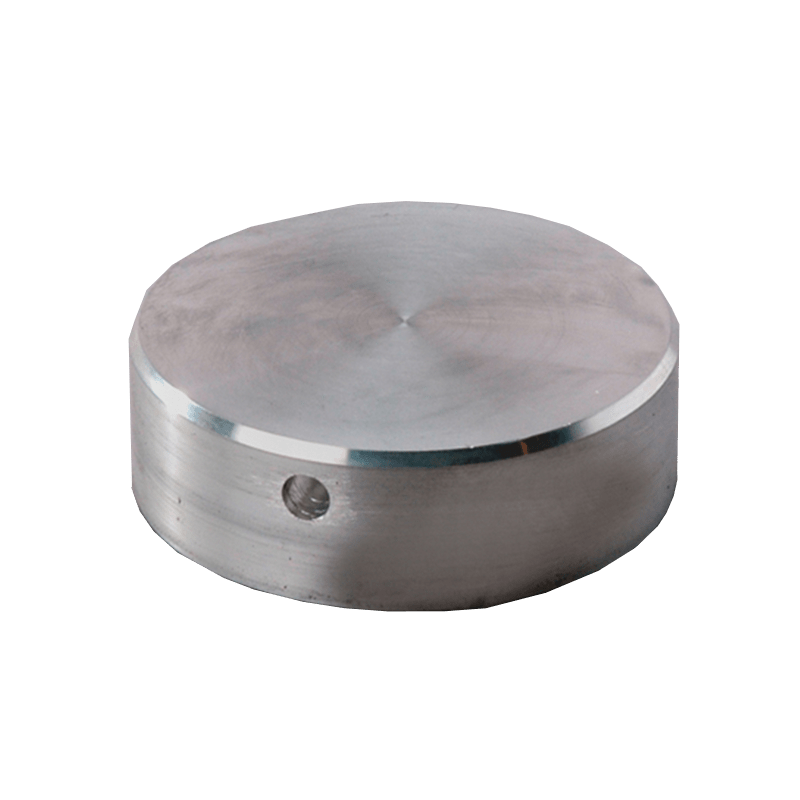

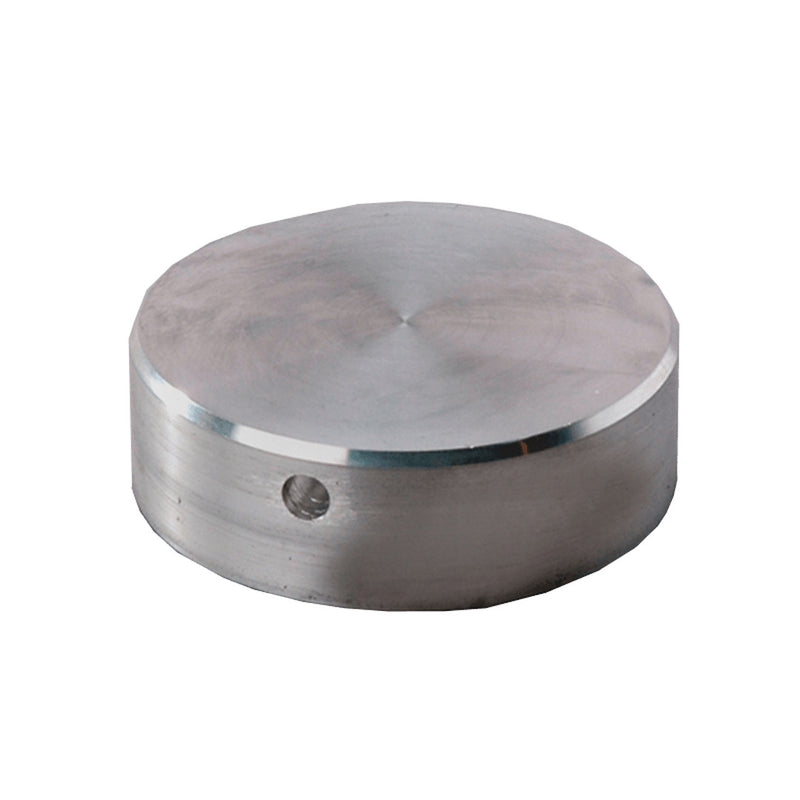

The Donaldson 1KDFF1005 Blanking Cap can be used with the Donaldson DFF1012 Filter Head Assembly. The Donaldson DFF1012 can utilise blanking caps on one or two sides for installation in tight locations, or for mounting against bulk heads.
Features
- Blanks A Port: Closes off an unused element port on the DFF1012 filter head, so a bank can run below its full element count.
- Tight Installations: One or two caps per head let the assembly go into tight locations or mount against a bulkhead.
- Standard Thread: The 1 3/4-12 UN thread matches the element ports it replaces, so nothing else changes.
- Compact Body: 95 mm across and 30 mm long, so it adds almost no height to the head.
- Staged Capacity: Lets a head be bought at full size and filled out with elements as throughput grows.
Specifications
| SUITS | DFF1012 filter head assembly, one or two per head |
|---|---|
| THREAD SIZE | 1 3/4-12 UN |
| OUTER DIAMETER | 95 MM | 3.74 IN |
| LENGTH | 30 MM | 1.18 IN |
| COUNTRY OF ORIGIN | South Africa |
