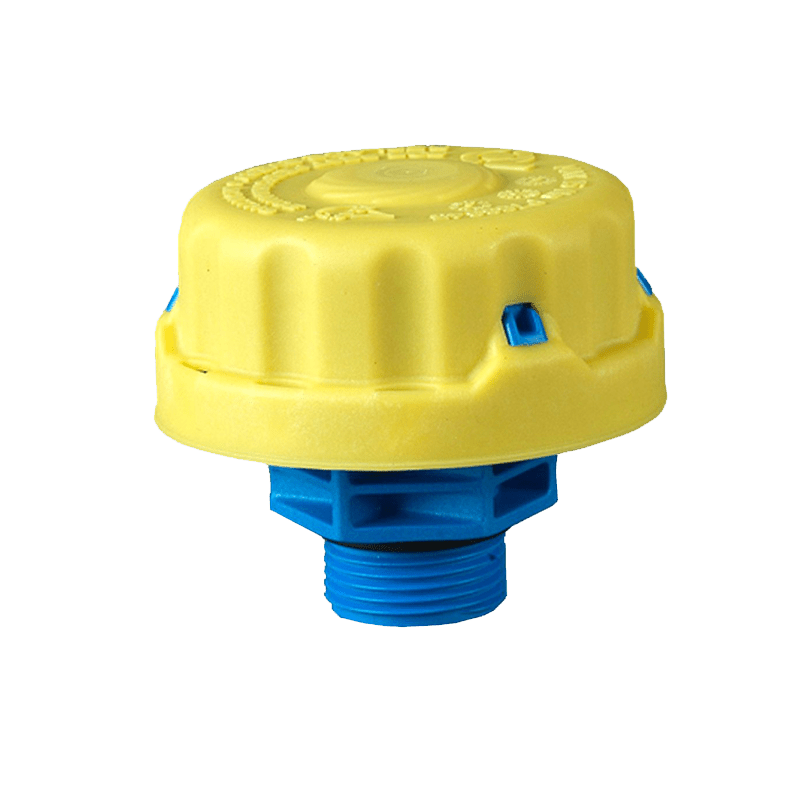

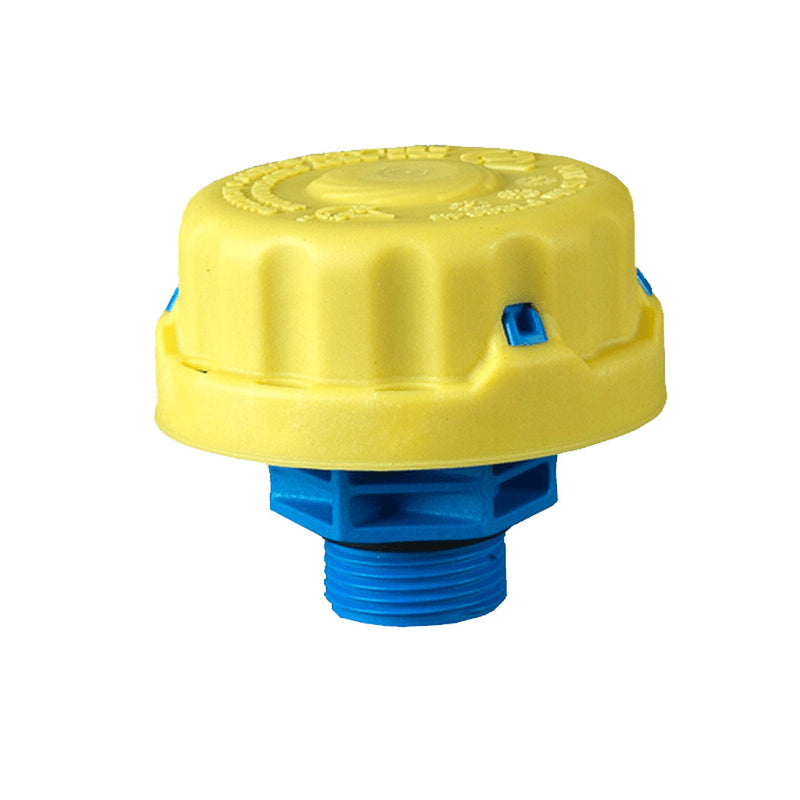

The Donaldson P766645 DN20 (3/4") BSP TRAP breather is designed for mobile applications, for installation on hydraulic, lubricant and fuel tanks. It has an anti-splash feature that ensures fluid is not lost from the turbulence created when fluid is being transported. Donaldson T.R.A.P. breathers strip moisture vapour from intake air and expel it back to the atmosphere on the outflow cycle, continuously regenerating their water holding capacity so there is no need to change the breather due to water saturation, unlike desiccant filters. For every litre of liquid dispensed from a tank or drum, a litre of moisture and dust laden air enters the vessel, and the TRAP breather filters that air to protect the cleanliness of the stored liquid.
Features
- 10 Micron at 98%: Captures 98% of particulate at 10 micron out of the air entering the tank.
- Anti-Rollover Valve: Built around an anti-rollover valve, so a mobile tank that tips does not vent its contents through the breather.
- 3/4 BSP Connection: Threads into a 3/4 inch BSP port, 72.5 mm across and 64 mm long.
- Cellulose Media: Cellulose media suits the intermittent duty a mobile tank sees, at a lower cost per change than synthetic.
- Fit and Forget: No electrical or air connection, so it works on trailers and service bodies with nothing to power.
Included accessories
Specifications
| PRODUCT FAMILY | T.R.A.P.™ |
|---|---|
| MEDIA TYPE | Cellulose |
| EFFICIENCY AT 98% | 10 micron |
| PRIMARY APPLICATION | Anti-rollover Valve |
| THREAD SIZE | 3/4 BSP/G |
| OUTER DIAMETER | 72.5 MM | 2.85 IN |
| LENGTH | 64 MM | 2.52 IN |
| HEIGHT | 49.5 MM | 1.95 IN |
| COUNTRY OF ORIGIN | Italy |
