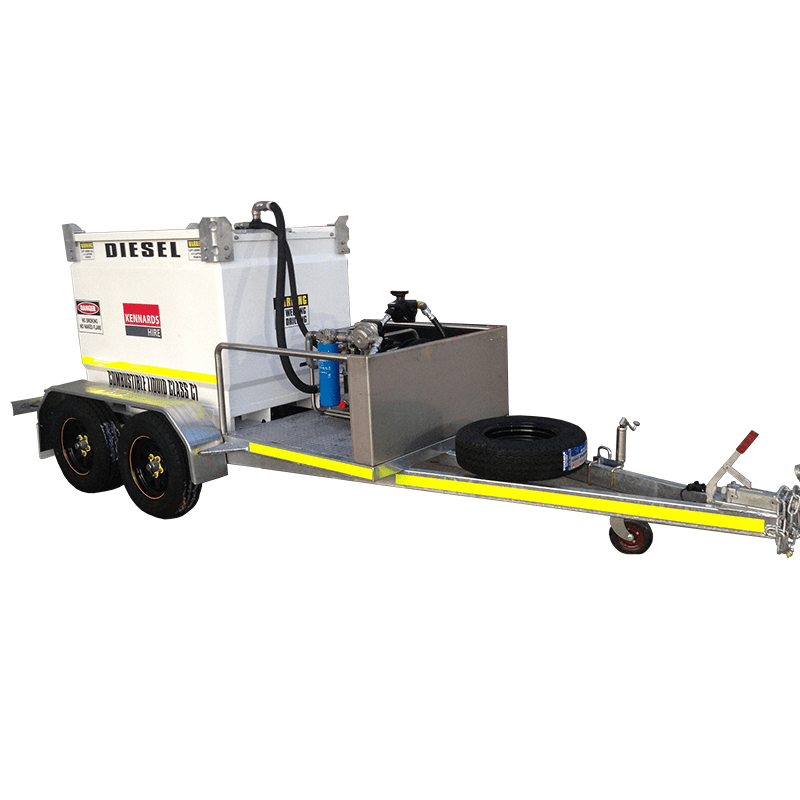

GO Fuel Trailer Self Bunded Galvanised Dual Axle 1000L
SKU SBSD1000
Tax included. Shipping calculated at checkout.
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
A cost-effective standard duty self bunded fuel trailer for the transportation and dispensing of diesel. The 1,000L SBSD1000 is designed for metropolitan and smaller construction site applications where roads are generally well maintained and conditions don't warrant the heavy duty SBHD1250 low profile model.
Designed and approved to AS1692, AS1940 and the Australian Dangerous Goods Code. More than 10 years of proven service in the field.
Features
Features
Separate Tank and Chassis Design
Fully Baffled Tank
110% Self Bunded Tank in Tank Design
Hot Dip Galvanised Chassis
Mechanical Override Braking
Drawbar Pump Mount
Tow and Leave Configuration
Security and Contents Management
Included accessories
Specifications
| CAPACITY (L) | 1,000 |
|---|---|
| FLUIDS | Diesel |
| DIMENSIONS (MM) | 4,382 L x 1,810 W x 1,450 H |
| TARE WEIGHT (KG) | 990 |
| BRAKES | Mechanical override (no in-cab controller) |
| AXLES | Dual axle, roller / rocker suspension |
| CHASSIS | Hot dip galvanised steel |
| PUMP MOUNT | Drawbar pad with 316 SS protection frame |
| TOW AND LEAVE | 3 x suction (foot valves) + 3 x return |
| FILL POINT | Bunded, anti-static fill tube, removable inspection hatch |
| HITCH | 50mm Ball (Tregg / Pintle available) |
| LIGHTING | LED multi-volt 12-24V (ADR compliant) |
| TYRES | 195/15 LT, 5-stud Sunraysia rims, spare on dedicated mount |
| APPROVALS | AS1692, AS1940, ADG Code |
Data Sheets
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
FAQs
Common questions.
What is the SBSD1000 best suited for?
Metropolitan and smaller construction site applications where roads are generally well maintained. For rougher off-road or primary site use, the heavy duty SBHD1250 low profile model is the better choice.
What braking system does the SBSD1000 use?
Mechanical override brakes, no in-cab controller required. When the tow vehicle brakes, a mechanical system applies the trailer brakes proportionally. The trailer can be towed by any suitably rated vehicle.
Can I fill the trailer directly from a tanker?
Yes. The bunded fill point on top of the tank accepts a standard tanker hose connection, with an anti-static fill tube and removable inspection hatch. The bunded surround captures any spills during filling per AS1940 requirements.
What dispensing options can I mount?
Common options include a 12V solar dispensing package or an electric-start diesel-driven pump kit. The drawbar mounting pad has a 316 stainless steel protection frame. Talk to us about matching the kit to your flow rate.
Can I couple the trailer to a generator or lighting tower?
Yes. Three suction connection points (with foot valves to retain prime) and three return points are located at the rear for quick connection to stationary diesel engines: generators, lighting towers, compressors, pumps.
How is fuel theft prevented?
The self bunded tank module is lockable. A calibrated aluminium dipstick monitors contents, with an optional mechanical dial-type level indicator available.
What is the tare weight?
990 kg. Gross weight fully loaded with diesel is approximately 1,840 kg. Confirm your tow vehicle's GVM and rating before ordering.
What safety equipment do I need to carry?
Minimum 4.5 kg dry chemical fire extinguisher must travel with the trailer. Display correct Hazchem and dangerous goods placards during road transport per ADG Code requirements.
