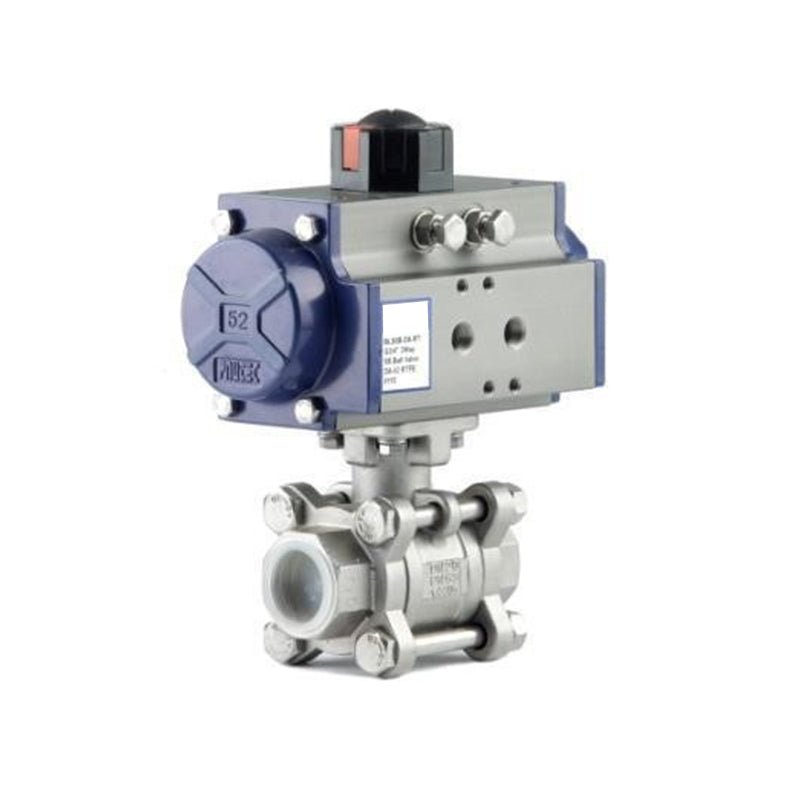

GO Ball Valves Actuated Double Acting Pneumatic 316 Stainless 3 Piece Full Bore BLSDA
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
High performance 3 piece full bore 316 Stainless Steel ball valve with BSP threaded connections and a double acting pneumatic actuator. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Pre drilled metric hole on ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Anodised aluminium spring return pneumatic actuator which allows a fail safe position if air is lost.
Specifications
316 S.S 2 way, 3 piece ball valve, with double acting actuator. RTFE seat, FKM seals, live loaded packing. Vacuum-68 BAR pressure range, media temp -20°C to 180°C. Anodised & coated aluminium double acting pneumatic actuator
| Model | Size (BSP) | DN (mm) | Actuator | Media Pressure | Media Temperature | Actuator Pressure |
|---|---|---|---|---|---|---|
| BLS2B-DA-RT | 1/4 | 8 | DA50 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS3B-DA-RT | 3/8 | 10 | DA50 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS4B-DA-RT | 1/2 | 15 | DA50 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS5B-DA-RT | 3/4 | 20 | DA50 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS6B-DA-RT | 1 | 25 | DA50 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS7B-DA-RT | 1 ¼ | 32 | DA63 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS8B-DA-RT | 1 ½ | 40 | DA63 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS9B-DA-RT | 2 | 50 | DA75 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS10B-DA-RT | 2 ½ | 65 | DA88 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS11B-DA-RT | 3 | 80 | DA100 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS12B-DA-RT | 4 | 100 | DA115 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
