GO Ball Valves Actuated Double Acting Pneumatic Nickel Plated Brass BLBDA
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.

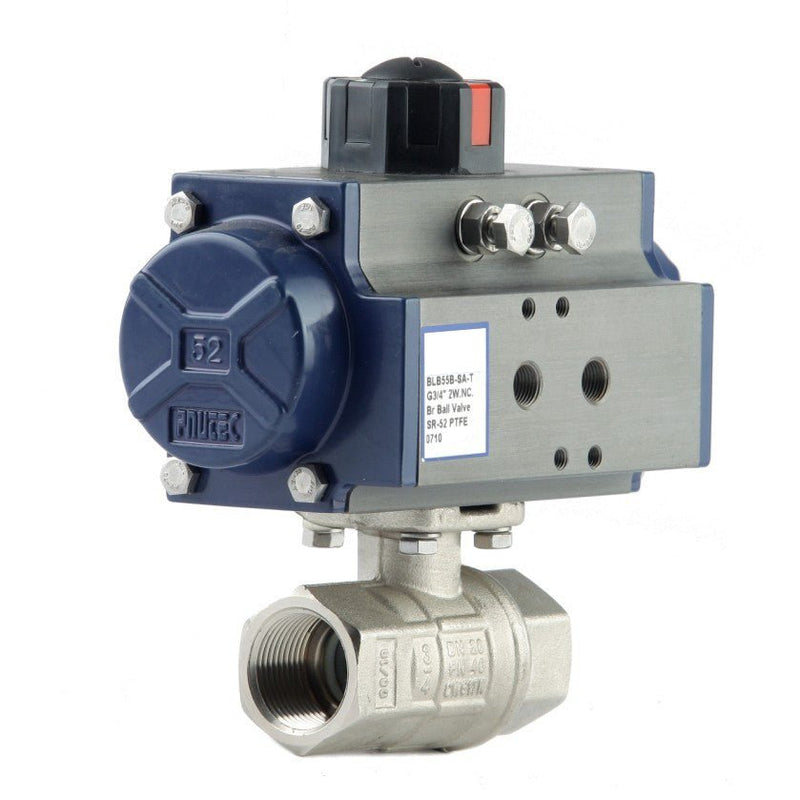

2 way 2 piece full bore nickel plated brass ball valve with BSP threaded connections with a double acting pneumatic actuator (rack and pinion). Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Pre drilled metric hole on ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. PTFE seats for temperatures up to 100°C. Anodised aluminium double acting pneumatic actuator.
Specifications
Nickel Plated Brass 2 way, 2 piece ball valve, with double acting actuator. PTFE seat, FKM seals, DA50.Vacuum-16 BAR pressure range, media temp -20°C to 140°C.
| Model | Size(BSP) | Orifice Size (mm) | Actuator | Media Pressure | Media Temperature | Actuator Pressure |
|---|---|---|---|---|---|---|
| BLB5B-DA-T | 3/4 | 20 | DA50 | Vacuum to 16 BAR | -20°C to 120°C | 6 to 8 BAR |
| BLB6B-DA-T | 1 | 25 | DA50 | Vacuum to 16 BAR | -20°C to 120°C | 6 to 8 BAR |
| BLB8B-DA-T | 1 ½ | 40 | DA63 | Vacuum to 16 BAR | -20°C to 120°C | 6 to 8 BAR |
