GO Ball Valves Actuated Double Acting Pneumatic PVC BLPDA
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts

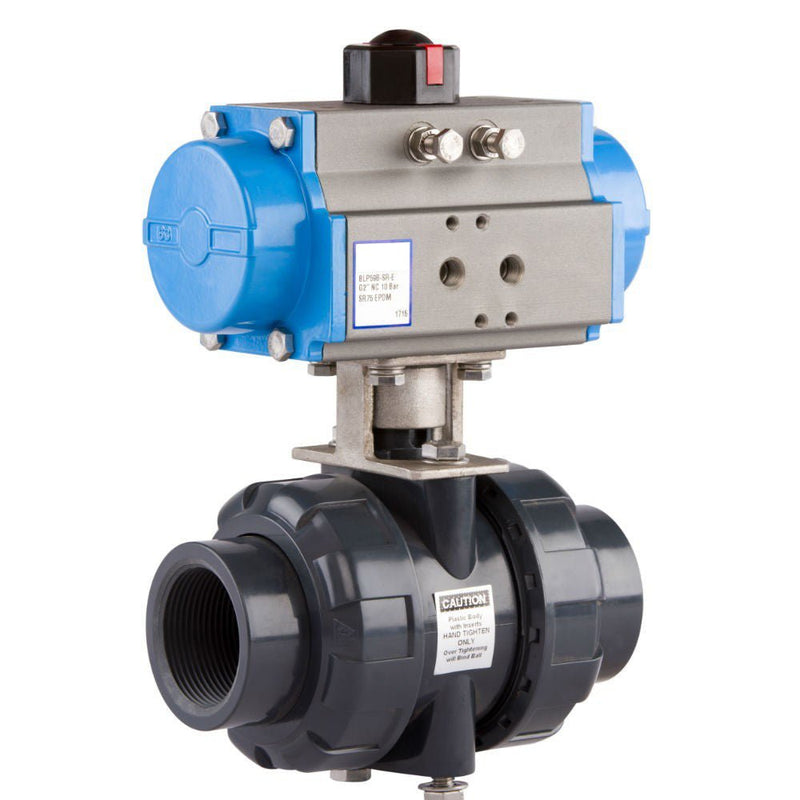

A 2 way UV stabilised PVC ball valve with a double acting pneumatic actuator. It comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton). Great for corrosive or chemical media where traditional materials such as brass and stainless steel are not suitable. The anodised aluminium actuator has a visual indicator. Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration. Available in BSP threaded and solvent weld ends (ANSI standard designed to fit Schedule 40 and 80 pipe).
Included accessories
Specifications
| Model | Size (BSP) | Orifice Size (mm) | Actuator | Media Pressure | Media Temperature | Actuator Pressure |
|---|---|---|---|---|---|---|
| BLP4B-DA-E | 1/2 | 15 | DA50 | Vacuum to 10 BAR | Ambient | 6 to 8 BAR |
| BLP5B-DA-E | 3/4 | 20 | DA50 | Vacuum to 10 BAR | Ambient | 6 to 8 BAR |
| BLP6B-DA-E | 1 | 25 | DA50 | Vacuum to 10 BAR | Ambient | 6 to 8 BAR |
| BLP7B-DA-E | 1 ¼ | 32 | DA63 | Vacuum to 10 BAR | Ambient | 6 to 8 BAR |
| BLP8B-DA-E | 1 ½ | 40 | DA63 | Vacuum to 10 BAR | Ambient | 6 to 8 BAR |
| BLP9B-DA-E | 2 | 50 | DA63 | Vacuum to 10 BAR | Ambient | 6 to 8 BAR |
| BLP10B-DA-E | 2 ½ | 65 | DA75 | Vacuum to 10 BAR | Ambient | 6 to 8 BAR |
| BLP11B-DA-E | 3 | 80 | DA75 | Vacuum to 10 BAR | Ambient | 6 to 8 BAR |
| BLP12B-DA-E | 4 | 100 | DA75 | Vacuum to 10 BAR | Ambient | 6 to 8 BAR |
