GO Ball Valves Manual Flanged ANSI 150# Full Bore Fire Safe - GO Industrial - BLSF4FA - L

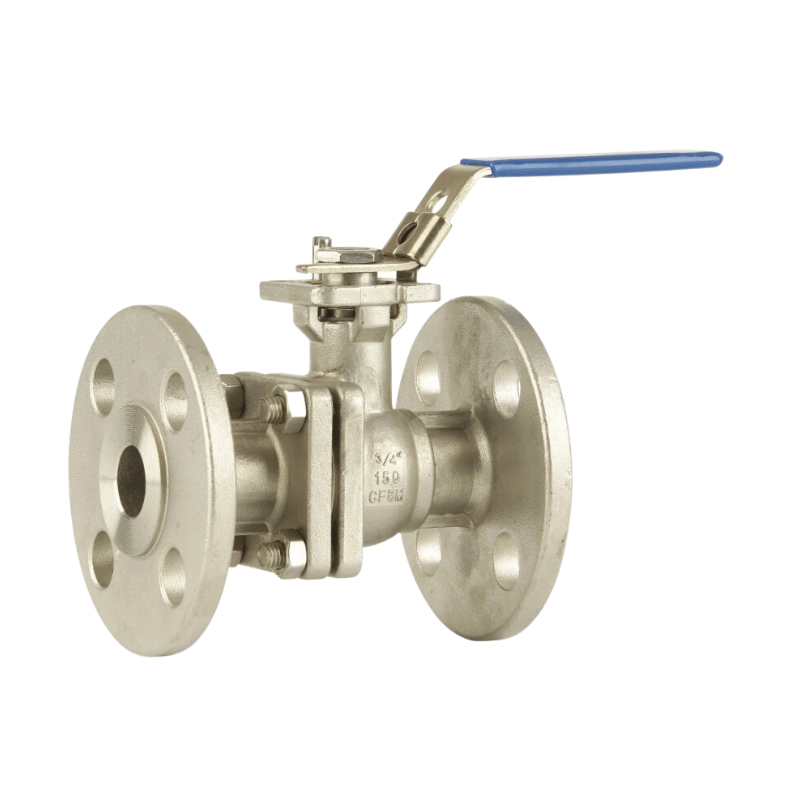

GO Ball Valves Manual Flanged ANSI 150# Full Bore Fire Safe

SKU BLCF5FA-L
Afterpay Zip PayPal LeaseGO
$105.00
Tax included. Shipping calculated at checkout.
Size
Body Material
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

    Two piece two way ANSI 150 lb flanged fire safe approved ball valve, lockable lever operation. 316 Stainless Steel or Cast Steel Body, Graphite Filled PTFE seats, FKM backing ring, live loaded packing and anti static device. Firesafe Approved API607 Sixth Edition, Cert. No 218781. ISO5211 Mounting Pad allowing direct coupling of actuation. Great for fuel applications, pipelines, water treatment and general industry.

    Specifications

    BLSF SS316 Range

    Model Size (mm) Media Pressure Media Temperature
    BLSF4FA-L-RT 15 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLSF5FA-L-RT 20 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLSF6FA-L-RT 25 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLSF7FA-L-RT 32 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLSF8FA-L-RT 40 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLSF9FA-L-RT 50 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLSF10FA-L-RT 63 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLSF11FA-L-RT 80 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLSF12FA-L-RT 100 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLSF13FA-L-RT 125 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLSF14FA-L-RT 150 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLSF15FA-L-RT 200 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLSF16FA-L-RT 250 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLSF17FA-L-RT 300 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C


    BLCF Cast Steel Range

    Model Size (mm) Media Pressure Media Temperature
    BLCF4FA-L-RT 15 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLCF5FA-L-RT 20 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLCF6FA-L-RT 25 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLCF7FA-L-RT 32 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLCF8FA-L-RT 40 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLCF9FA-L-RT 50 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLCF10FA-L-RT 63 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLCF11FA-L-RT 80 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLCF12FA-L-RT 100 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLCF13FA-L-RT 125 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLCF14FA-L-RT 150 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLCF15FA-L-RT 200 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLCF16FA-L-RT 250 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    BLCF17FA-L-RT 300 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C
    • Size 15mm to 300mm
    • Body 316 Stainless Steel or Cast Steel
    • Seat Reinforced Carbon PTFE
    • Pressure 150 pound
    • Temperature -20°C to 180°C
    • Actuation Lockable Lever
    • Fire Safe API607 6th E. Cert. No 218781
