Overview
Everything needed to connect a diesel generator to a GO BOX self bunded tank for continuous fuel supply. The kit is factory assembled and tested on a GO BOX tank before dispatch, so it arrives ready to run.
Two 10 metre Alfagomma hoses carry diesel between the tank and the generator, one for supply and one for return. A 316 stainless steel suction spear with a foot valve draws clean fuel from above the tank floor and holds prime on the line, while a matching stainless return carries unused fuel back to the tank. Every connection uses 1/2" ISO 7241-A dry break couplings, so the generator can be connected or isolated in seconds with minimal fuel loss.

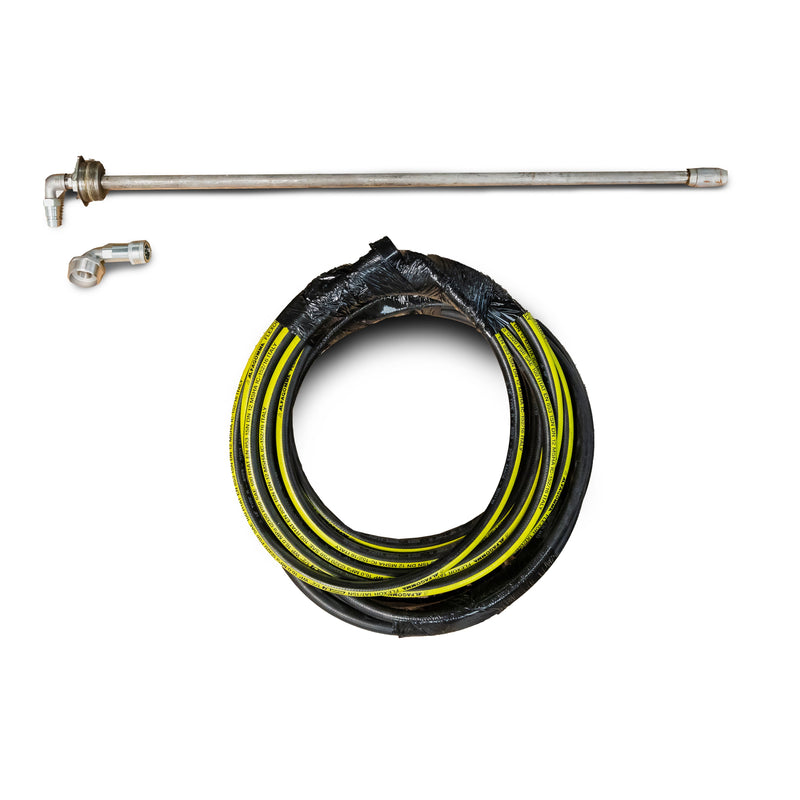

Kit contents
- 2 x Alfagomma 12.7mm (1/2") ID x 10m fuel suction and delivery hose, 1/2" male BSP ends
- 1 x 316 stainless steel suction spear with foot valve, terminating in a 1/2" 316 stainless 90 degree male elbow, tank mounted
- 1 x 316 stainless steel return assembly with a 1/2" 316 stainless 90 degree male elbow, tank mounted
- 3 x quick release coupling, 1/2" ISO 7241-A female BSP
- 3 x quick release coupling, 1/2" ISO 7241-A male BSP
- Factory mechanical fitting, testing and consumables allowance
The three male and three female couplings pair so each hose end and the tank connections mate correctly, and either hose can run as supply or return.
Pairs with the GO BOX self bunded tank range. For sizing help or a matched tank and kit package, call our team on 07 3204 2240 or email sales@goind.com.au.
Features
Dry break couplings: 1/2" ISO 7241-A quick release fittings connect or isolate the generator in seconds with minimal fuel loss.
Stainless steel wetted parts: the 316 stainless suction spear, foot valve and return resist corrosion and keep the fuel path clean.
Foot valve: holds prime on the suction line and draws fuel from above the tank floor, away from water and sediment.
10 metre reach: two 10m hoses give flexible placement of the generator relative to the tank.
Factory assembled and tested: fitted and checked on a GO BOX tank before dispatch.
Proven in the field: the standard fuel connection kit for generator dealers and hire fleets running GO BOX tanks.
Included accessories
Specifications
| Application | Diesel generator fuel supply and return |
|---|---|
| Suits | GO BOX self bunded tanks |
| Hose | Alfagomma 12.7mm (1/2") ID, 10m length |
| Hose quantity | 2 (supply and return) |
| Hose standard | EN 853 1SN, SAE 100 R1AT |
| Hose working pressure | 16 MPa (2320 psi) |
| Hose end fittings | 1/2" male BSP |
| Couplings | 1/2" ISO 7241-A dry break, 3 male and 3 female |
| Suction spear | 316 stainless steel with foot valve |
| Return | 316 stainless steel |
| Wetted metal parts | 316 stainless steel |
| Assembly | Factory fitted and tested |
