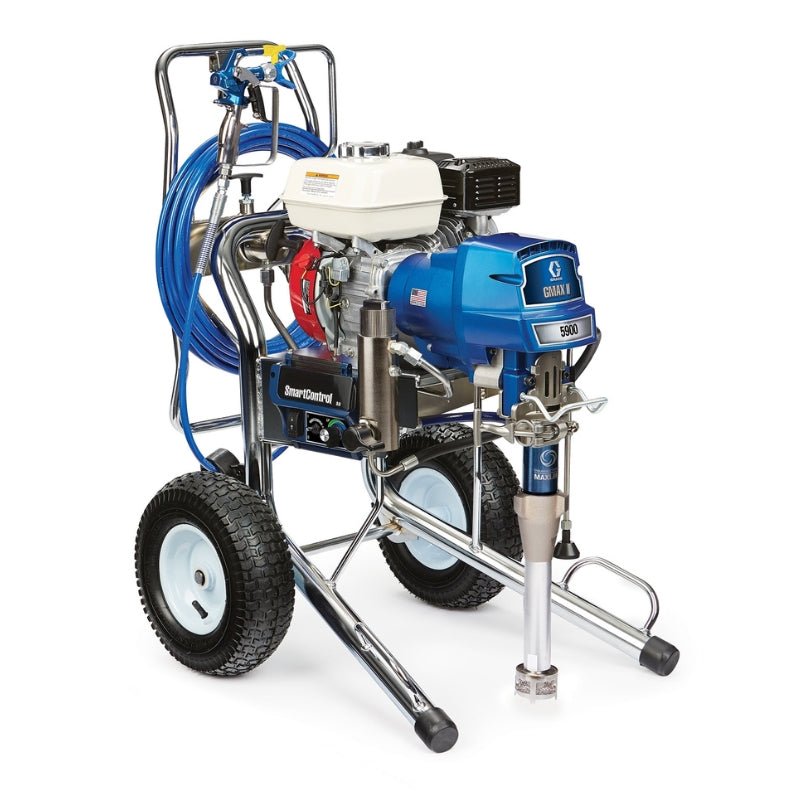

GRACO GMAX II 5900 ProContractor Series Gas Airless Sprayer
SKU 17E832
$12,475.00
$14,700.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
With a 200cc Honda engine and the ability to spray up to 1.6 gallons per minute (6.1 liters per minute), the GMAX II 5900 is the industry standard for the professional contractor who sprays a wide variety of coatings on residential, commercial and industrial jobs.
Features
Features
Endurance Vortex MaxLife Piston Pump
- Superior pump life
- Breakthrough vortex rotating rod technology
- Repack the pump in minutes with the new QuikPak Cartridge System
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages for high velocity flow to rotate piston for even wear
- Repack pump in minutes with new QuikPak cartridge repair system
ProConnect 2 Pump Replacement System
- Pump swaps in 1-minute or less – no tools, pins or parts to lose
- Eliminate costly downtime
QuikReel Hose Management System
- Easy hose management
- Deploy and rewind up to 300 feet (90 meters) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
Crushproof Inlet Strainer
- Durable filtration
- Stands up to harsh impacts to maintain even flow through filter
SmartControl 3.0
- Consistent spray fan & pressure control
- Handles the widest range of coatings with the most consistent fan pattern
- Lowest dead band at any pressure
WatchDog Pump Protection System
- Automatically prevents pump damage if material supply is too low
Precision Advantage Drive
- The longest lasting drive
- Improved jobsite conditions with extremely quiet operation
- Lifetime Warranty
Honda® Engine
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Contractor Preferred
Contractor PC Spray Gun
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
Additional Features:
- Easy Out Pump Filter
- Heavy-Duty Prime Valve
- LED Display
- Rugged, Durable Cart Design
Specifications
| COMPATIBLE MATERIAL | Stains, Oil, Lacquer, Primers, Fillers, Acrylics, Interior Emulsions, Exterior Emulsions, Latex, Anti-Corrosive Paints |
|---|---|
| COMPATIBLE REPLACEMENT PUMP | 17H824 |
| CONVERTIBLE | Non-Convertible |
| ENGINE BRAND | Honda |
| ENGINE SIZE (HP) | 6.5 |
| FEATURES | Endurance Vortex MaxLife Pump, SmartControl 3.0, QuikReel, Honda Engine, Advantage Drive, ProConnect 2, Easy Out Filter, Crushproof Inlet Strainer, Heavy-Duty Prime Valve, WatchDog, LED Display, Contractor PC Gun |
| FLUID INLET SIZE (IN) | 1-5/16 |
| FLUID INLET SIZE (MM) | 33.34 |
| FLUID INLET THREAD TYPE | UN-2A |
| FLUID OUTLET SIZE (IN) | 1/4 |
| FLUID OUTLET SIZE (MM) | 6.35 |
| FLUID OUTLET THREAD TYPE | NPSM |
| FRAME CONFIGURATION | Hi-Boy |
| HOSE INLET DIAMETER (CM) | 0.635 |
| HOSE INLET DIAMETER (IN) | 1/4 |
| HOSE INLET DIAMETER (MM) | 6.35 |
| HOSE REEL TYPE | QuikReel |
| INCLUDES | Contractor PC 喷枪, Contractor PC ガン, Contractor PC Gun, Pistola PC de contratista, Contractor PC 건, RAC X LTX 517 喷嘴, RAC X LTX 517 スプレーチップ, RAC X LP 517 Spray Tip, boquilla de pulverización RAC X LTX 517, RAC X LTX 517 스프레이 팁, RAC X 喷嘴座, RAC X ガード, RAC X Guard, protección RAC X, RAC X 가드, 3/8 英寸 x 50 英尺 BlueMax II 无气软管, 3/8 インチ x 50 ft BlueMax II エアレスホース, 3/8 in x 50 ft (15 m) BlueMax II Airless Hose, manguera airless BlueMax II de 3/8 pulg x 50 pies, 3/8 in x 50 ft BlueMax II 에어리스 호스, 1/4 英寸 x 3 英尺 BlueMax II 无气快接软管, 1/4 インチ x 3 ft BlueMax II エアレス手元ホース, 1/4 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, manguera flexible airless BlueMax II de 1/4 pulg x 3 pies, 1/4 in x 3 ft BlueMax II 에어리스 휩 호스, 喉部密封液 4 盎司, TSL 4 オンス, TSL 4 oz (118 ml), TSL 4 oz, TSL 4 oz |
| INLET PAINT STRAINER | 8 Mesh Stainless Steel Screen |
| MAXIMUM FLOW RATE (GPM) | 1.6 |
| MAXIMUM FLOW RATE (L/MIN) | 6.06 |
| MAXIMUM HOSE LENGTH (FT) | 150 |
| MAXIMUM HOSE LENGTH (M) | 45 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 96 |
| MAXIMUM TIP SIZE (IN) | 0.043 |
| MAXIMUM TIP SIZE GUN 1 (IN) | 0.043 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MAXIMUM WORKING PRESSURE (KPA) | 22800 |
| POWER RATING (HP) | 6.5 |
| POWER SOURCE | Gas |
| POWER RATING (KW) | 4.85 |
| POWER RATING (W) | 4847 |
| MAXIMUM WORKING PRESSURE (MPA) | 22.8 |
| PRESSURE CONTROL TYPE | SmartControl 3.0 |
| OVERALL WIDTH (MM) | 620 |
| MODEL | GMAX II |
| MAXIMUM WORKING PRESSURE (BAR) | 228 |
| OVERALL HEIGHT (CM) | 96.5 |
| OVERALL HEIGHT (IN) | 38 |
| WEIGHT (KG) | 73 |
| WEIGHT (LB) | 160 |
| OVERALL HEIGHT (MM) | 965 |
| OVERALL LENGTH (CM) | 83.1 |
| OVERALL WIDTH (IN) | 24 |
| OVERALL LENGTH (IN) | 32.7 |
| SERIES | 5900 |
| OVERALL LENGTH (MM) | 831 |
| OVERALL WIDTH (CM) | 62 |
| PUMP TYPE | Endurance Vortex |
| TYPE | Airless Sprayer |
| SPRAY GUN TYPE | Contractor PC Pro Gun |
| SPRAY TYPE | Airless |
| MAXIMUM WORKING PRESSURE (KG/CM²) | 22.7 |
| WETTED MATERIAL | Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| MAXIMUM FLUID WORKING PRESSURE (PSI) | 3300 |
| FLUID HOSE INSIDE DIAMETER (IN) | 1/4 |
| OUTLET PAINT FILTER | 60 Mesh Stainless Steel Screen |
| PUMP SLEEVE MATERIAL | MaxLife |
| PUMP MOUNT TYPE | ProConnect 2 |
| PUMP ROD TYPE | MaxLife |
| NUMBER OF GUNS | 3 |
| FILTER MESH SIZE | 60 |
| MAXIMUM TIP SIZE GUN 2 (IN) | 0.056 |
| RECOMMENDED ANNUAL USAGE | Up to 1,000 gallons per week |
| MAXIMUM TIP SIZE GUN 3 (IN) | 0.023 |
| POWER RATING (CC) | 200 |
| PRODUCT SERIES | ProContractor |
