Built for the work it does.

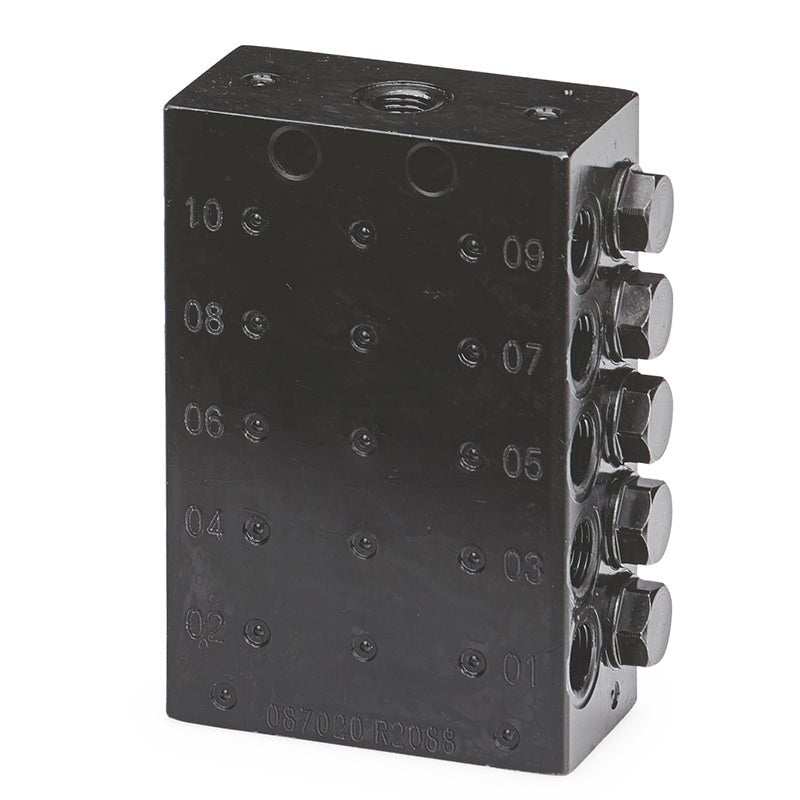

Compact Series Progressive (CSP) valve with broad market versatility. Combine with field-proven G-Series pumps for a complete system solution.

Features

1/8 inch BSPP inlet

Space efficient design with 10 outlets, without indicator

Outlets can be combined to meet larger bearing needs

Built-in durability with Zinc Iron plating to stand up to harsh environments

High output pressure - maximum working pressure of 5,076 psi (350 bar) for both oil and grease

Specifications

MINIMUM WORKING PRESSURE (BAR)	15
MAXIMUM WORKING PRESSURE (PSI)	5076
MINIMUM WORKING PRESSURE (PSI)	217.5
INLET THREAD TYPE	BSPP
INLET SIZE (IN)	1/8
NUMBER OF OUTLETS	10
MINIMUM OUTPUT VOLUME (CM³)	0.2
MAXIMUM WORKING PRESSURE (BAR)	350
MAXIMUM OPERATING TEMPERATURE (°F)	212
CYCLE INDICATOR	None
OUTLET THREAD TYPE	BSPP
OUTLET THREAD GENDER	Female
MINIMUM WORKING PRESSURE (KPA)	1500
MAXIMUM WORKING PRESSURE (KPA)	35000
MAXIMUM NLGI GRADE	#2
MATERIAL	Carbon Steel
INLET SIZE (MM)	3.175
COMPATIBLE MATERIAL	Oil, Grease
MAXIMUM OPERATING TEMPERATURE (°C)	100
INLET SIZE (CM)	0.3175
TYPE	Divider Valve
DIVIDER VALVE SERIES	CSP
APPLICATION	On-Road Vehicles, Off-Road Equipment
MODEL	Trabon
SERIES	CSP
DISCHARGE PER PISTON STROKE (IN³)	N/A
